Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifie,SGM8270-4 Replace TS914AID.
SGM8270-4
SGM8270-4.pdf
SGM8270-4.pdfFEATURES
• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1.2mV (MAX)
• Low Noise: 15nV/ Hz at 1kHz
• Gain-Bandwidth Product: 2.2MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages

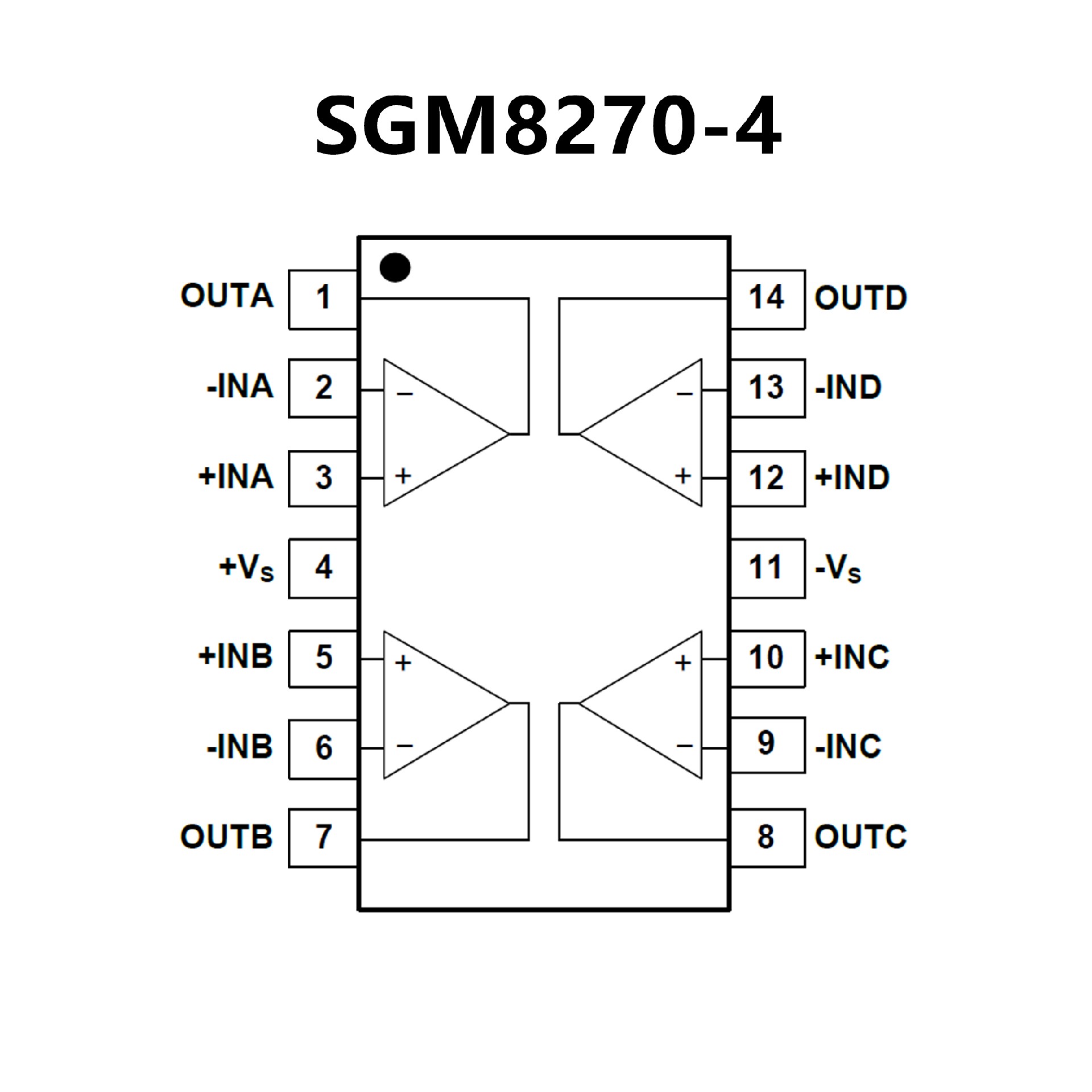

PIN CONFIGUTION
优势替代
FEATURES
• Rail-to-rail input and output voltage ranges
• Single (or dual) supply operation from 2.7 to
16 V
• Extremely low input bias current: 1 pA typical
• Low input offset voltage: 5 mV max. (A grade)
• Specified for 600 Ω and 100 Ω loads
• Low supply current: 200 μA/ampli. (VCC = 3 V)
• Latch-up immunity
• Spice macromodel included in this specification

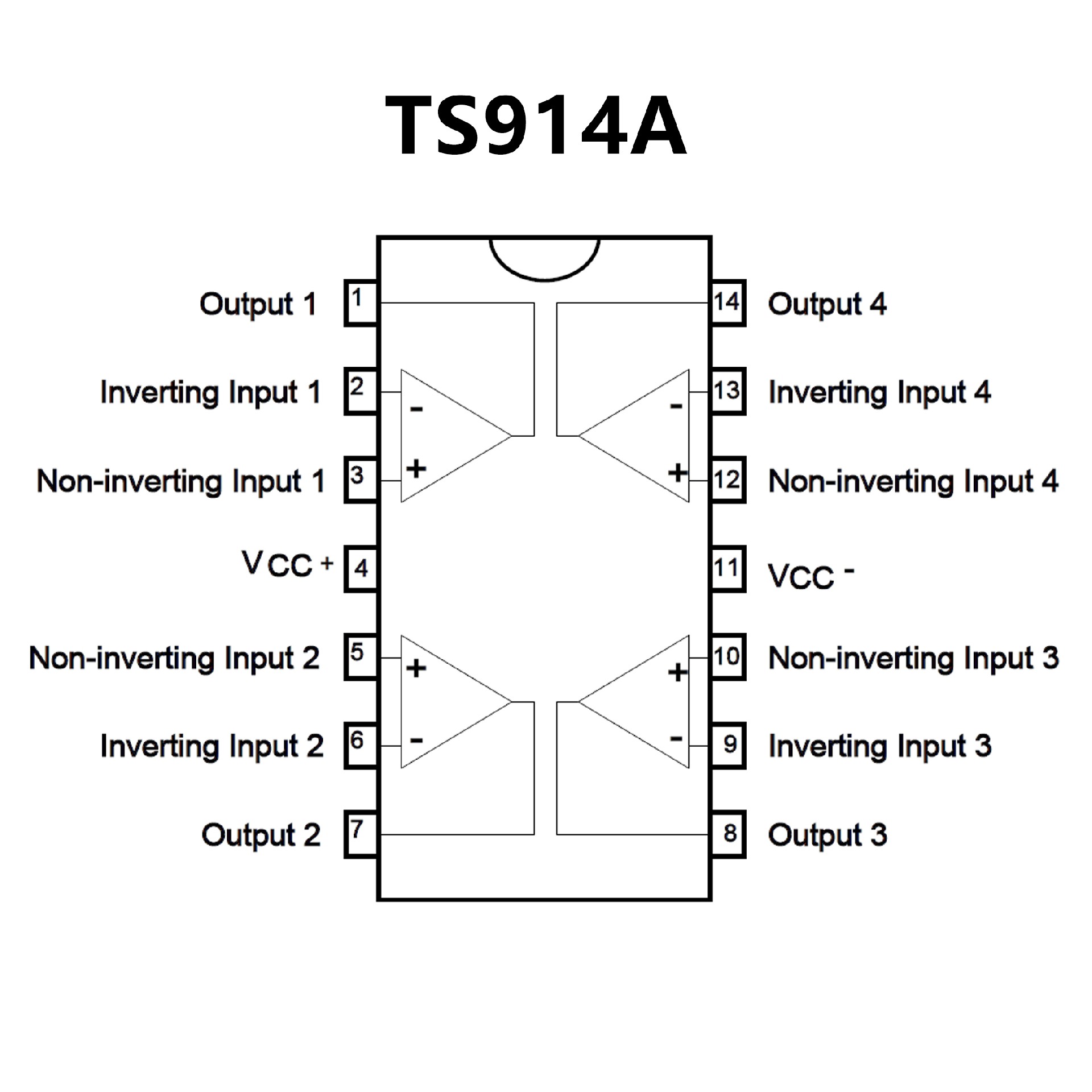

PIN CONFIGUTION
