Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-4XS14G Replace TS514AIDT.
SGM8270-4XS14G
SGM8270-4XS14G.pdf
SGM8270-4XS14G.pdfFEATURES
• Wide Input Common Mode and
Differential Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1.2mV (MAX)
• Low Noise: 15nV/Hz at 1kHz
• Gain-Bandwidth Product: 2.2MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages

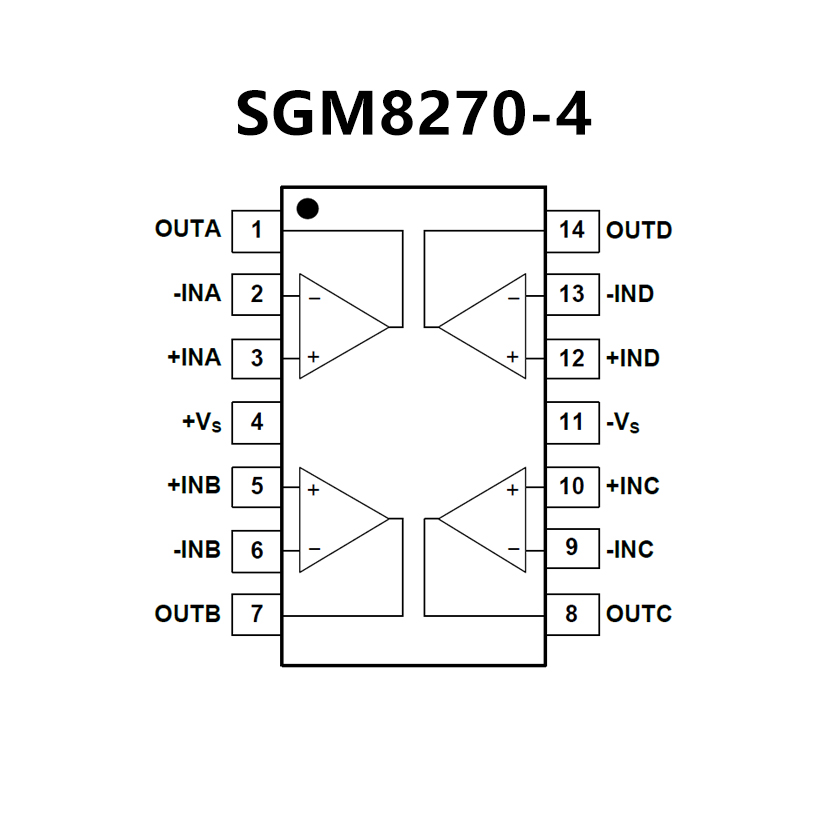

PIN CONFIGUTION
优势替代
FEATURES
• Low input offset voltage: 500 μV max.
• Low power consumption
• Short-circuit protection
• Low distortion, low noise
• High gain bandwidth product
• High channel separation
• ESD protection 2 kV

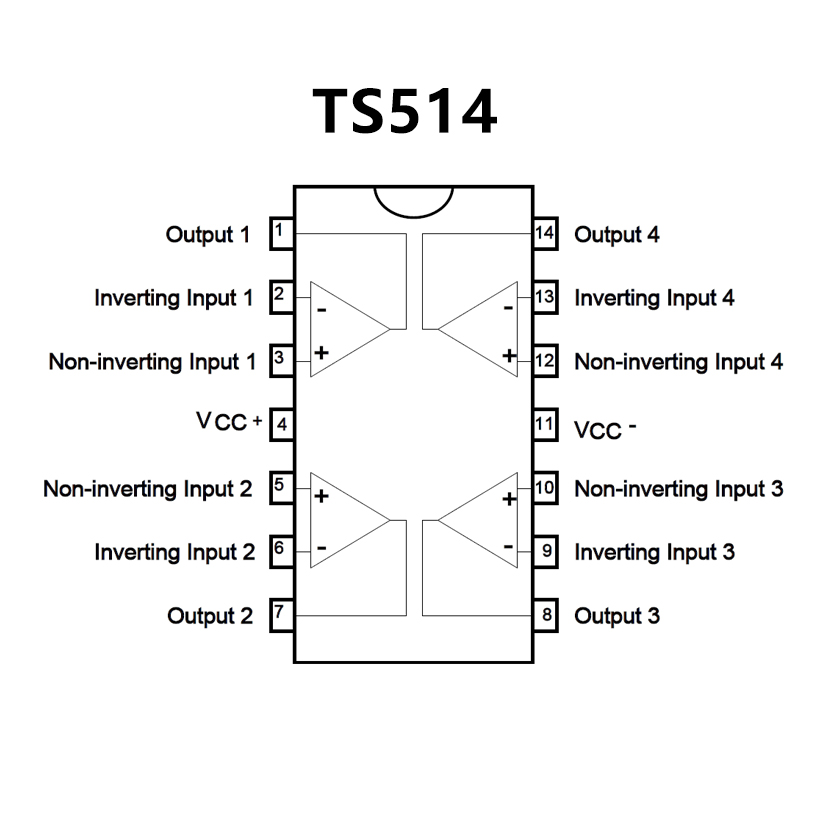

PIN CONFIGUTION
