Low Noise,Precision,High Voltage,Rail-to-Rail I/O Operational Amplifier, SGM8270-4 P2P OPA4171AIPWR.
SGM8270-4XTS14G
SGM8270-4XTS14G.pdf
SGM8270-4XTS14G.pdfFEATURES
• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1.2mV (MAX)
• Low Noise: 15nV/ Hz at 1kHz
• Gain-Bandwidth Product: 2.2MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages

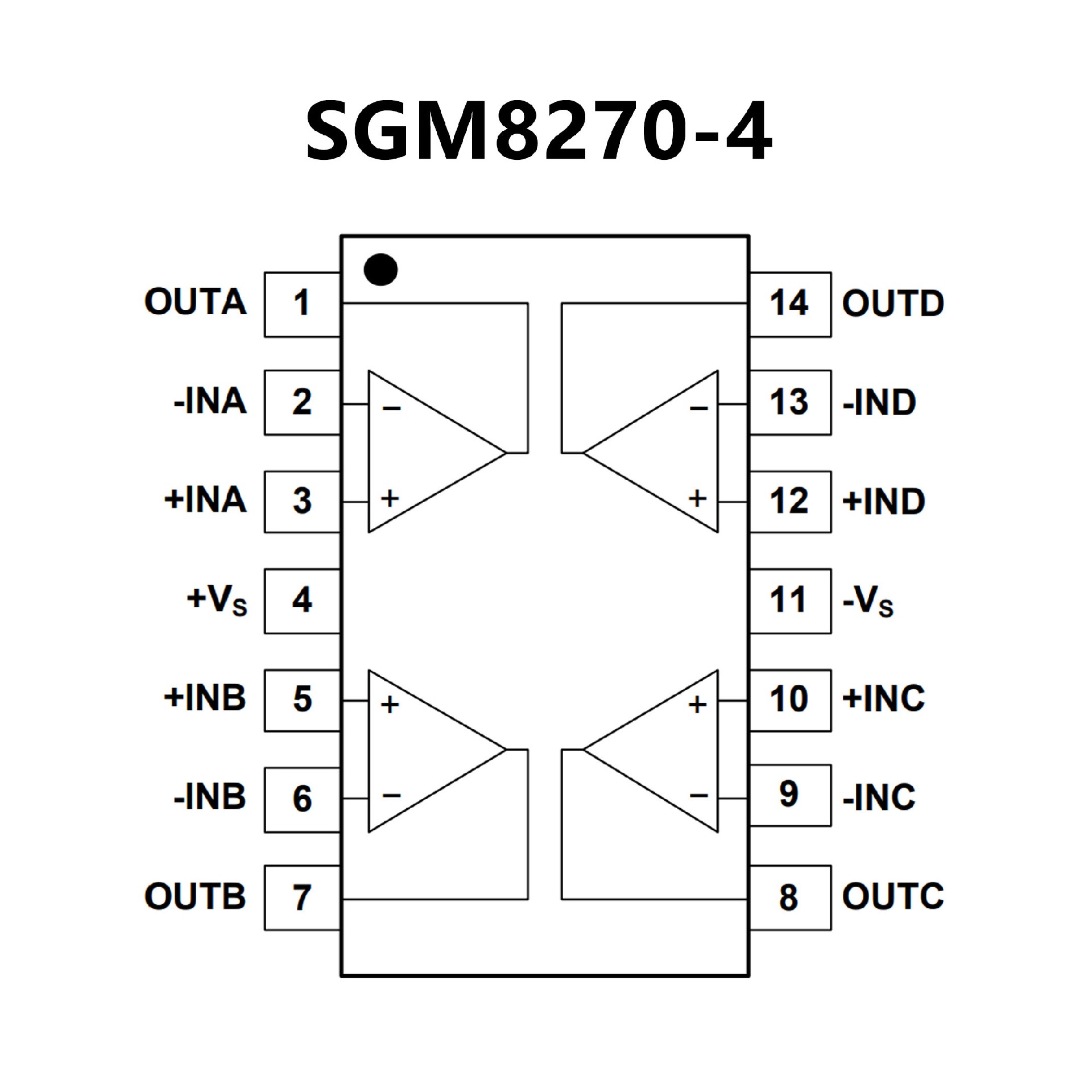

PIN CONFIGUTION
优势替代
FEATURES
• 电源范围:+2.7V 至+36V，1.35V至±18V
• 低噪声:14 nVIHz
• 低偏移漂移:0.3pVI°C(典型值)
• 已过滤的射频干扰(RFI)输入
• 输入范围包括负电源
• 输入范围运行至正电源
• 轨至轨输出
• 增益带宽:3MHz
• 低静态电流:每个放大器475uA
• 高共模抑制:120dB（典型值)
• 低输入偏压电流:8pA
• 行业标准封装:
-8引脚小外形尺寸集成电路(SOIC)封装
-8引脚微型小外形尺寸(MSOP)封装
-14引脚薄型小外形尺寸(TsSOP)封装微型封装:
- SOT553封装内为单通道-vssOP-8封装内为双通道

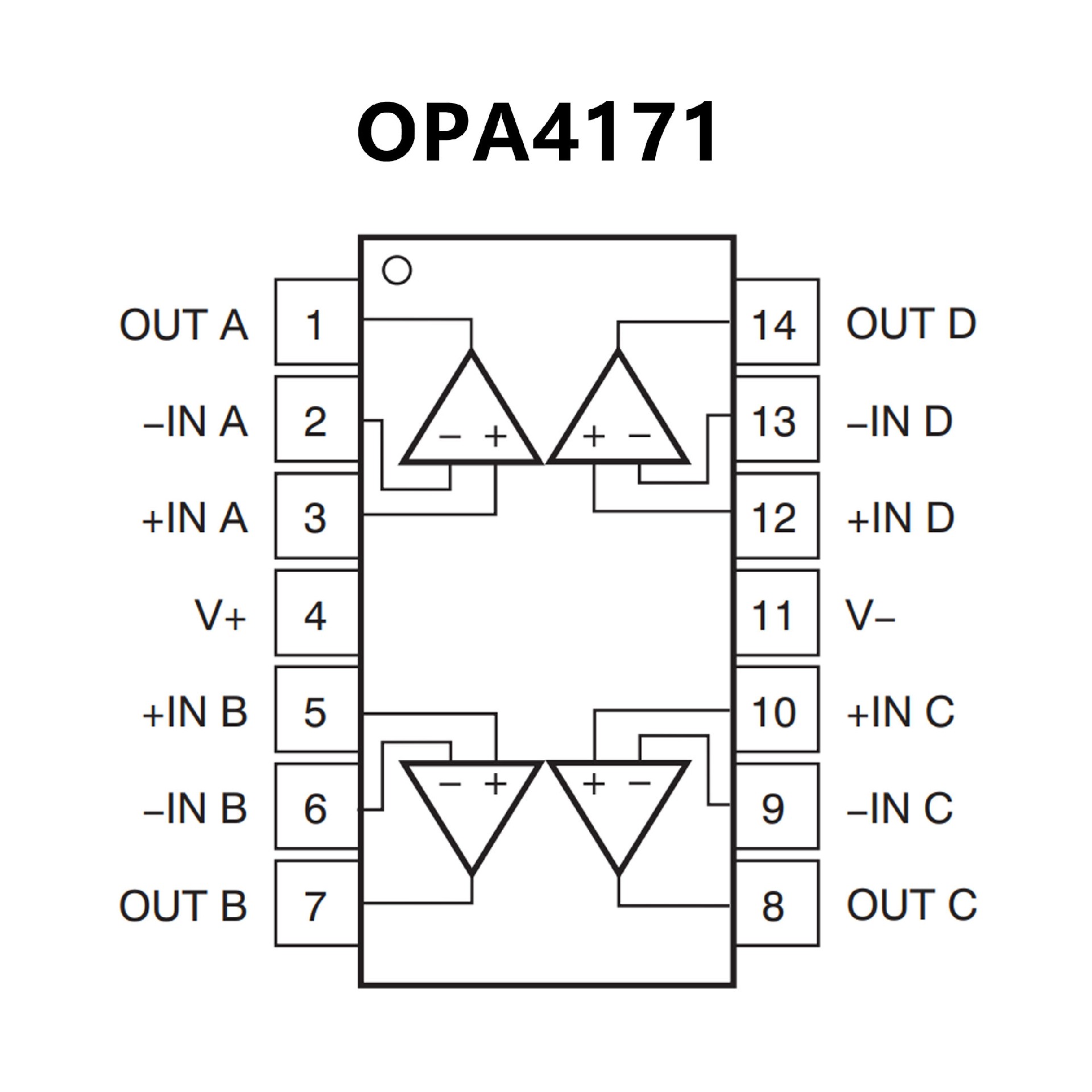

PIN CONFIGUTION
