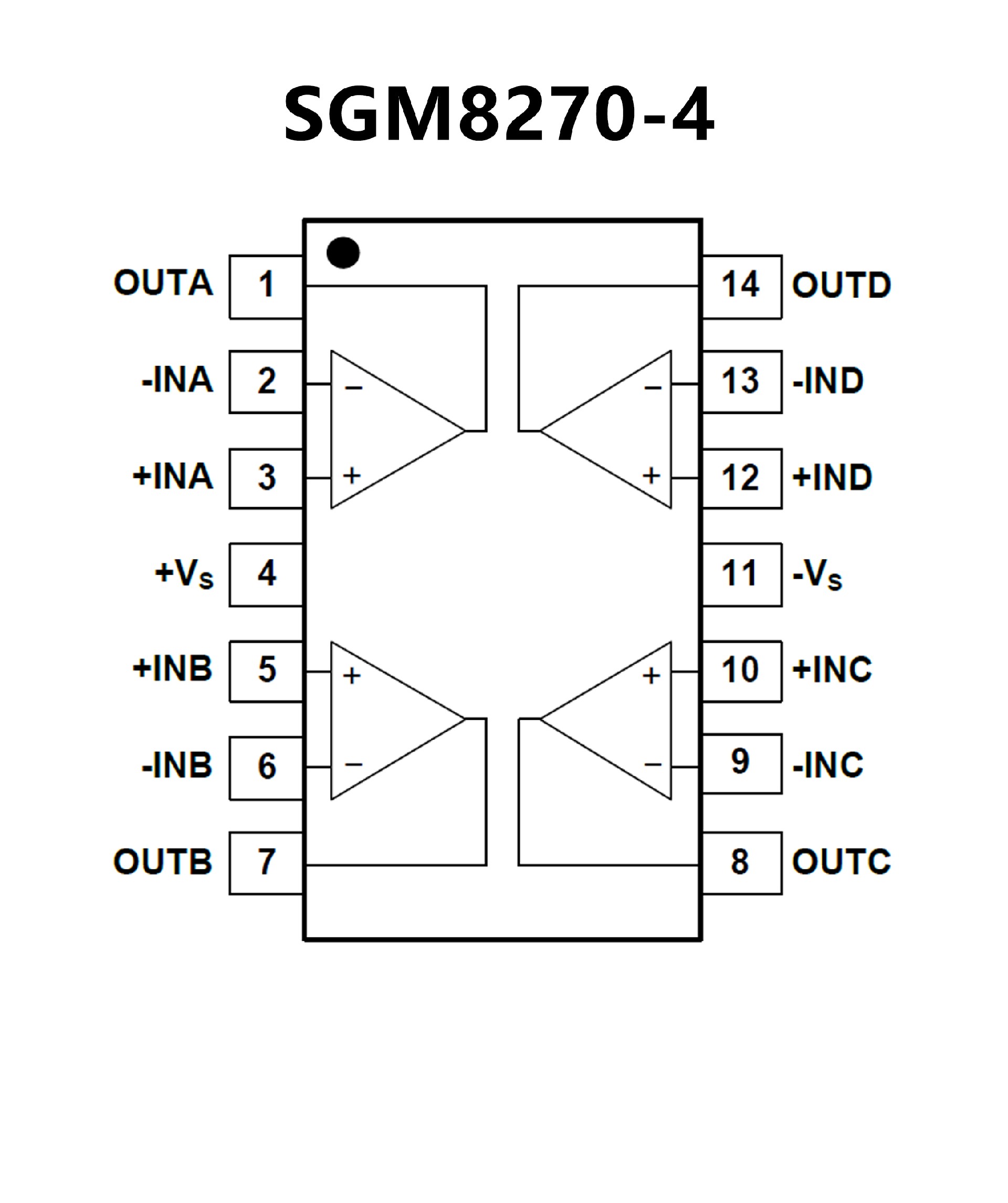

SGM8270-4XTS14G.pdf• Wide Input Common Mode and
DifferentialVoltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1.2mV (MAX)
• Low Noise: 15nV/ Hz at 1kHz
• Gain-Bandwidth Product: 2.2MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating
Temperature Range
• Available in Green SOIC-14
and TSSOP-14 Packages

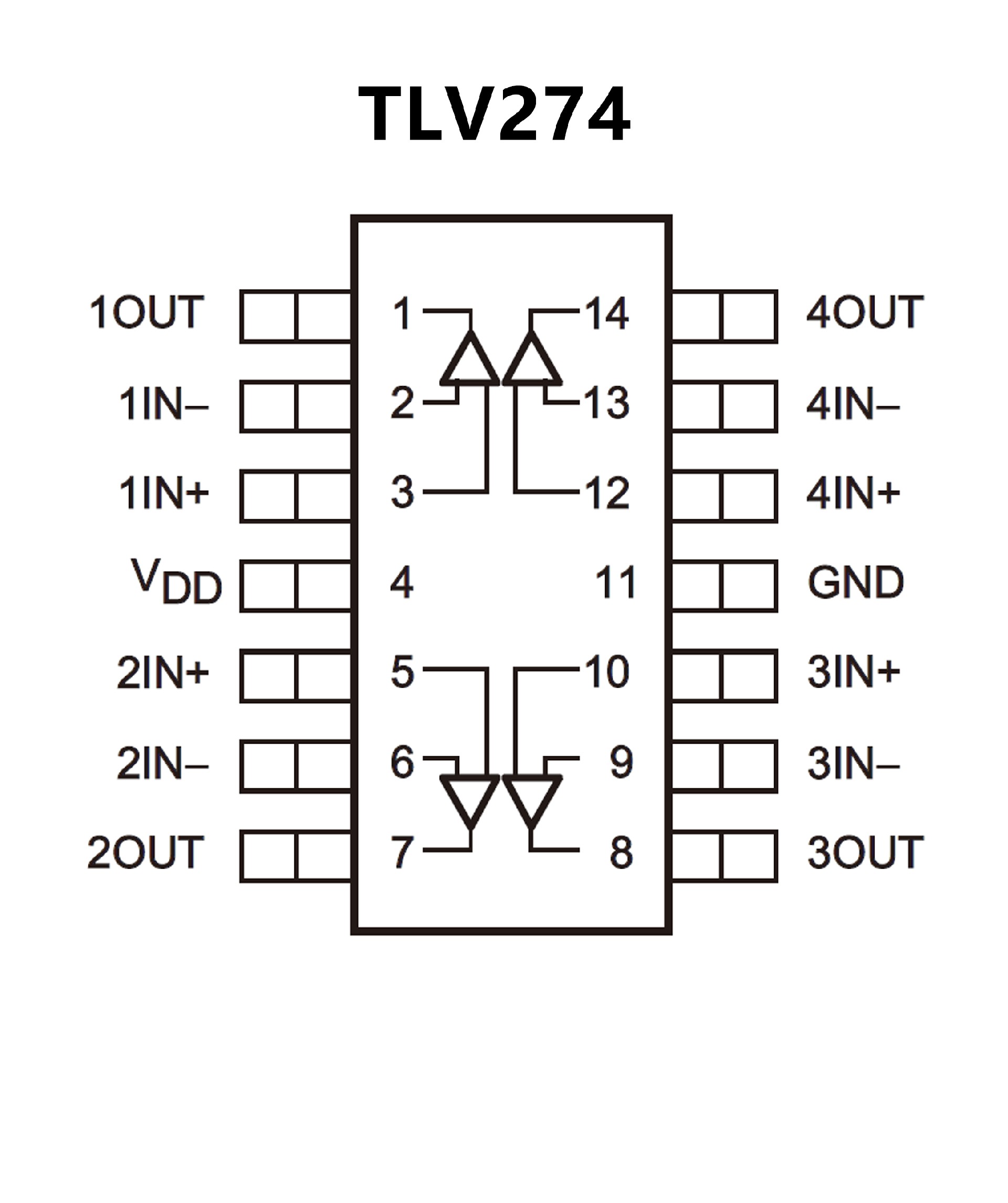

• Rail-to-Rail Output
• Wide Bandwidth: 3 MHz
• High Slew Rate: 2.4 V/µs
• Supply Voltage Range: 2.7 V to 16 V
• Supply Current: 550 µA/Channel
• Input Noise Voltage: 39 nV/√Hz
• Input Bias Current: 1 pA
• Specified Temperature Range:
– Commercial Grade: 0°C to 70°C
– Industrial Grade: −40°C to 125°C
• Ultrasmall Packaging:
– 5-Pin SOT-23 (TLV271)
– 8-Pin MSOP (TLV272)
• Ideal Upgrade for TLC72x Family
