SGM8273-1.pdf• Wide Input Common Mode
and DifferentialVoltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1mV (MAX)
• Low Noise: 9nV/ Hz at 1kHz
• Gain-Bandwidth Product: 4MHz
• High Slew Rate: 6V/µs
• Small Packaging:
SGM8273-1 Available in Green SOT-23-5,
SOIC-8and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package
• At VS = 5 V (Typical Unless Otherwise Noted)

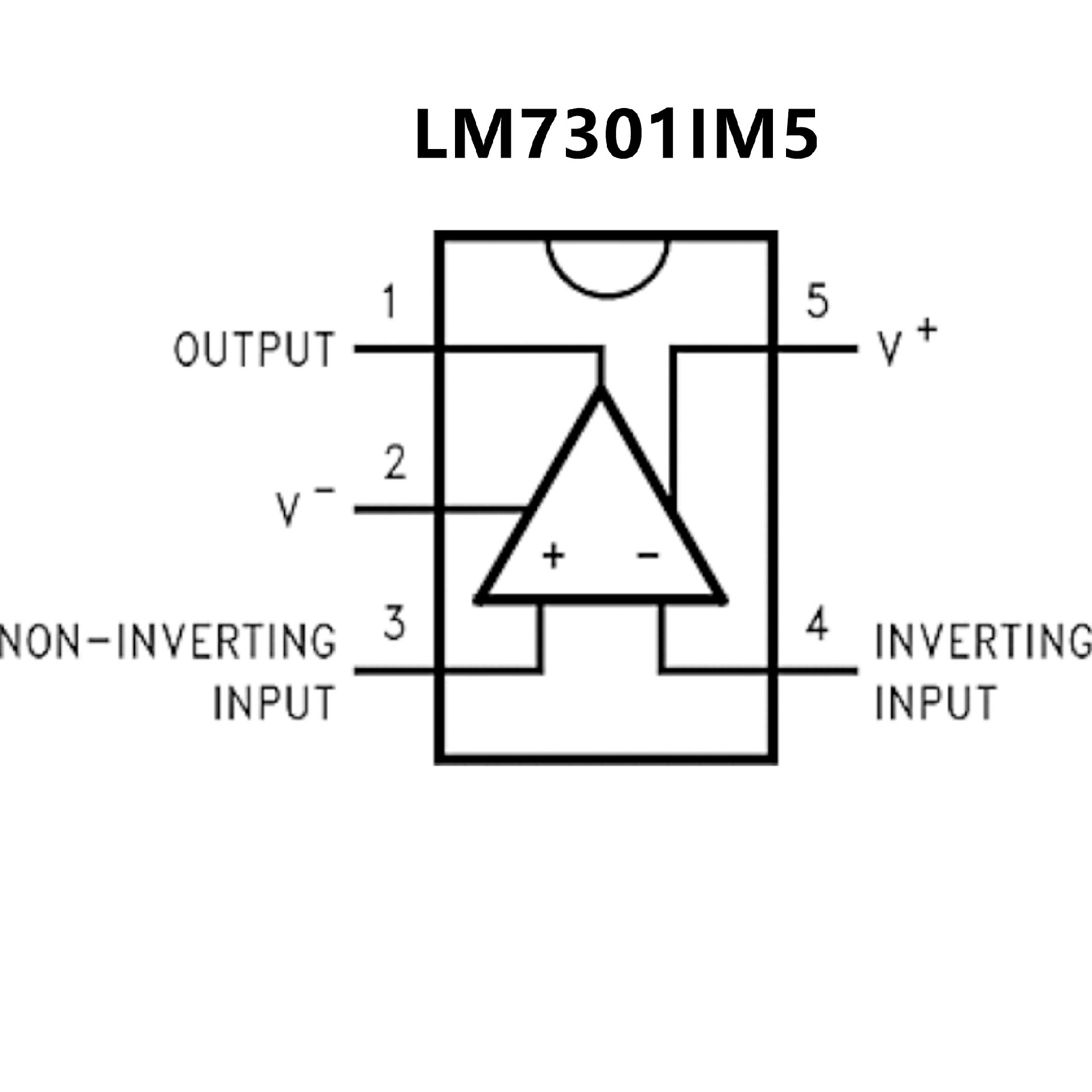

• Tiny, Space-Saving, 5-Pin SOT-23 Package
• Greater than Rail-to-Rail Input CMVR: −0.25 V to 5.2 V
• Rail-to-Rail Output Swing: 007 V to 4.93 V
• Wide Gain-Bandwidth: 4 MHz
• Low Supply Current: 0.6 mA
• Wide Supply Range: 1.8 V to 32 V
• High PSRR: 104 dB
• High CMRR: 93 dB
• Excellent Gain: 97 dB
