Low Noise, High Precision, High Voltage,Rail-to-Rail I/O Operational Amplifiers, SGM8273-1 P2P TL081ACD.
SGM8273-1
SGM8273-1.pdf
SGM8273-1.pdfFEATURES
• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1mV (MAX)
• Low Noise: 9nV/Hz at 1kHz
• Gain-Bandwidth Product: 4MHz
• High Slew Rate: 6V/μs
• Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package

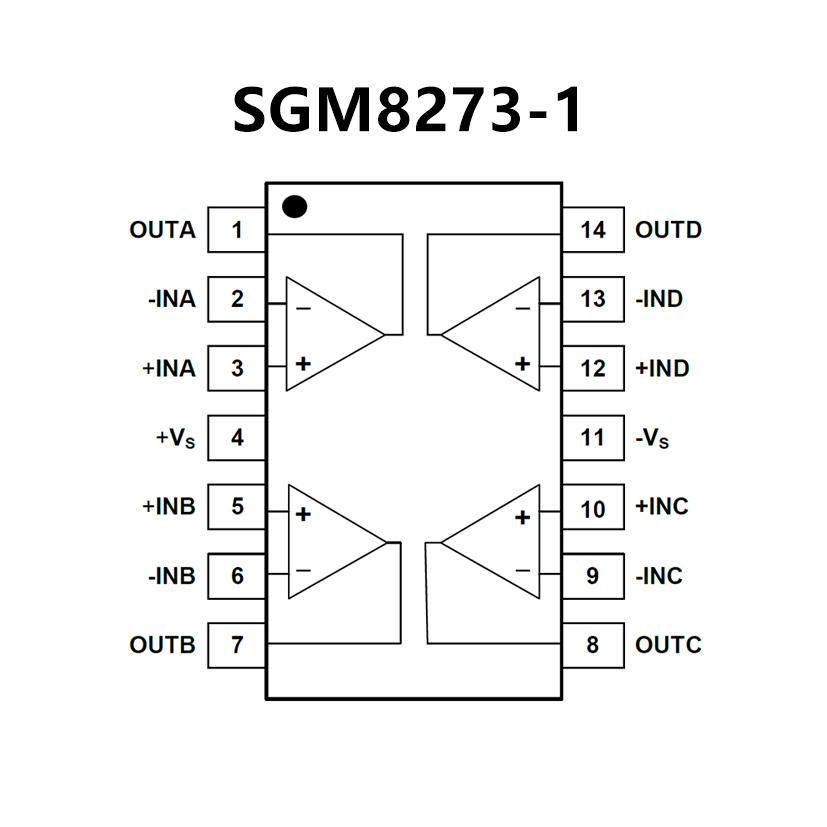

PIN CONFIGUTION
优势替代
FEATURES
• Input Offset Voltage Options of 6.0 mV and 15 mV Max
• Low Input Bias Current: 30 pA
• Low Input Offset Current: 5.0 pA
• Wide Gain Bandwidth: 4.0 MHz
• High Slew Rate: 13 V/ms
• Low Supply Current: 1.4 mA per Amplifier
• High Input Impedance: 1012 W

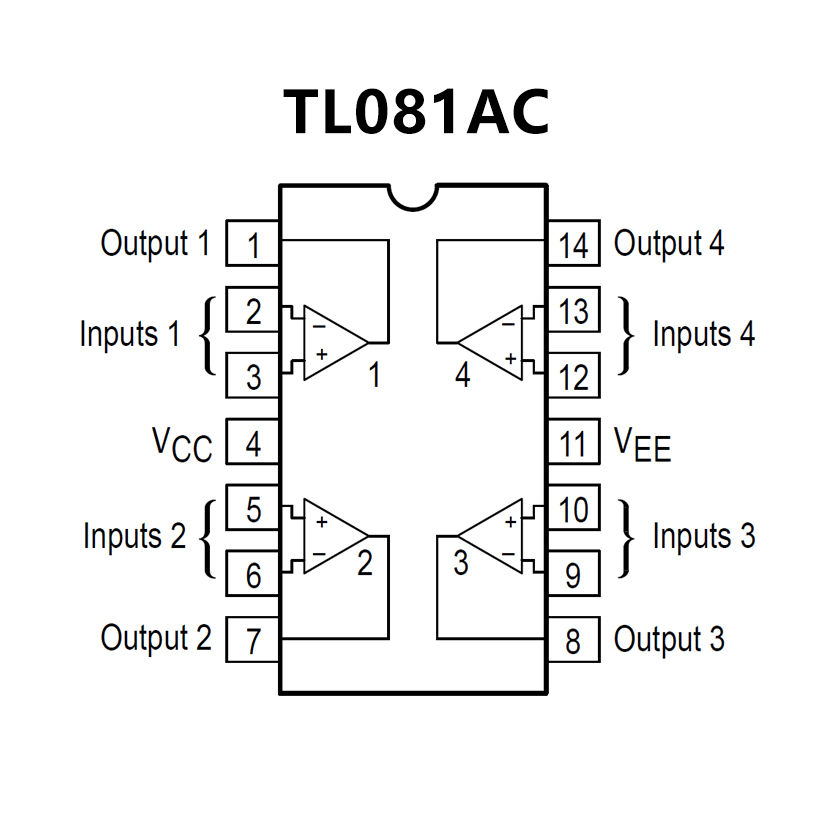

PIN CONFIGUTION
