SGM8273-2.pdf• Wide Input Common Mode and
DifferentialVoltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1mV (MAX)
• Low Noise: 9nV/ Hz at 1kHz
• Gain-Bandwidth Product: 4MHz
• High Slew Rate: 6V/µs
• Small Packaging:
SGM8273-1 Available in Green
SOT-23-5, SOIC-8and MSOP-8 Packages

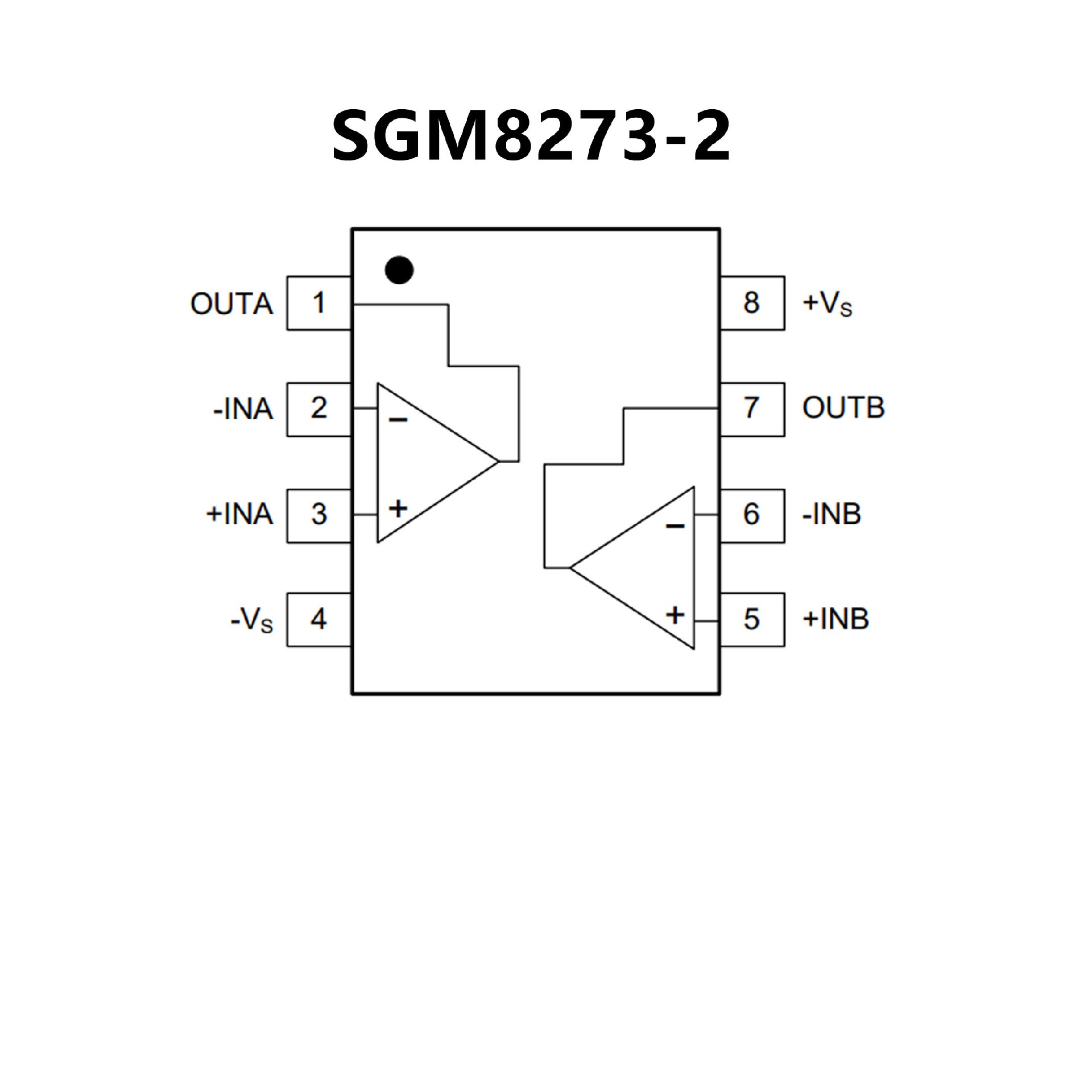

SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package
• Single-Supply Operation
Input Voltage Range Extends to Ground
Output Swings to Ground While SinkingCurrent
• Phase Reversal Protection
• Input Offset Voltage
150 µV Maximum at 25°C for LT1013AM
• Offset-Voltage Temperature Coefficient
2 µV/°C Maximum for LT1013AM
• Input Offset Current
0.8 nA Maximum at 25°C for LT1013AM
• High Gain
1.5 V/µV Minimum (RL = 2 kΩ) for LT1013AM
0.8 V/µV Minimum (RL = 600 kΩ) forLT1013AM
• Low Supply Current– 0.5 mA Maximum
at TA = 25°C for LT1013AM
• Low Peak-to-Peak Noise Voltage
0.55 µV Typical
• Low Current Noise
0.07 pA/√Hz Typical
