SGM8273-2.pdf• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1mV (MAX)
• Low Noise: 9nV/ Hz at 1kHz
• Gain-Bandwidth Product: 4MHz
• High Slew Rate: 6V/µs
• Small Packaging:

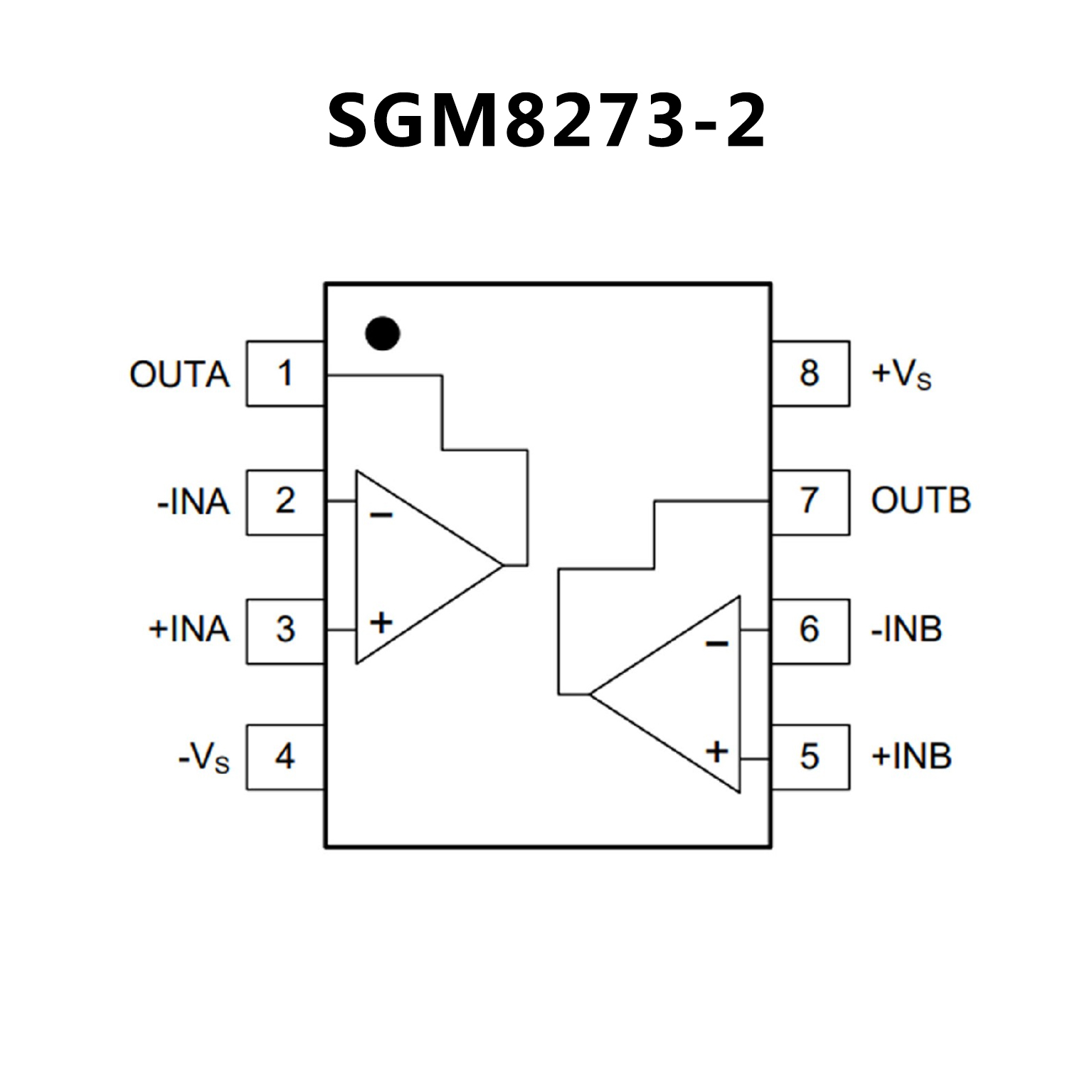

SGM8273-1 Available in Green SOT-23-5,
SOIC-8and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package
• Wide Bandwidth: 4.5 MHz
• High Slew Rate: 13 V/µs
• Fast Settling Time: 1.1 µs to 0.1%
• Wide Single Supply Operation: 3.0 V to 44 V
• Wide Input Common Mode Voltage
Range: Includes Ground (VEE)
• Low Input Offset Voltage: 3.0 mV Maximum (A Suffix)
• Large Output Voltage Swing: −14.7
V to +14 V (with ±15 V Supplies)
• Large Capacitance Drive Capability: 0 pF to 10,000 pF
• Low Total Harmonic Distortion: 0.02%
• Excellent Phase Margin: 60°
• Excellent Gain Margin: 12 dB
• Output Short Circuit Protection
• ESD Diodes/Clamps Provide Input
Protection for Dual and Quad
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements;
AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR
Free and are RoHS Compliant
