SGM8273-2.pdf• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1mV (MAX)
• Low Noise: 9nV/ Hz at 1kHz
• Gain-Bandwidth Product: 4MHz
• High Slew Rate: 6V/μs
• Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages

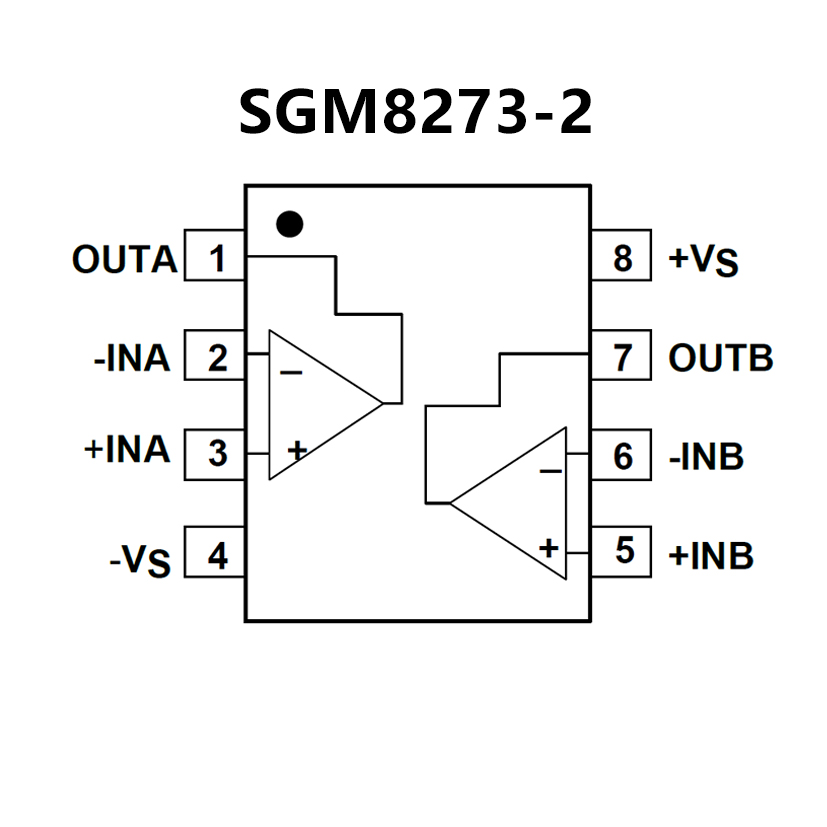

SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package
• Output Swing Includes Both Supply Rails
• Low Noise: 9 nV/√Hz Typical at f = 1 kHz
• Low-Input Bias Current: 1-pA Typical
• Fully-Specified for Both Single-Supply and Split-
Supply Operation
• Common-Mode Input Voltage Range Includes
Negative Rail
• High-Gain Bandwidth: 2.2-MHz Typical
• High Slew Rate: 3.6-V/μs Typical
• Low Input Offset Voltage: 950 μV Maximum at
TA = 25°C
• Macromodel Included

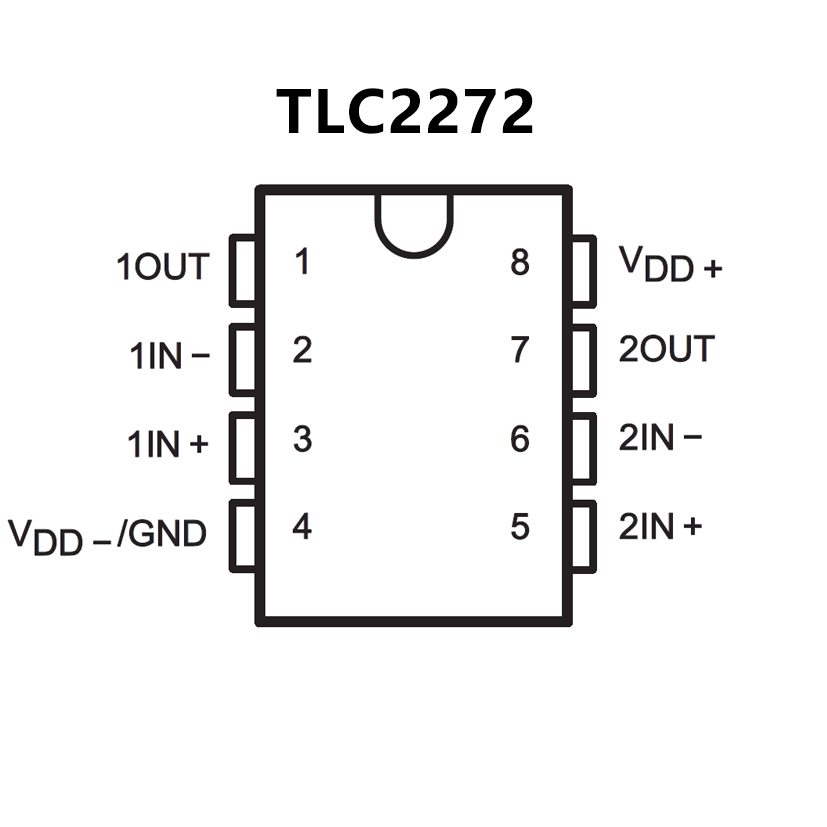

• Performance Upgrades for the TLC272 and
TLC274
• Available in Q-Temp Automotive
