Micro Power operational Amplifier,SGM8273-2 Replace TLV2172.
SGM8273-2
SGM8273-2.pdf
SGM8273-2.pdfFEATURES
• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1mV (MAX)
• Low Noise: 9nV/ Hz at 1kHz
• Gain-Bandwidth Product: 4MHz
• High Slew Rate: 6V/µs
• Small Packaging:
SGM8273-2 Available in Green SOIC-8 Package

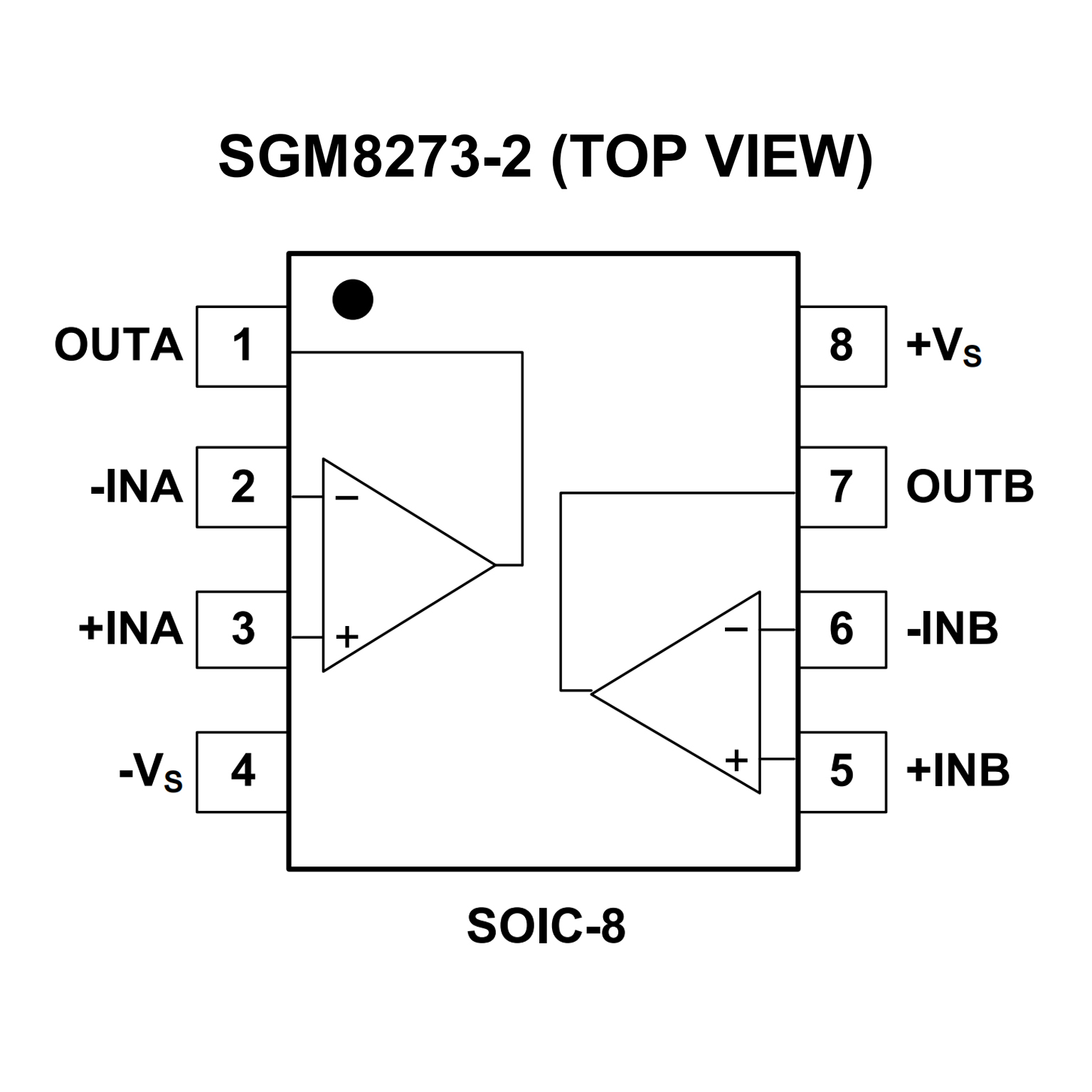

PIN CONFIGUTION
优势替代
FEATURES
• Supply Range: 4.5 V to 36 V, ±2.25 V to ±18 V
• Low Noise: 9 nV/√Hz
• Low Offset Drift: ±1 μV/°C (typical)
• EMI-Hardened
• Input Range Includes the Negative Supply
• Rail-to-Rail Output
• Gain Bandwidth: 10 MHz
• Slew Rate: 10 V/μs
• Low Quiescent Current: 1.6 mA per Amplifier
• High Common-Mode Rejection: 116 dB (typical)
• Low Input Bias Current: 10 pA
PIN CONFIGUTION
