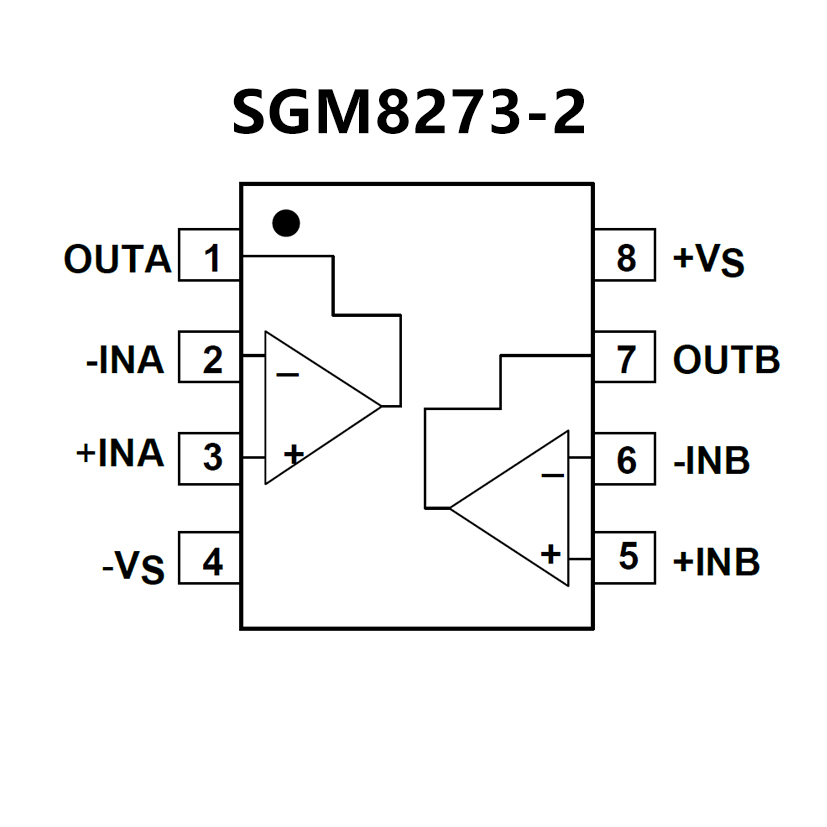

SGM8273-2.pdf• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1mV (MAX)
• Low Noise: 9nV/Hz at 1kHz
• Gain-Bandwidth Product: 4MHz
• High Slew Rate: 6V/μs
• Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package
• Low Power Consumption

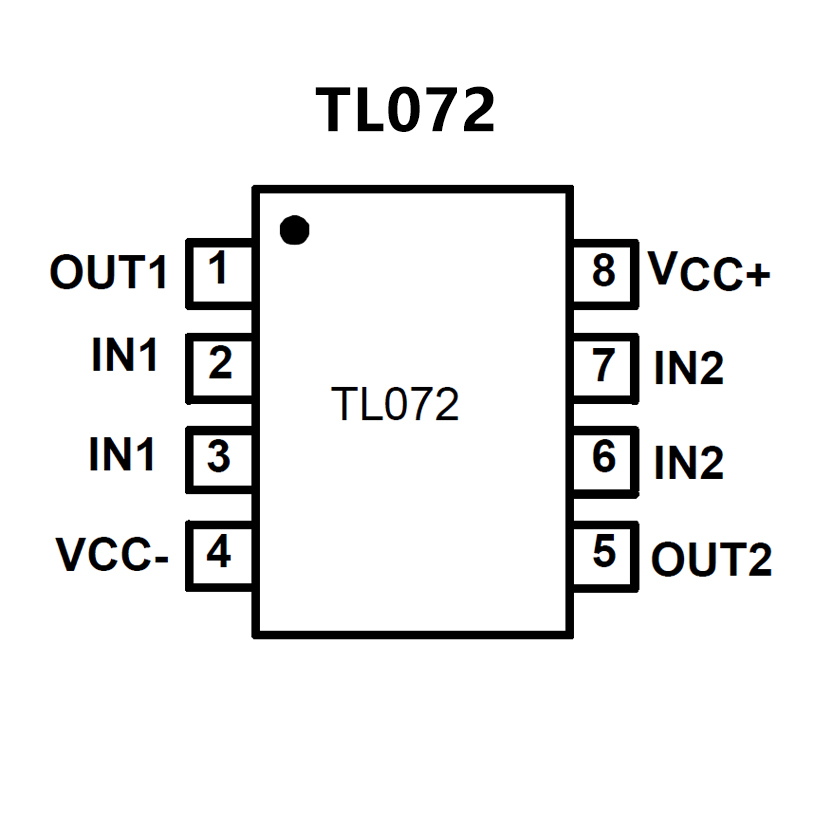

• Wide Common-Mode and
Differential Voltage Ranges
• Low Input Bias and Offset Currents
• Output Short-Circuit Protection
• Low Total Harmonic Distortion…0.003% Typ
• Low Noise Vn= 18nV ΗΖ Typ at f=1kHz
• High Input Impedance…JFET-Input Stage
• Internal Frequency Compensation
• Latch-Up-Free Operation
• High Slew Rate…13V/μs Typ
• Common-Mode Input Voltage Range Includes VCC+
• SOP-8L: Available in “Green” Molding Compound
(No Br, Sb)
• Lead Free Finish/ RoHS Compliant (Note 1)
