Low Noise, High Precision, High Voltage,Rail-to-Rail I/O Operational Amplifiers, SGM8273-4 P2P TL084CPWRE4.
SGM8273-4
SGM8273-4.pdf
SGM8273-4.pdfFEATURES
• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1mV (MAX)
• Low Noise: 9nV/ Hz at 1kHz
• Gain-Bandwidth Product: 4MHz
• High Slew Rate: 6V/μs
• Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package

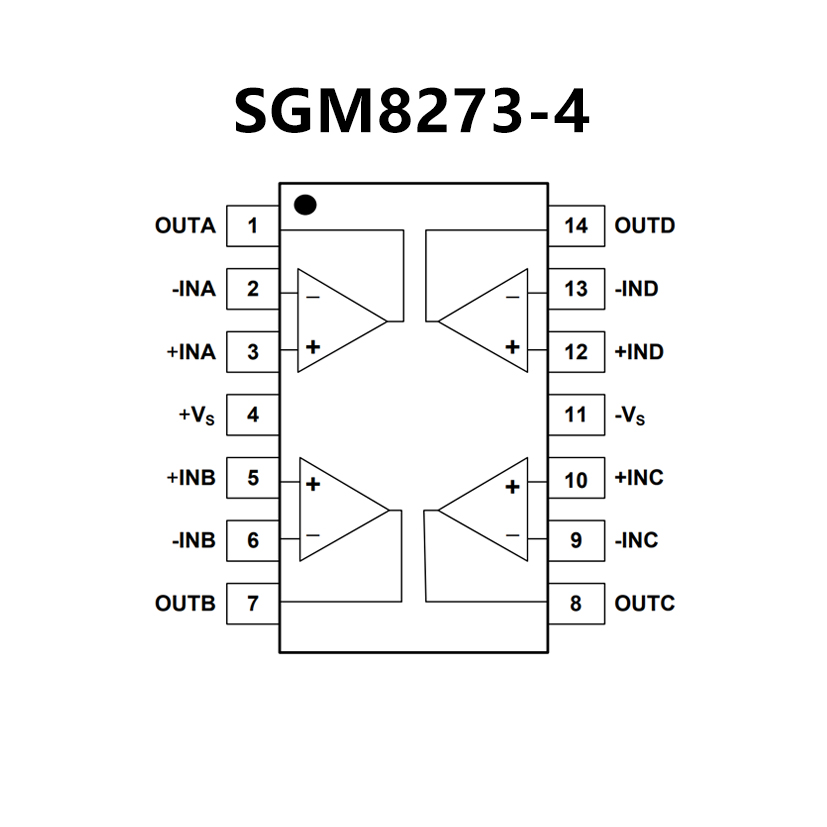

PIN CONFIGUTION
优势替代
FEATURES
• Wide common-mode (up to VCC+) and
differential voltage range
• Low input bias and offset current
• Output short-circuit protection
• High input impedance JFET input stage
• Internal frequency compensation
• Latch up free operation
• High slew rate: 16 V/μs (typical)

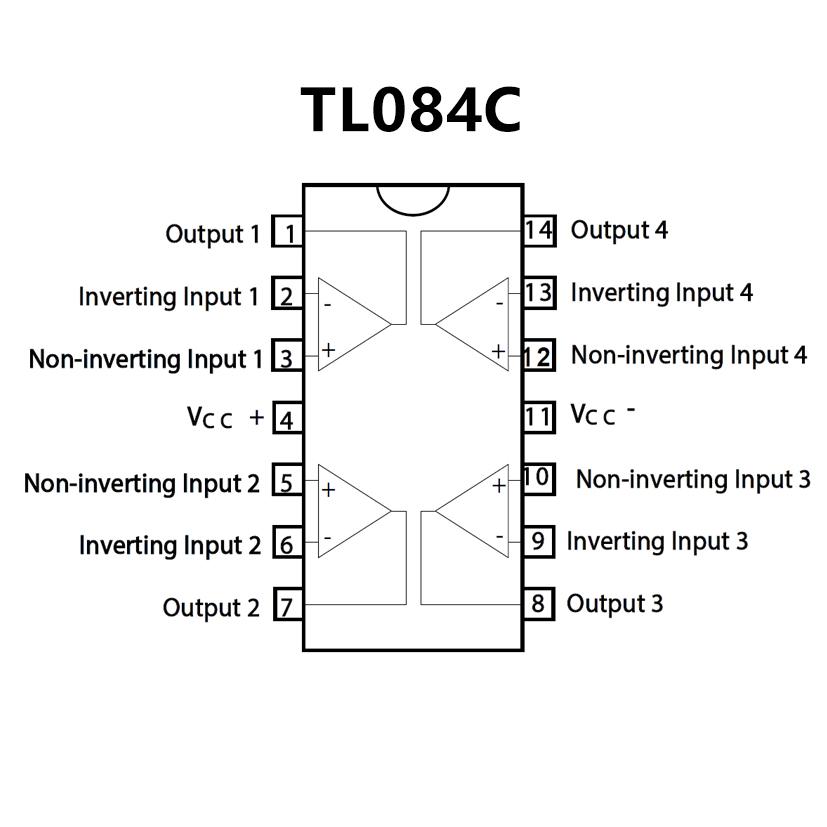

PIN CONFIGUTION
