Micro Power operational Amplifier, Replace TLV4170
SGM8274
SGM8274.pdf
SGM8274.pdfFEATURES
• Low Power Consumption: 150μA/Amplifier
• Wide Input Common Mode Voltage Range
• Low Input Bias and Offset Currents
• Output Short-Circuit Protection
• Rail-to-Rail Output
• High Input Impedance
• Low Offset Voltage: 3mV (MAX)
• High Slew Rate: 7V/μs
• Small Packaging:
SGM8274 Available in Green TSSOP-14 and SOIC-14

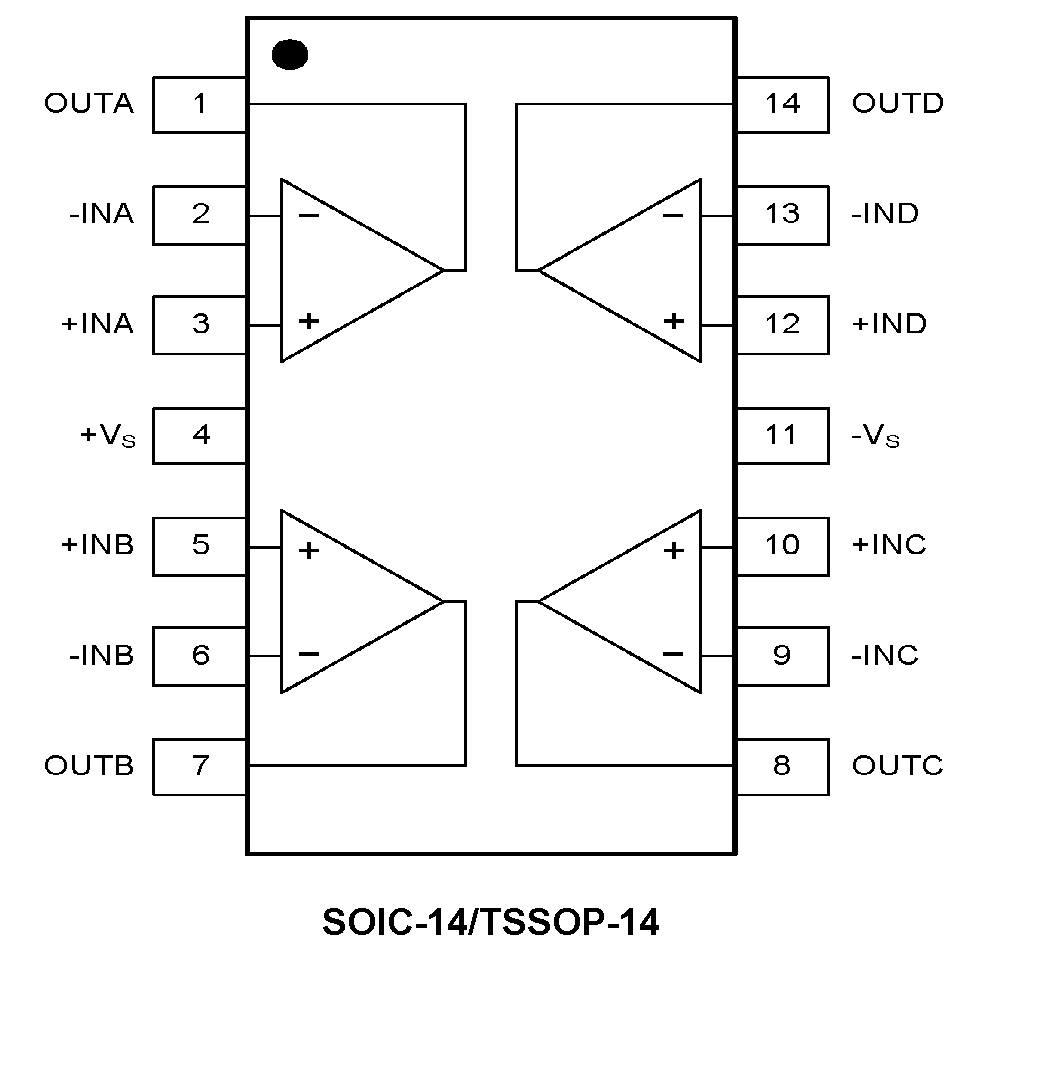

PIN CONFIGUTION
优势替代
FEATURES
• Supply Range: 2.7 V to 36 V, ±1.35 V to ±18 V
• Low Noise: 22 nV/√Hz
• EMI-Hardened with RFI-Filtered Inputs
• Input Range Includes the Negative Supply
• Unity-Gain Stable: 200-pF Capacitive Load
• Rail-to-Rail Output
• Gain Bandwidth: 1.2 MHz
• Low Quiescent Current: 125 μA per Amplifier
• High Common-Mode Rejection: 110 dB
• Low Bias Current: 10 pA (typical)

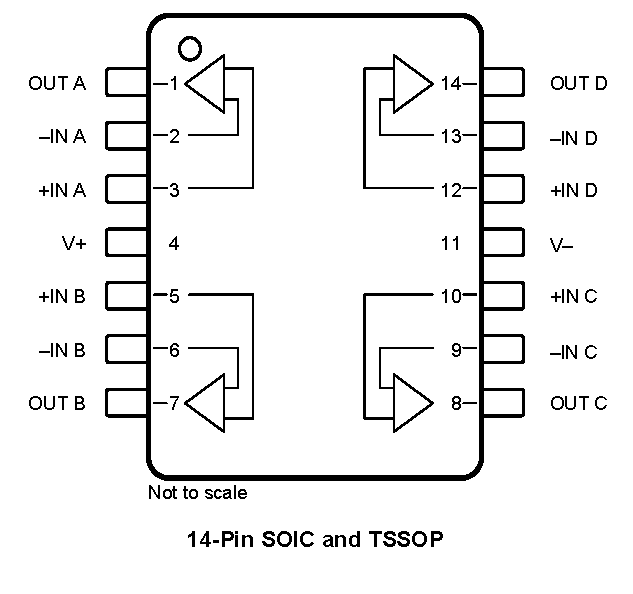

PIN CONFIGUTION
