High Voltage Rail-to-Rail Output Operational Amplifier, SGM8274XS14G/TR Replace TL074CDR.
SGM8274
SGM8274.pdf
SGM8274.pdfFEATURES
• Low Power Consumption: 150µA/Amplifier
• Wide Input Common Mode Voltage Range
• Low Input Bias and Offset Currents
• Output Short-Circuit Protection
• Rail-to-Rail Output
• High Input Impedance
• Low Offset Voltage: 3mV (MAX)
• High Slew Rate: 7V/µs
• Small Packaging:
SGM8274 Available in Green TSSOP-14 and
SOIC-14

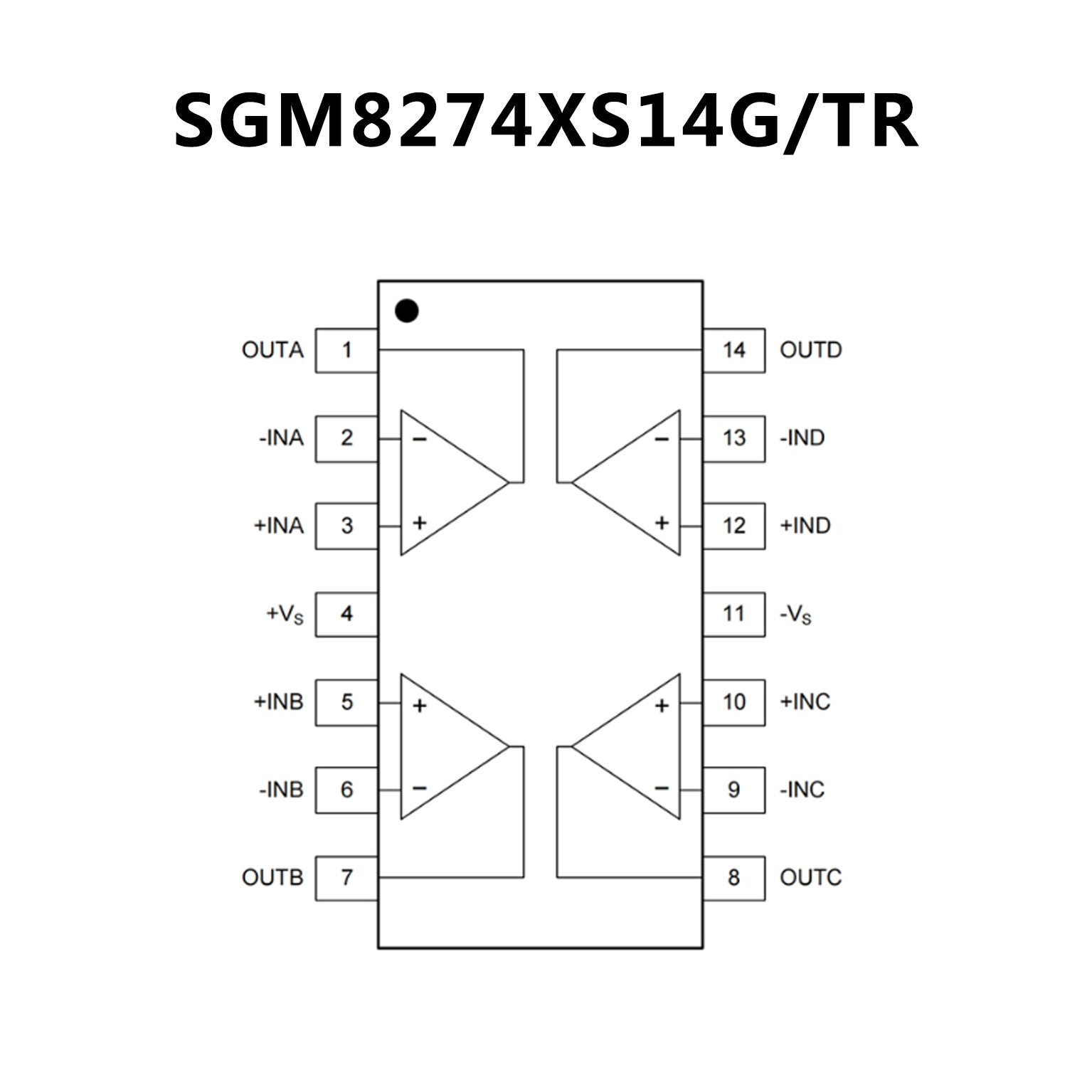

PIN CONFIGUTION
优势替代
FEATURES
• Low Power Consumption: 1.4 mA/ch Typical
• Wide Common-Mode and Differential Voltage
Ranges
• Low Input Bias Current: 30 pA Typical
• Low Input Offset Current: 5 pA Typical
• Output Short-Circuit Protection
• Low Total Harmonic Distortion: 0.003% Typical
• High Input Impedance: JFET Input Stage
• Latch-Up-Free Operation
• High Slew Rate: 13 V/μs Typical
• Common-Mode Input Voltage Range
Includes VCC+

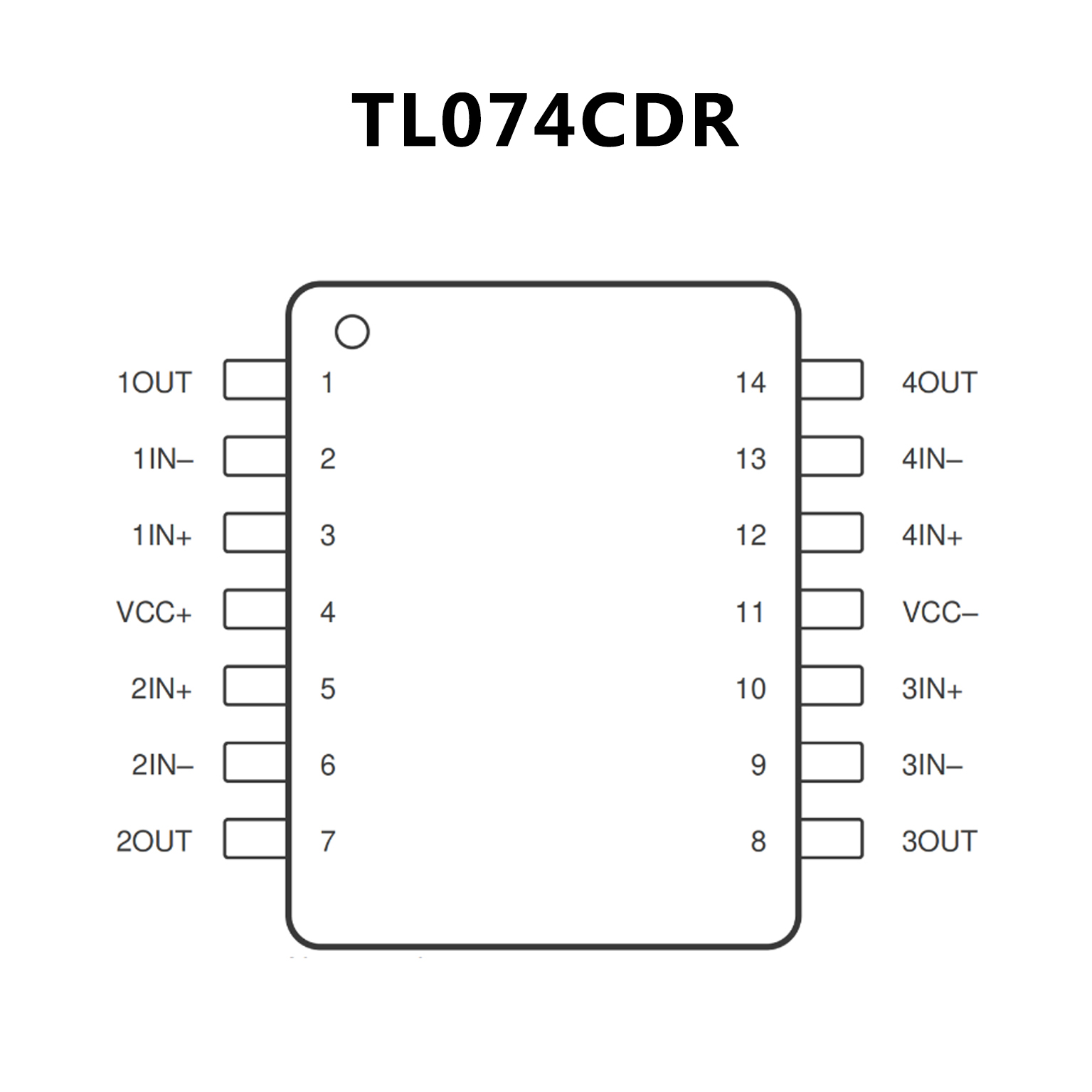

PIN CONFIGUTION
