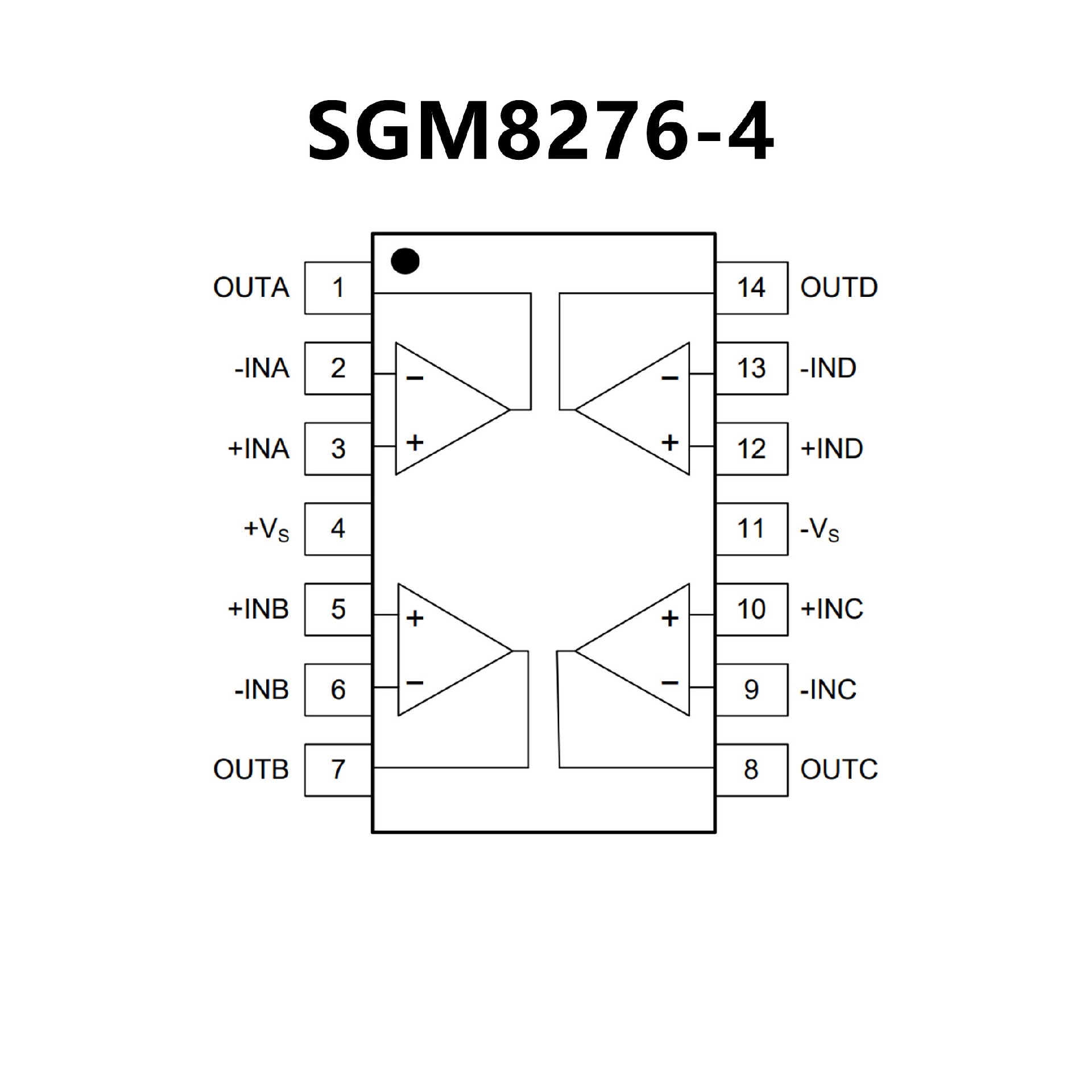

SGM8276-4.pdf• Wide Input Common Mode and
Differential VoltageRanges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
• Low Noise: 10nV/Hz at 1kHz
• Gain-Bandwidth Product: 10MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8276-1 Available in a Green SOT-23-5 Package
SGM8276-2 Available in a Green SOIC-8 Package
SGM8276-4 Available in a Green SOIC-14 Package

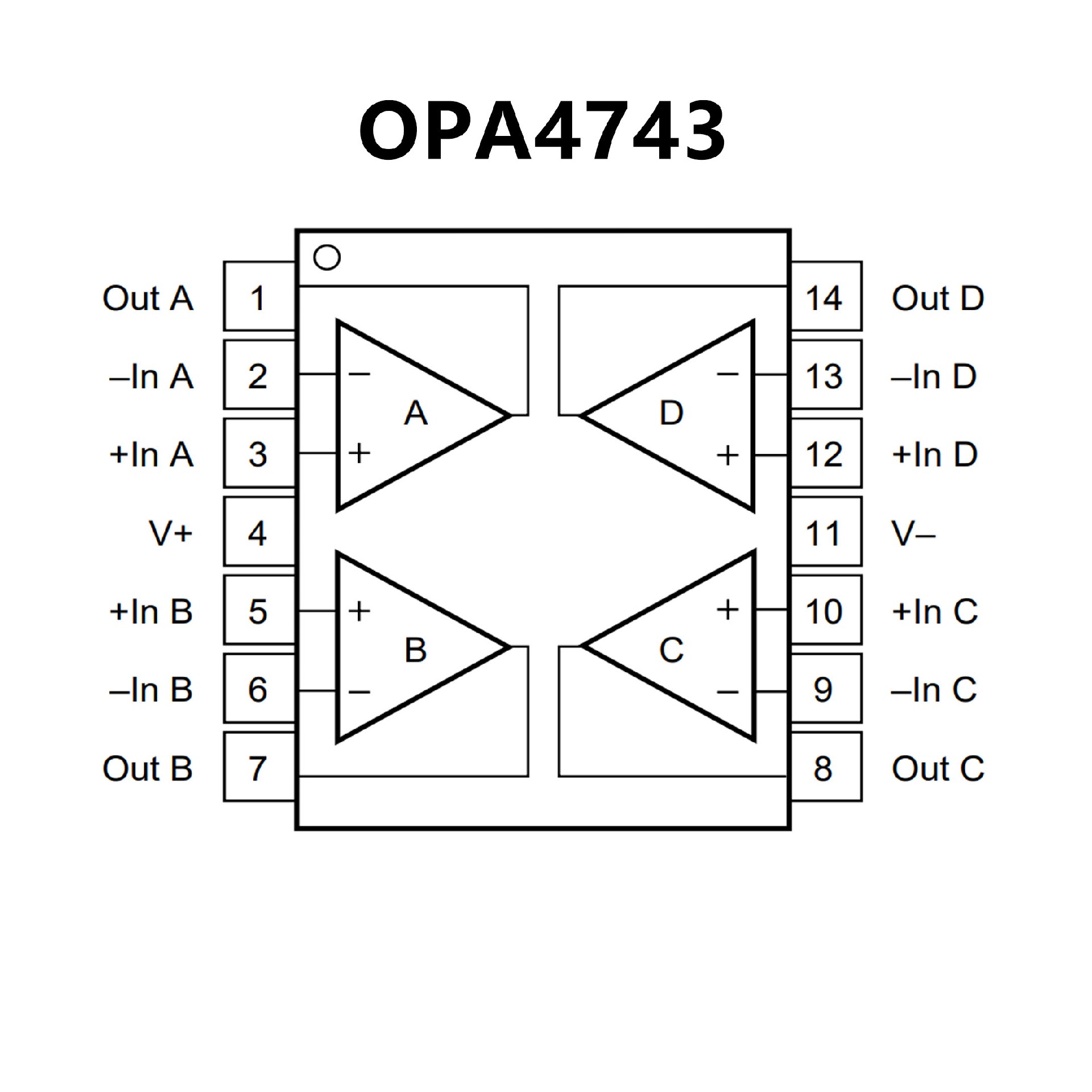

• HIGH SPEED: 7MHz, 10V/μs
• RAIL-TO-RAIL INPUT AND OUTPUT
• WIDE SUPPLY RANGE:
Single Supply: 3.5V to 12V
Dual Supplies: ±1.75V to ±6V
• LOW QUIESCENT CURRENT: 1.1mA
• FULL-SCALE CMRR: 84dB
• MicroSIZE PACKAGES:
SOT23-5, MSOP-8, TSSOP-14
• LOW INPUT BIAS CURRENT: 1pA
