Low Quiescent Current, Programmable Delay Supervisory Circuit，Replace RT9807
SGM829
SGM829.pdf
SGM829.pdfFEATURES
• Adjustable Reset Timeout Period: 1.25ms to 10s
• Low Quiescent Current: 0.6μA (TYP)
• High Threshold Accuracy: 1% (TYP)
• Factory-Set Detection Voltages from 1.8V to 5V
• Manual Reset (nMR) Input
• Open-Drain nRESET Output
• Available in a Green SOT-23-5 Package

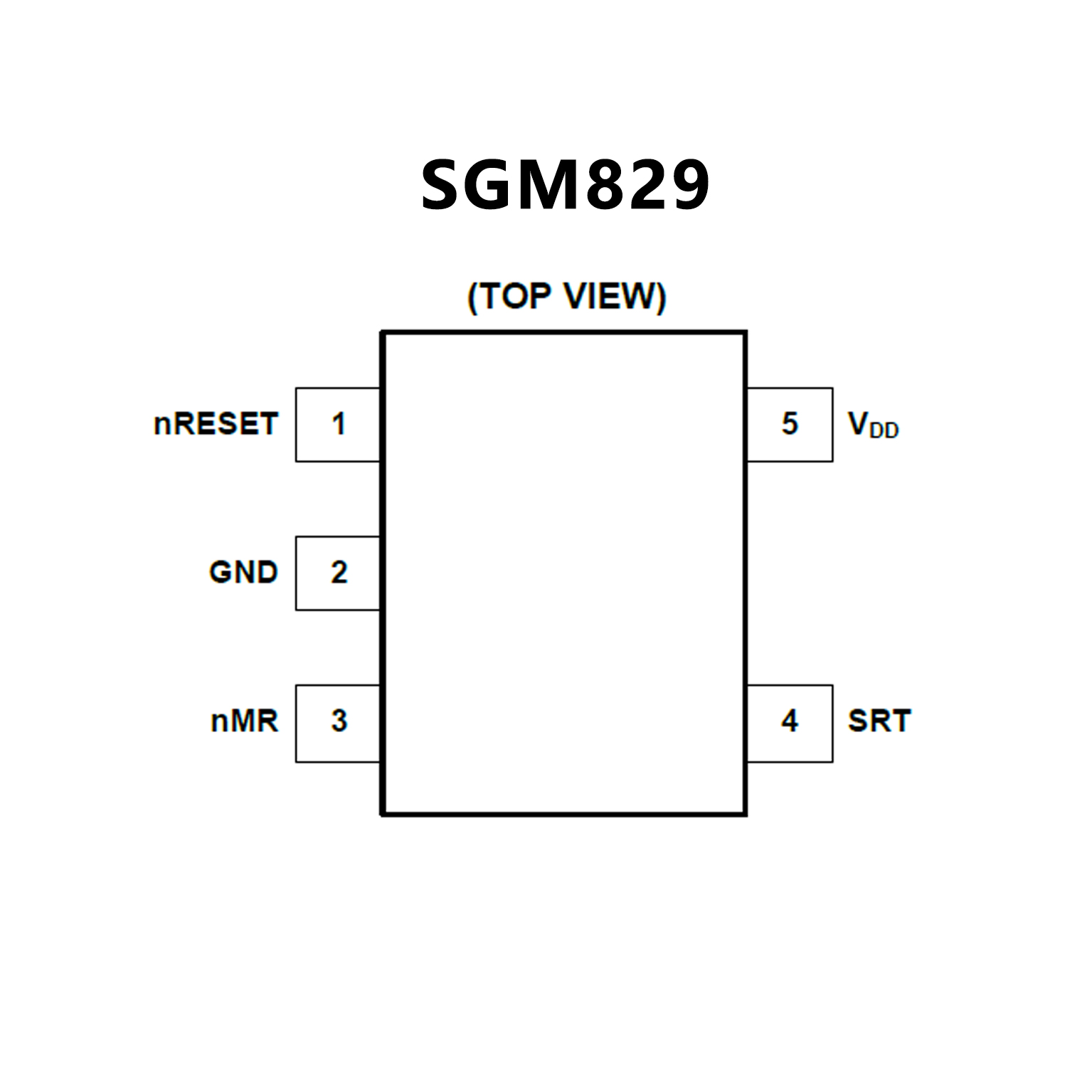

PIN CONFIGUTION
优势替代
FEATURES
• Monitor System Voltages from 0.9V to 5.5V
• Capacitor-Adjustable Reset Timeout Period
• Manual Reset Input
• Low Quiescent Current
• High Accuracy ±±±±±1.5%
• Low Functional Supply Voltage 0.9V
• N-Channel Open-Drain Output
• Small SOT-23-5 Package
• RoHS Compliant and Halogen Free

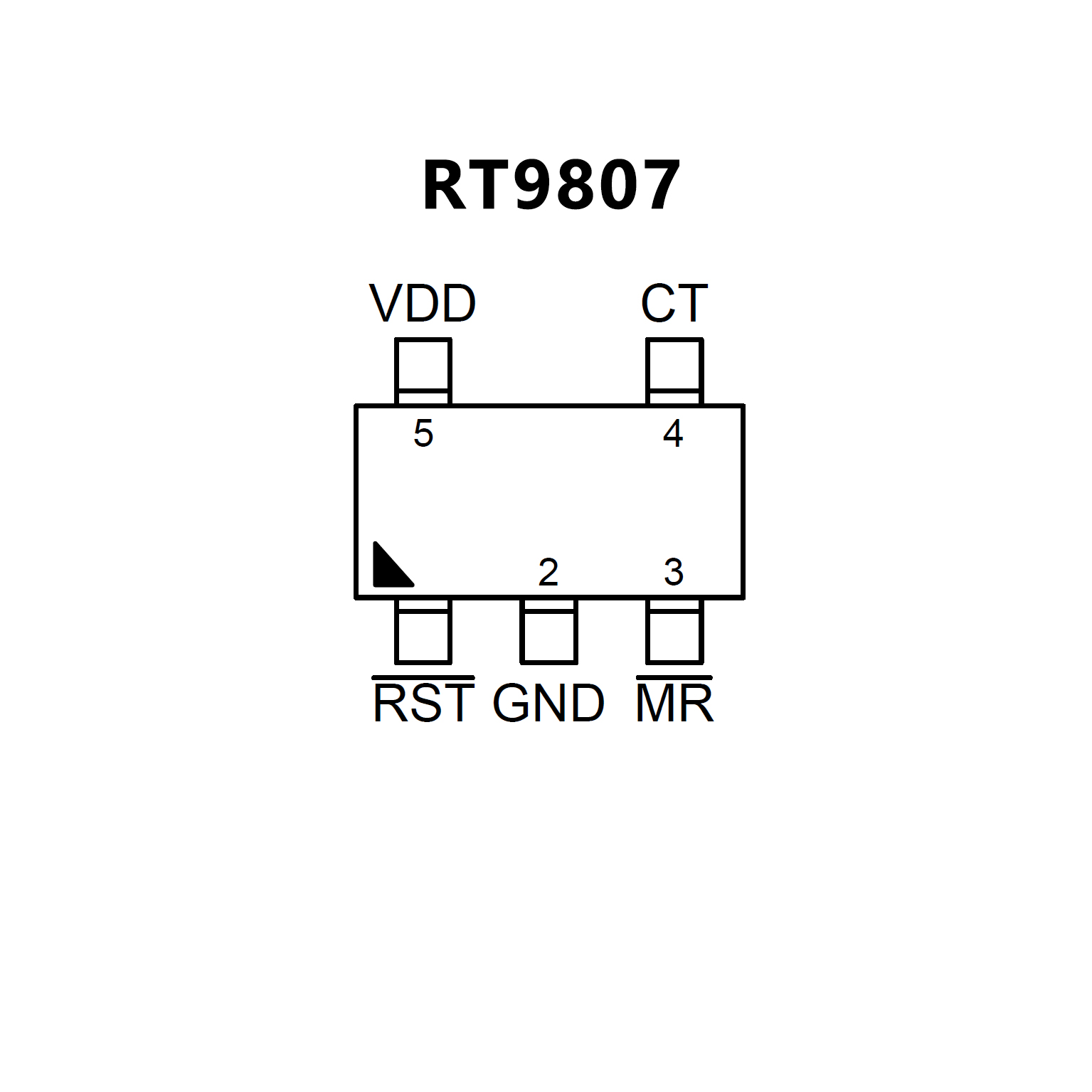

PIN CONFIGUTION
