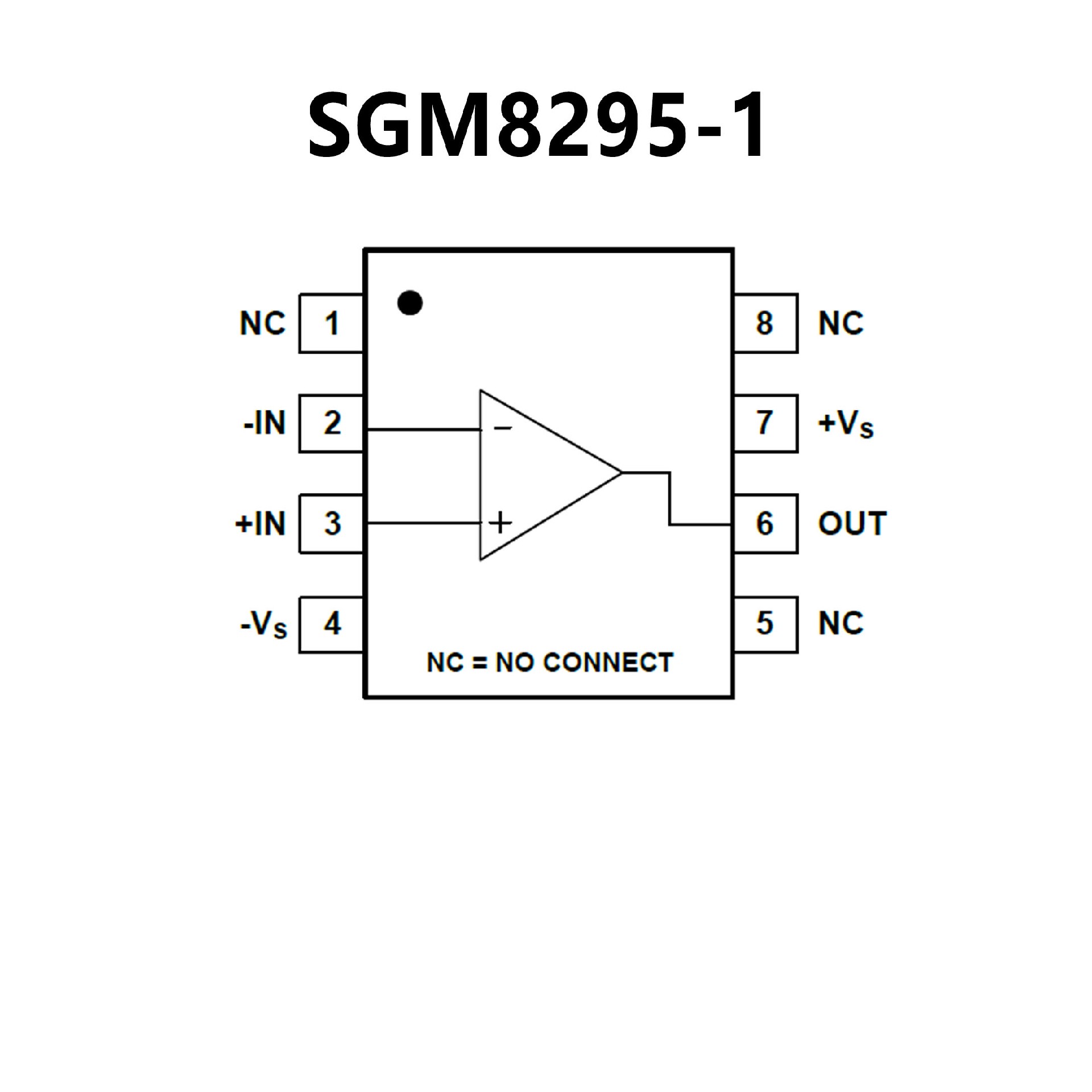

SGM8295-1.pdf• Low Noise: 4.5nV√Hz
• Rail-to-Rail Output
• Very Low Offset Voltage: 250μV (MAX)
• Low Bias Current: ±1nA (TYP)
• High Gain-Bandwidth Product: 9MHz
• High Slew Rate: 8V/μs
• High Open-Loop Gain: 130dB at VS = ±15V
• High PSRR: 145dB
• Settling Time to 0.1% with 1V Step: 1μs
• Overload Recovery Time: 10μs
• Operating Voltage Range:
3.6V to 36V or ±1.8V to ±18V
• Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
• Low Supply Current:
1.5mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8295-1 Available in Green SOT-23-5
and SOIC-8 Packages
SGM8295-2 Available in Green SOIC-8
and MSOP-8 Packages
SGM8295-4 Available in a Green SOIC-14 Package
• Very-Low Offset Drift: 1 μV/°C maximum

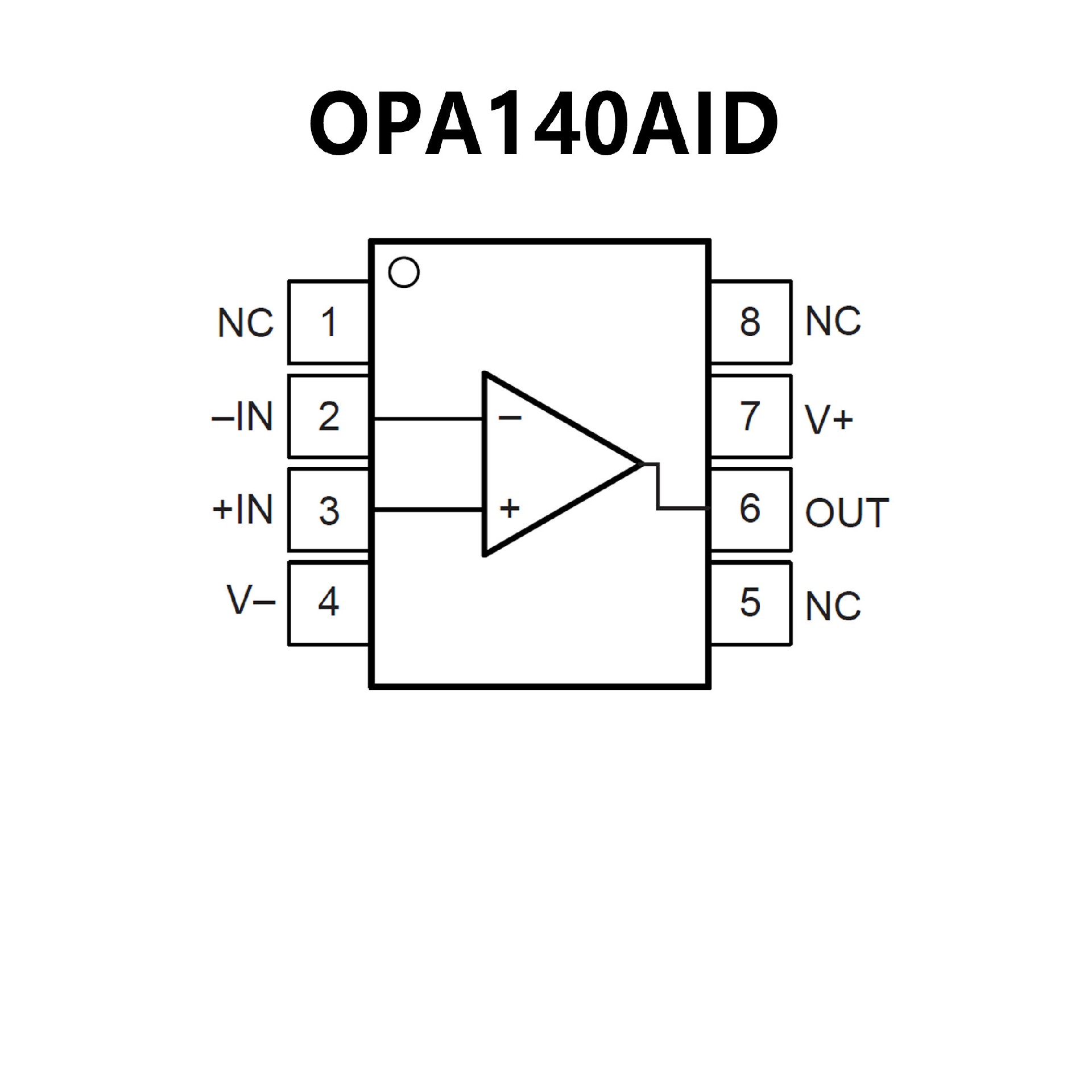

• Very-Low Offset: 120 μV
• Low Input Bias Current: 10 pA maximum
• Very-Low 1/f Noise: 250 nVPP, 0.1 Hz to 10 Hz
• Low Noise: 5.1 nV/√Hz
• Slew Rate: 20 V/μs
• Low Supply Current: 2 mA maximum
• Input Voltage Range Includes V– supply
• Single-Supply Operation: 4.5 V to 36 V
• Dual-Supply Operation: ±2.25 V to ±18 V
• No Phase Reversal
• Industry-Standard SOIC Packages
• VSSOP, TSSOP, and SOT-23 Packages
