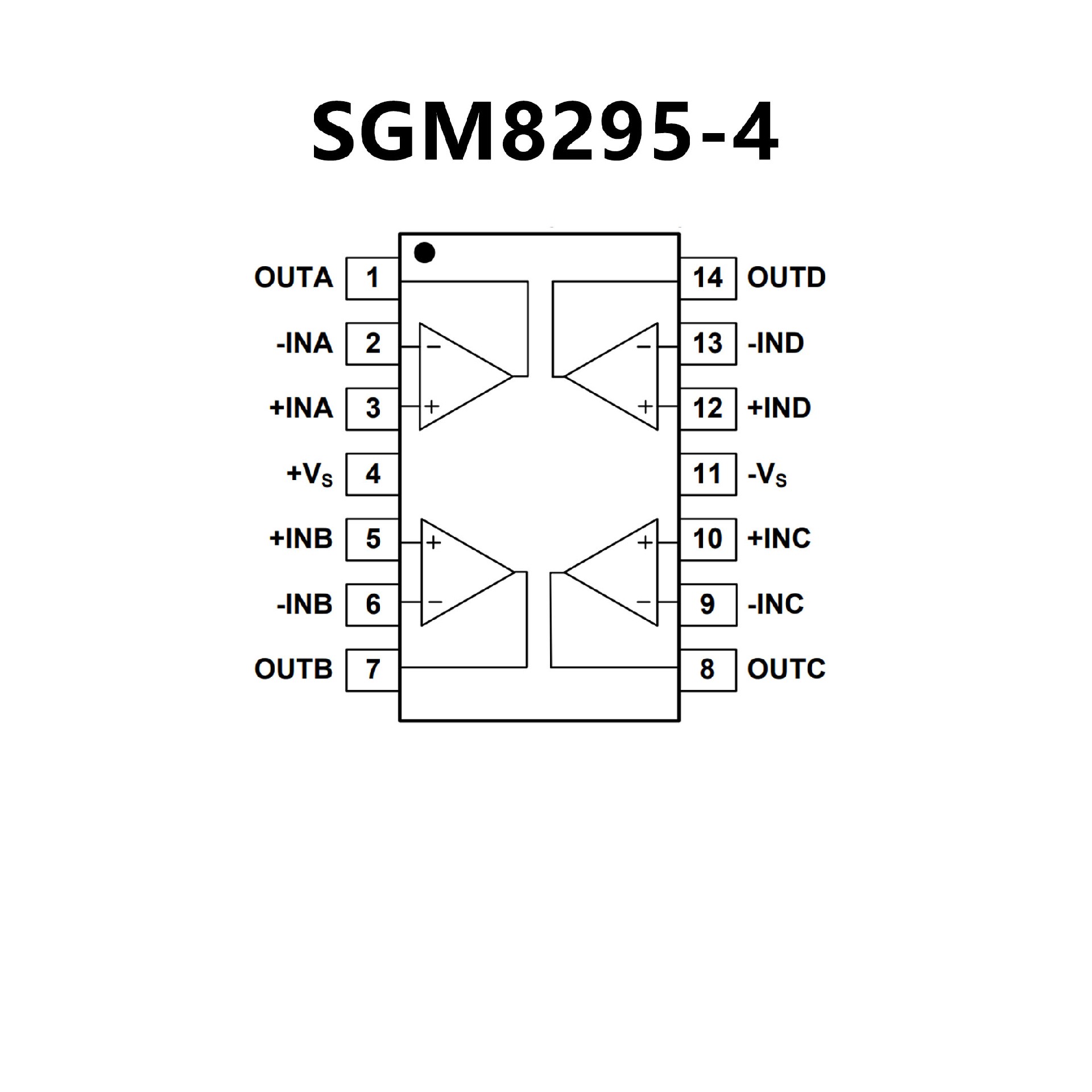

SGM8295-4.pdf• Low Noise: 4.5nV/Hz
• Rail-to-Rail Output
• Very Low Offset Voltage: 250μV (MAX)
• Low Bias Current: ±1nA (TYP)
• High Gain-Bandwidth Product: 9MHz
• High Slew Rate: 8V/μs
• High Open-Loop Gain: 130dB at VS = ±15V
• High PSRR: 145dB
• Settling Time to 0.1% with 1V Step: 1μs
• Overload Recovery Time: 10μs
• Operating Voltage Range:
3.6V to 36V or ±1.8V to ±18V
• Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
• Low Supply Current:1.5mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8295-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8295-2 Available in Green SOIC-8 and
MSOP-8 Packages
SGM8295-4 Available in a Green SOIC-14 Package

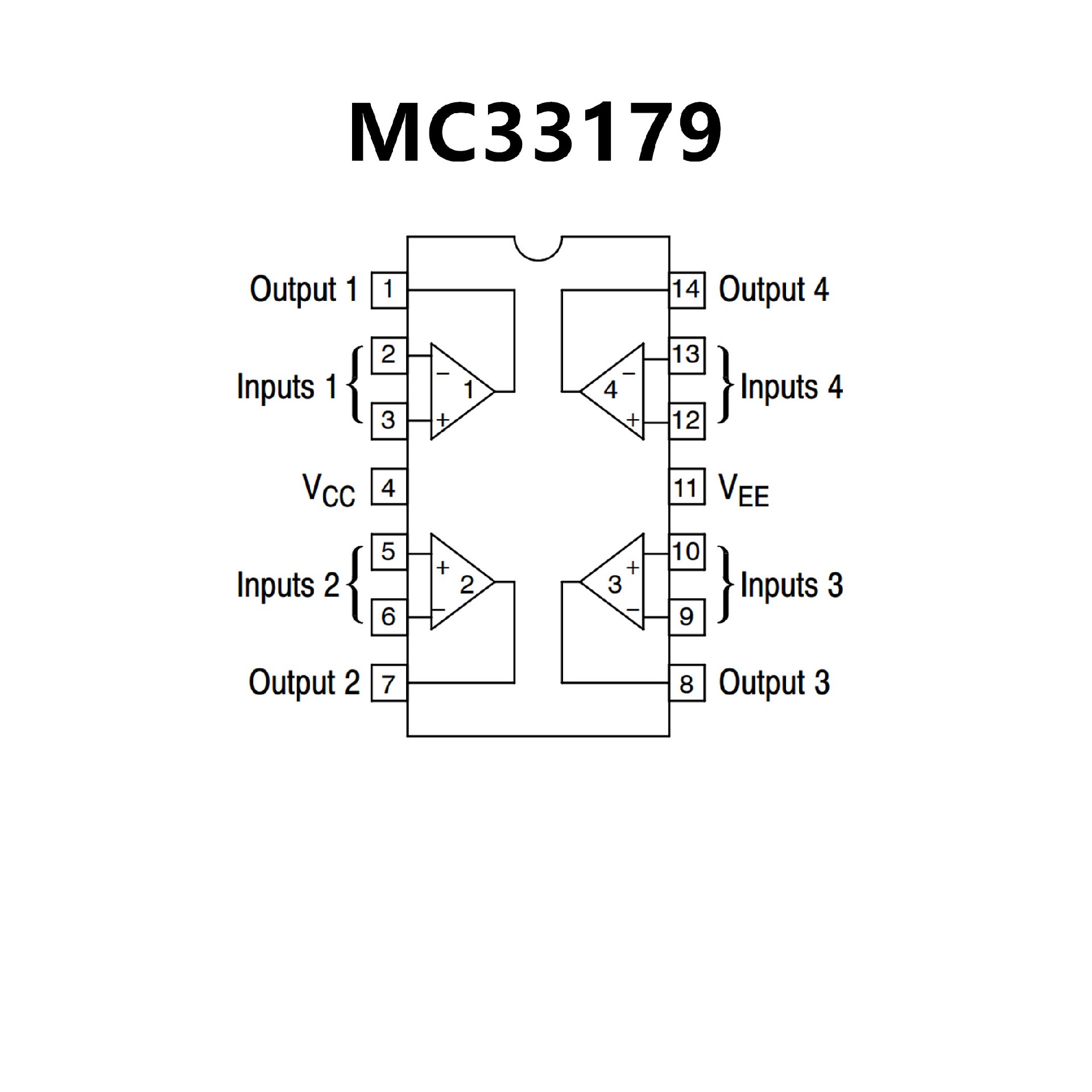

• 600 Ω Output Drive Capability
• Large Output Voltage Swing
• Low Offset Voltage: 0.15 mV (Mean)
• Low T.C. of Input Offset Voltage: 2.0 µV/°C
• Low Total Harmonic Distortion: 0.0024%
(@ 1.0 kHz w/600 Ω Load)
• High Gain Bandwidth: 5.0 MHz
• High Slew Rate: 2.0 V/µs
• Dual Supply Operation: ±2.0 V to ±18 V
• ESD Clamps on the Inputs Increase Ruggedness
without AffectingDevice Performance
• Pb−Free Packages are Available
