SGM8295.pdf• Low Noise: 4.5nV/Hz
• Rail-to-Rail Output
• Very Low Offset Voltage: 250μV (MAX)
• Low Bias Current: ±1nA (TYP)
• High Gain-Bandwidth Product: 9MHz
• High Slew Rate: 8V/μs
• High Open-Loop Gain: 130dB at VS = ±15V
• High PSRR: 145dB
• Settling Time to 0.1% with 1V Step: 1μs
• Overload Recovery Time: 10μs
• Operating Voltage Range:
3.6V to 36V or ±1.8V to ±18V
• Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
• Low Supply Current:
1.5mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8295-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8295-2 Available in Green SOIC-8 and
MSOP-8 Packages

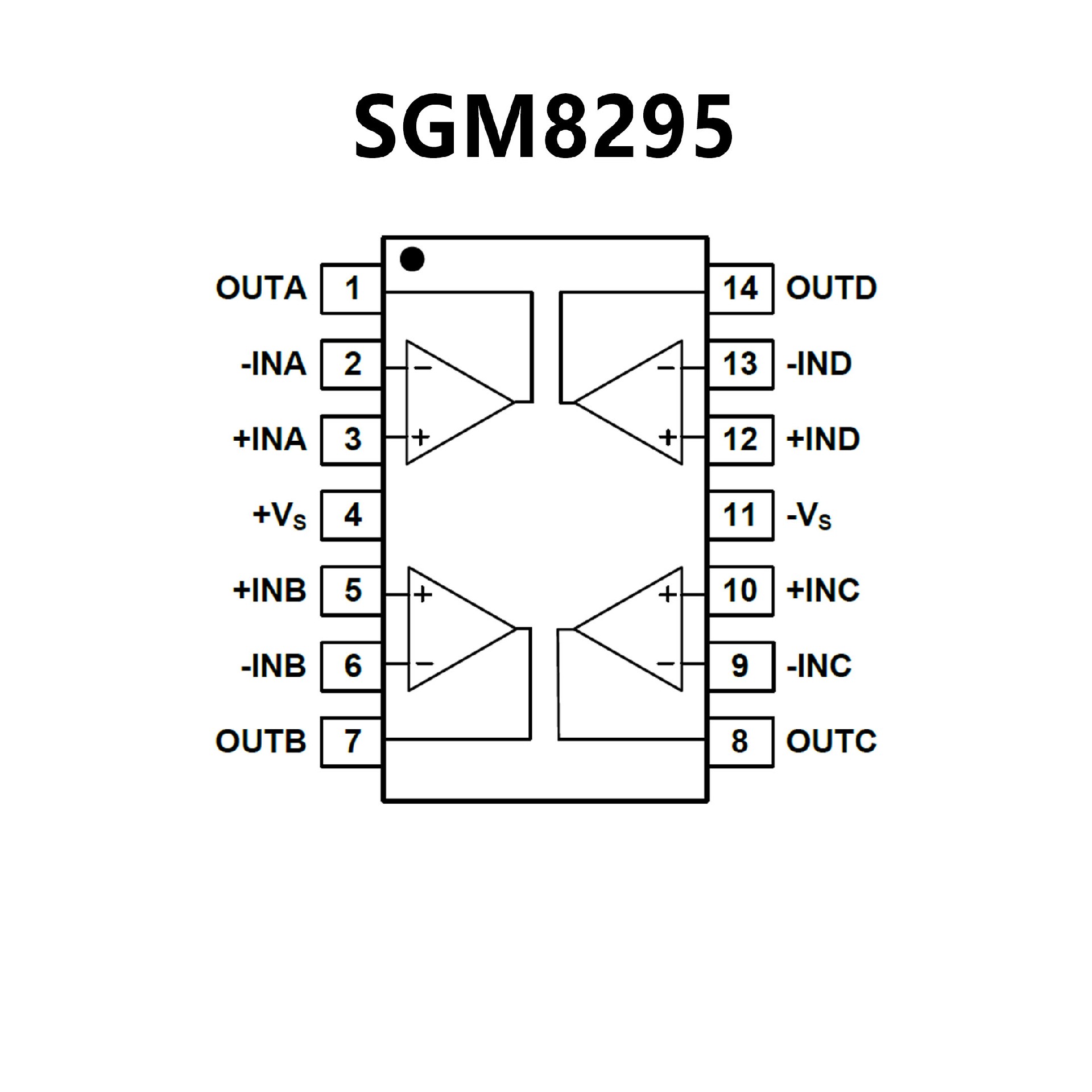

SGM8295-4 Available in a Green SOIC-14 Package

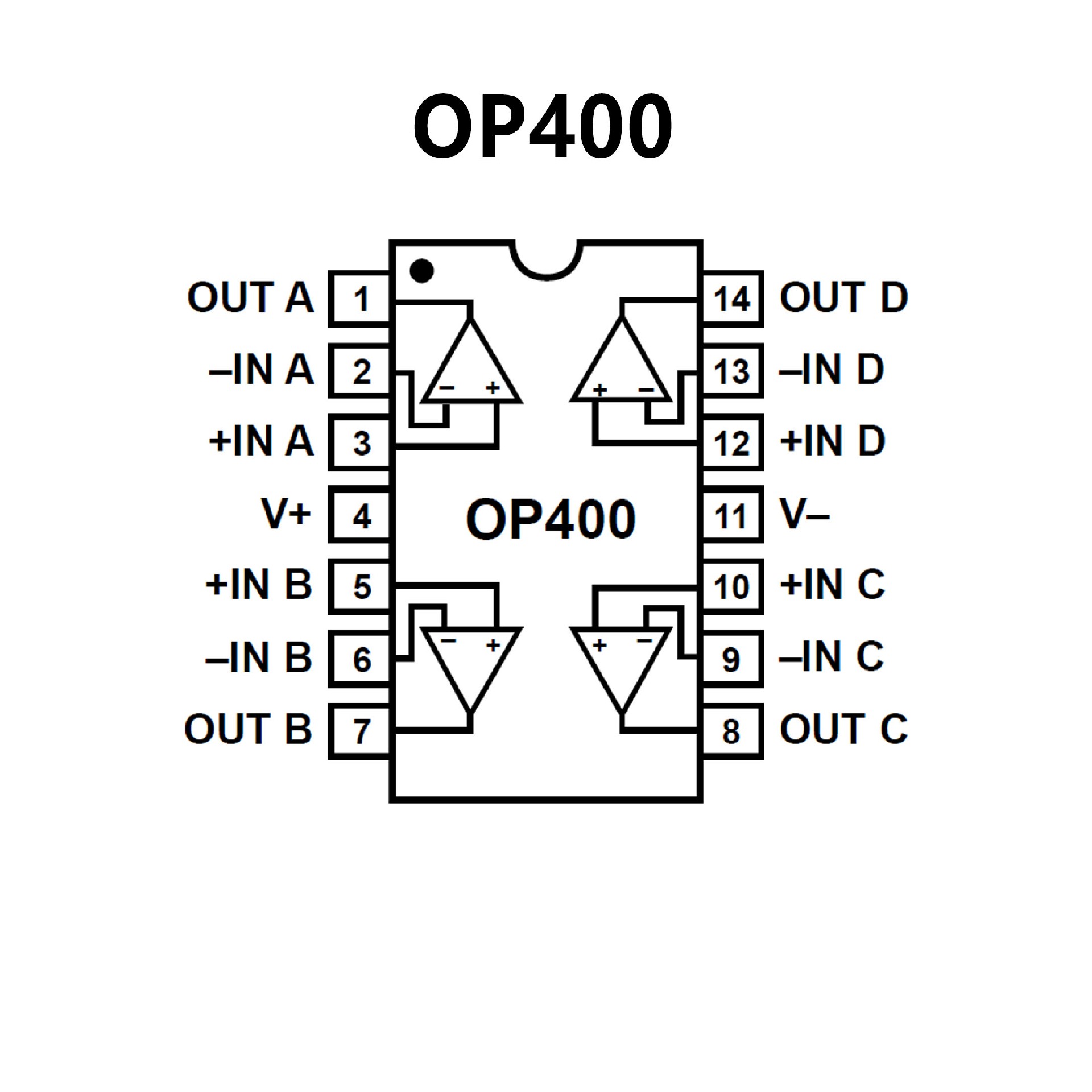

• Low input offset voltage: 150 μV (maximum)
• Low offset voltage drift over –55°C to +125°C: 1.2 μV/°C
(maximum)
• Low supply current (per amplifier): 725 μA (maximum)
High open-loop gain: 5000 V/mV (minimum)
• Input bias current: 3 nA (maximum)
• Low noise voltage density: 11 nV/√Hz at 1 kHz
• Stable with large capacitive loads: 10 nF typical
• Available in die form
