SGM8295.pdf• Low Noise: 4.5nV/ Hz
• Rail-to-Rail Output
• Very Low Offset Voltage: 250μV (MAX)
• Low Bias Current: ±1nA (TYP)
• High Gain-Bandwidth Product: 9MHz
• High Slew Rate: 8V/μs
• High Open-Loop Gain: 130dB at VS = ±15V
• High PSRR: 145dB
• Settling Time to 0.1% with 1V Step: 1μs
• Overload Recovery Time: 10μs
• Operating Voltage Range:
3.6V to 36V or ±1.8V to ±18V
• Input Common Mode Voltage
Range:(-VS) + 1.5V to (+VS) - 2V
• Low Supply Current:
1.5mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:

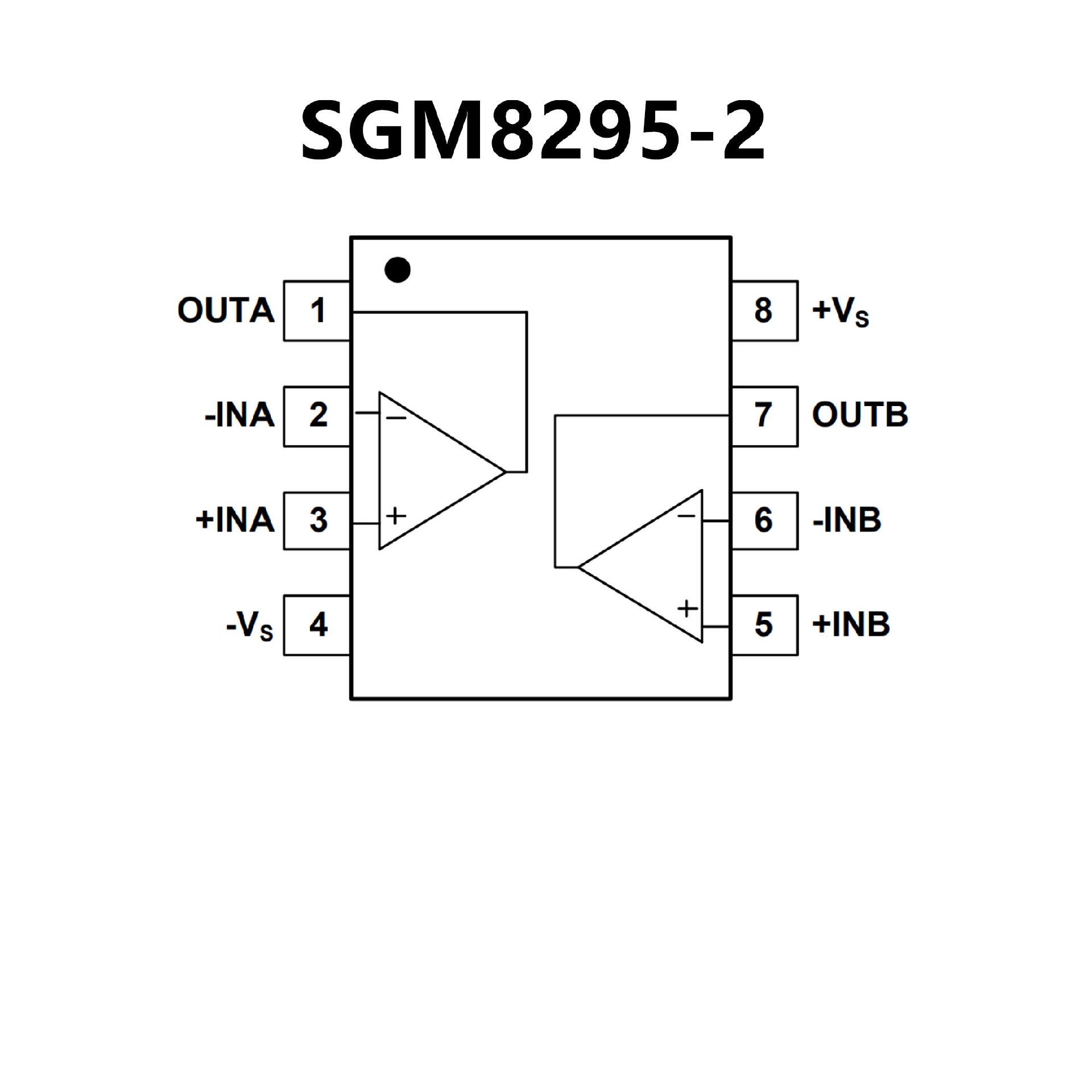

SGM8295-1 Available in Green SOT-23-5 andSOIC-8 Packages
SGM8295-2 Available in Green SOIC-8 and MSOP-8 Packages
SGM8295-4 Available in Green SOIC-14 Packag
• Single or dual supply, rail-to-rail output
and below ground (V-) input capability
• Rail-to-rail input differential voltage
range for comparatorapplications
• Single supply range 3V to 40V
• Low current consumption
(VS = ±5V) 165µA
• Low noise voltage15.8nV/√Hz
• Low noise current 80fA/√Hz
• Low input offset voltage

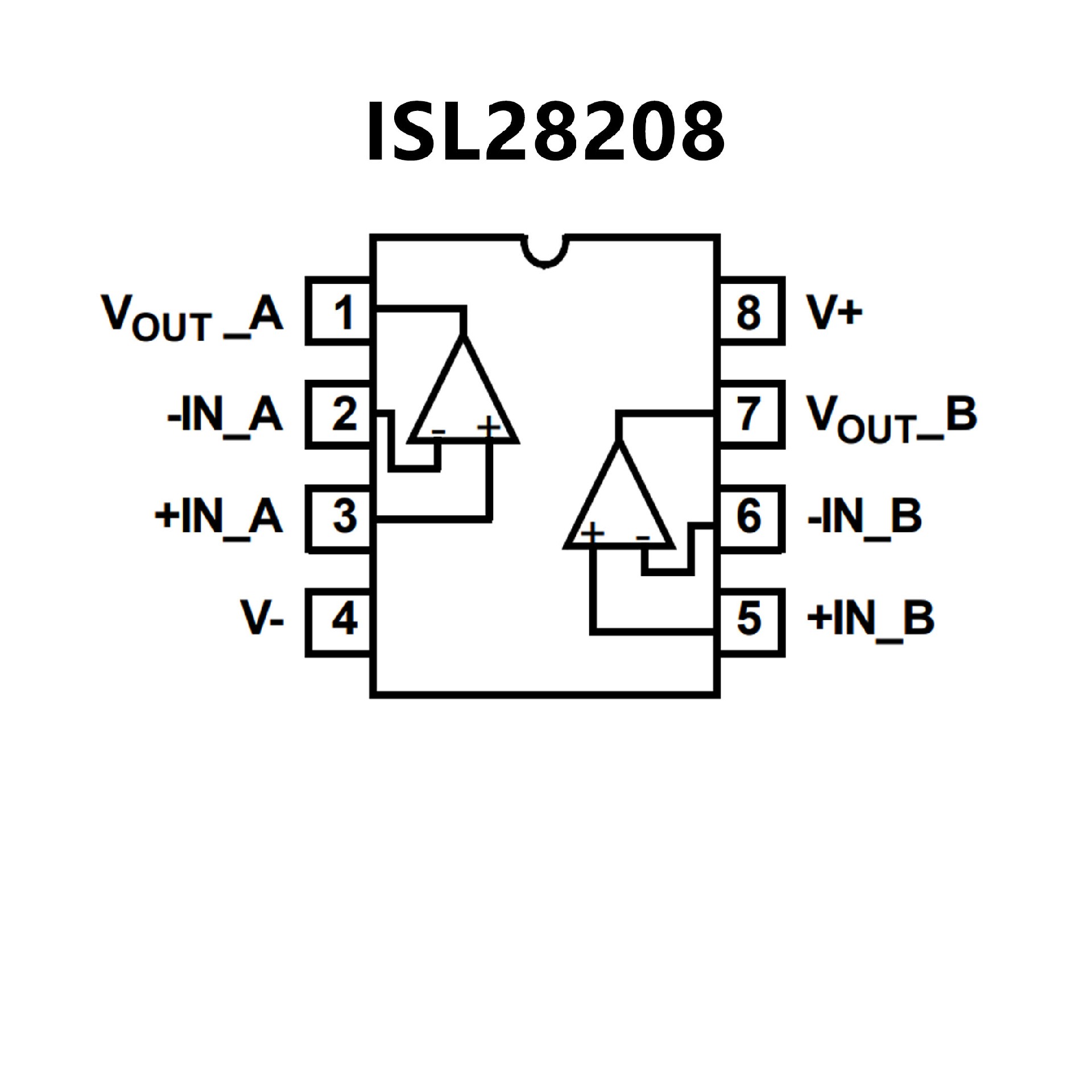

(ISL28108) 150µV
• Superb temperature drift
- Voltage
offset TC 0.1µV/°C, Typ
• Low input bias current-13nA Typ
• Operating temperature
range-40°C to +125°C
• No phase reversal
