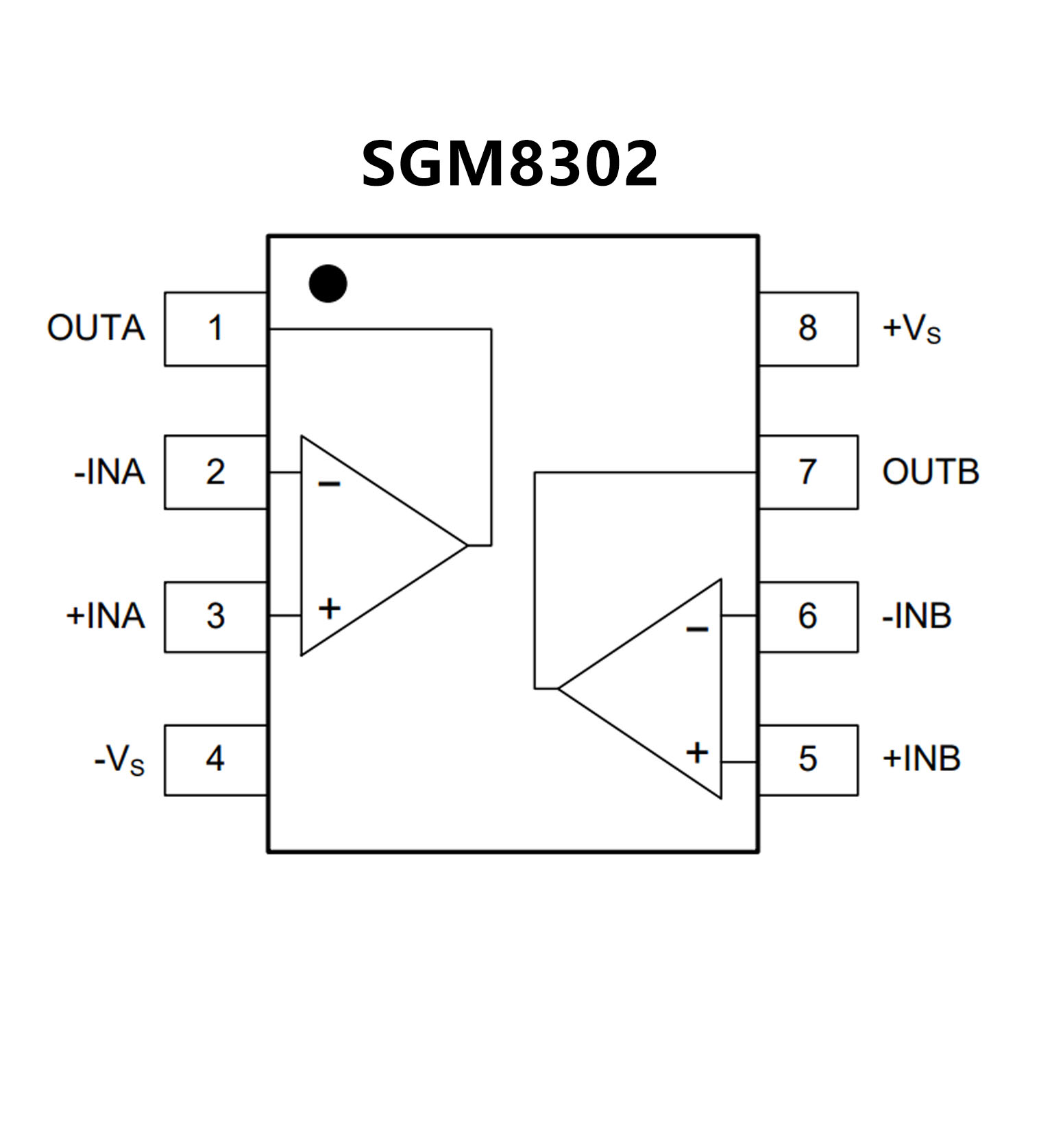

SGM8302.pdf• 4.5V to 12V Single Supply or ±2.25V
to ±6V
Dual Power Supplies
• High Speed:
100MHz -3dB Bandwidth
56MHz -0.1dB Gain Flatness
155V/µs Slew Rate
• Rail-to-Rail Output
• Low Differential Gain/Phase: 0.02%/0.02°
• High Output Drive: 103mA
• -40℃ to +85℃ Operating Temperature Range
• Small Packaging:
SGM8301 Available in
SOT-23-5, SOIC-8
and MSOP-8
SGM8302 Available
in MSOP-8 and SOIC-8
SGM8304 Available in
SOIC-14 and TSSOP-14

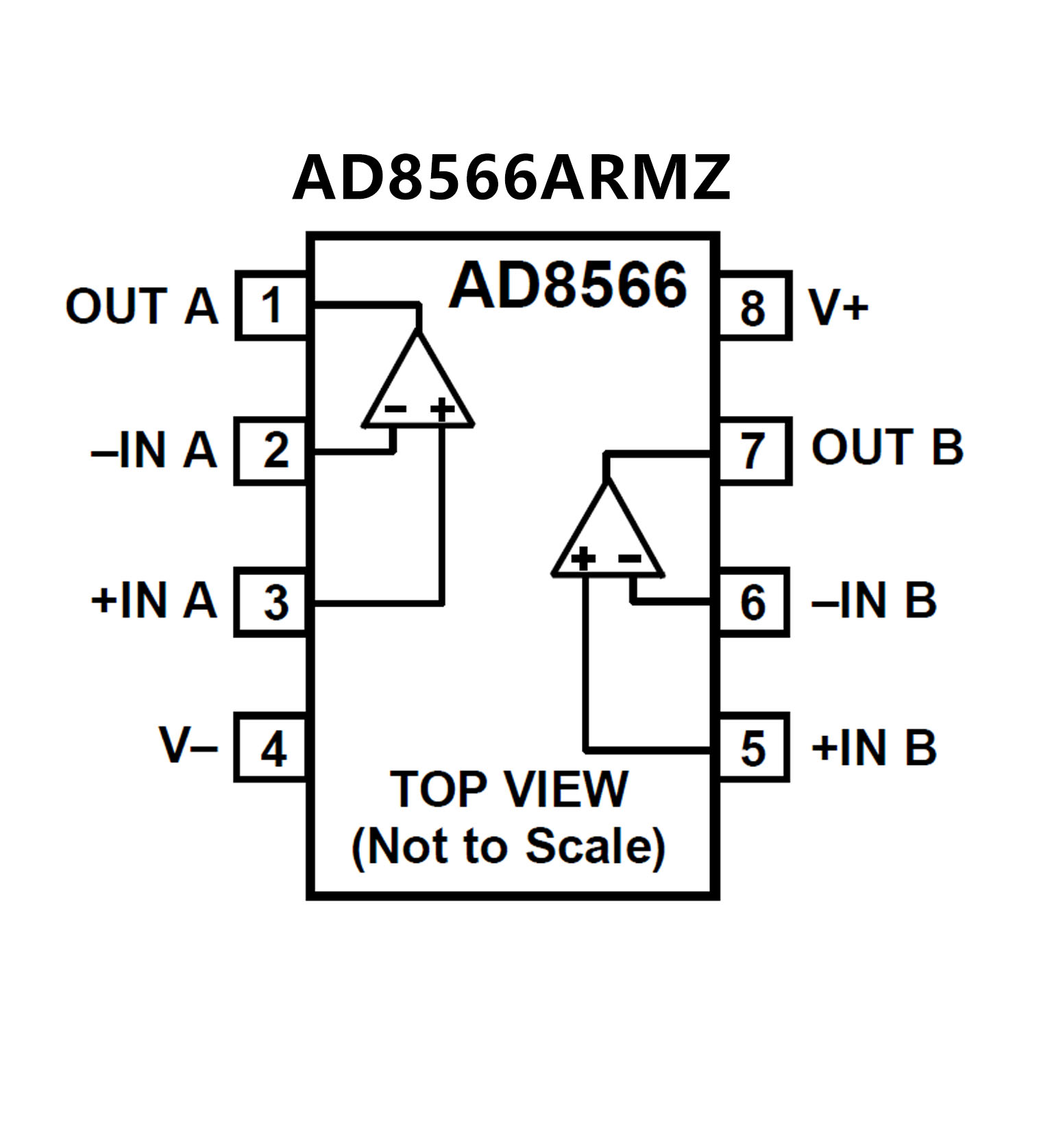

• Single-supply operation: 4.5 V to 16 V
• Input capability beyond the rails
• Rail-to-rail output swing
Continuous
• output current: 35 mA
Peak output
• current: 250 mA
Offset voltage: 10 mV
• Slew rate: 6 V/μs
Unity gain stable with
• large capacitive loads
Supply current: 700 μA
• per amplifier
Qualified for automotive applications
