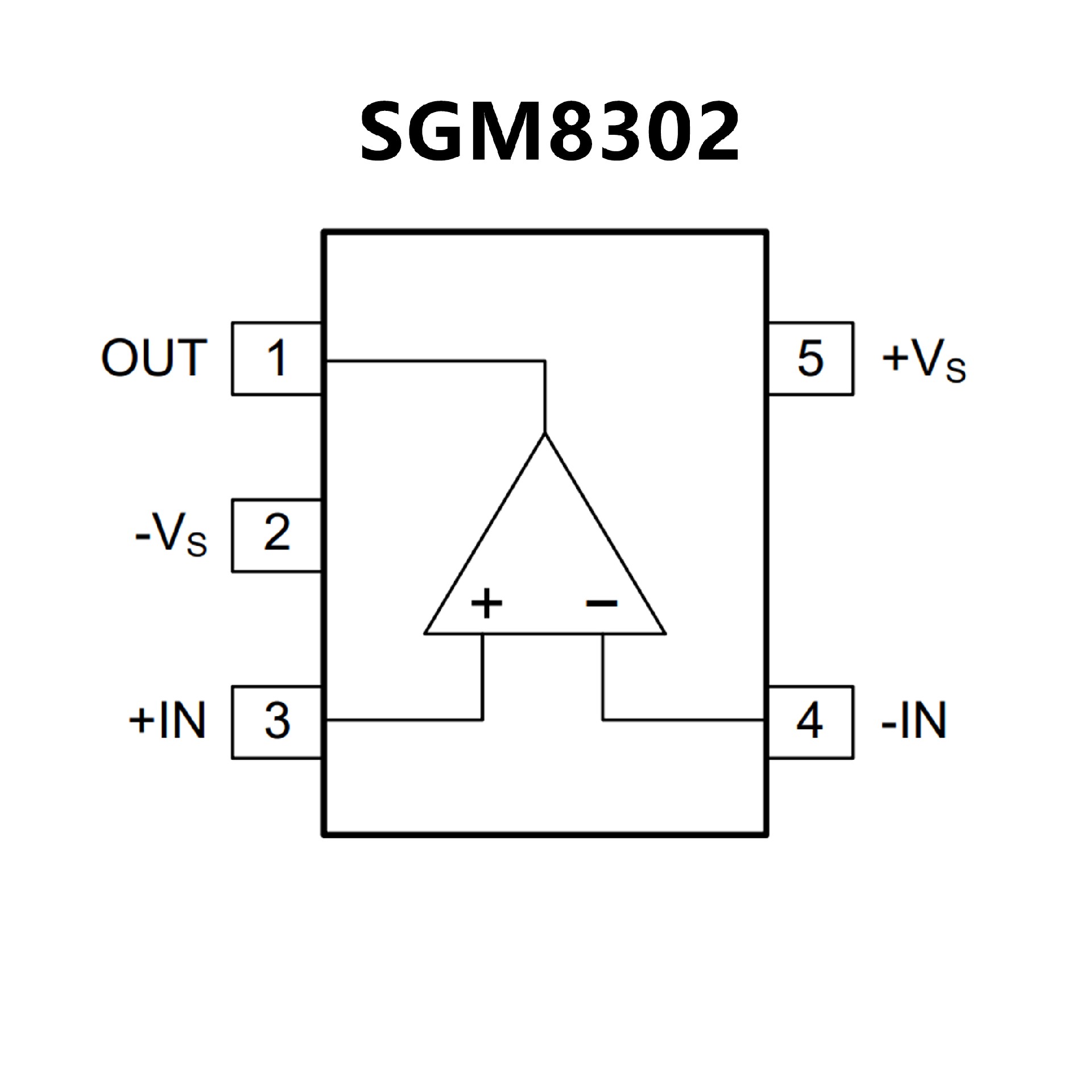

SGM8302.pdf• 4.5V to 12V Single Supply or ±2.25V
to ±6VDual Power Supplies
• High Speed:100MHz -3dB Bandwidth
56MHz -0.1dB Gain Flatness155V/µs Slew Rate
• Rail-to-Rail Output
• Low Differential Gain/Phase: 0.02%/0.02°
• High Output Drive: 103mA
• -40℃ to +85℃ Operating Temperature Range
• Small Packaging:
SGM8301 Available in SOT-23-5, SOIC-8and MSOP-8
SGM8302 Available in MSOP-8 and SOIC-8
SGM8304 Available in SOIC-14 and TSSOP-14

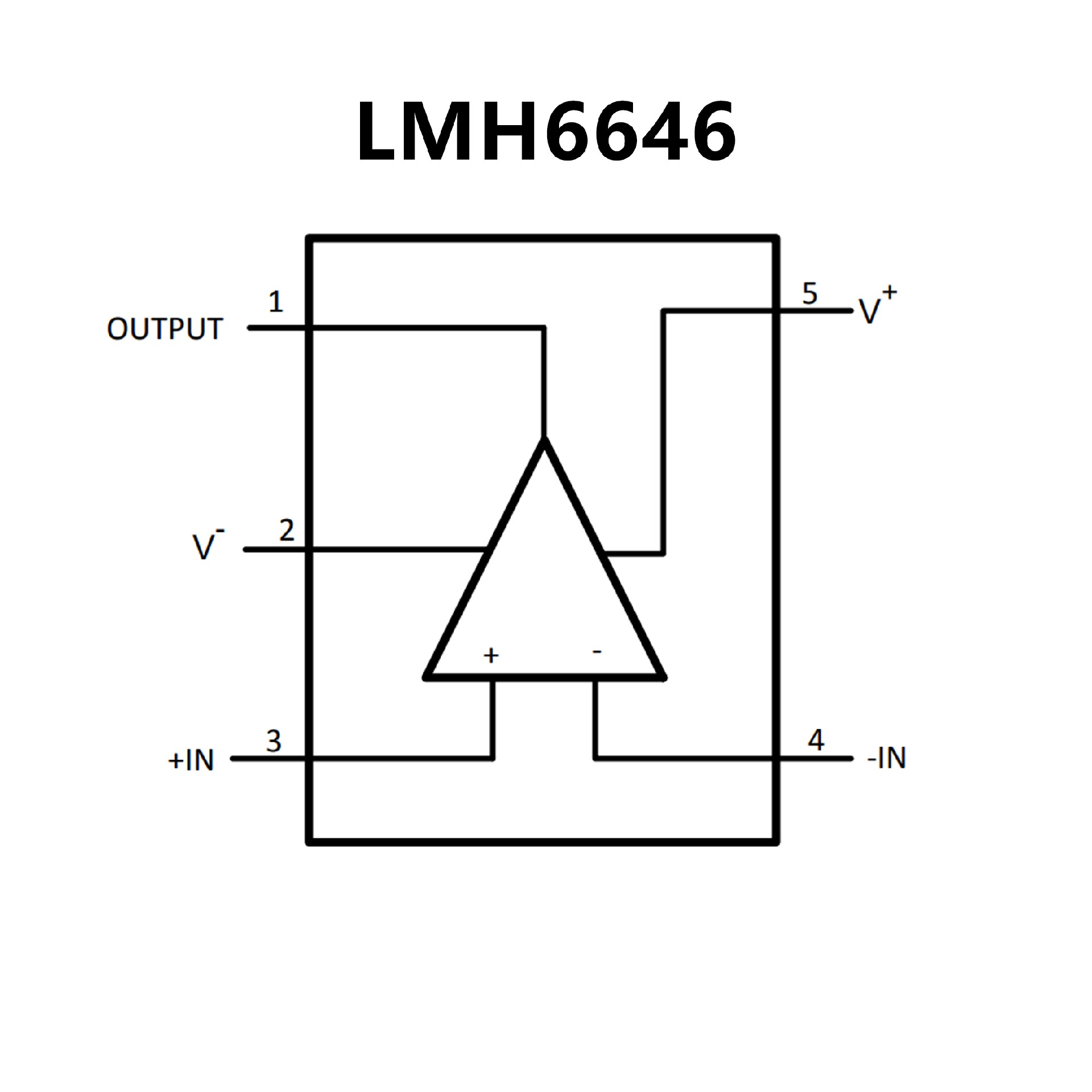

• (VS = 2.7V, TA = 25°C, RL = 1kΩ to V+/2, AV = +1.
• Typical Values Unless Specified.
• −3dB BW 55 MHz
• Supply Voltage Range 2.5 V to 12 V
• Slew Rate 22 V/μs
• Supply Current 650 μA/channel
• Output Short Circuit Current 42 mA
• Linear Output Current ±20 mA
• Input Common Mode Voltage 0.3 V Beyond Rails
• Output Voltage Swing 20 mV from Rails
• Input Voltage Noise 17 nV/√Hz
• Input Current Noise 0.75 pA/√Hz
