SGM8304.pdf• 4.5V to 12V Single Supplies or ±2.25V to ±6V
Dual Power Supplies
• High Speed
100MHz -3dB Bandwidth
56MHz -0.1dB Gain Flatness
155V/µs Slew Rate
• Rail-to-Rail Output
• Low Differential Gain/Phase: 0.02%/0.02°
• High Output Drive: 103mA
• -40℃ to +85℃ Operating Temperature Range
• Small Packaging:

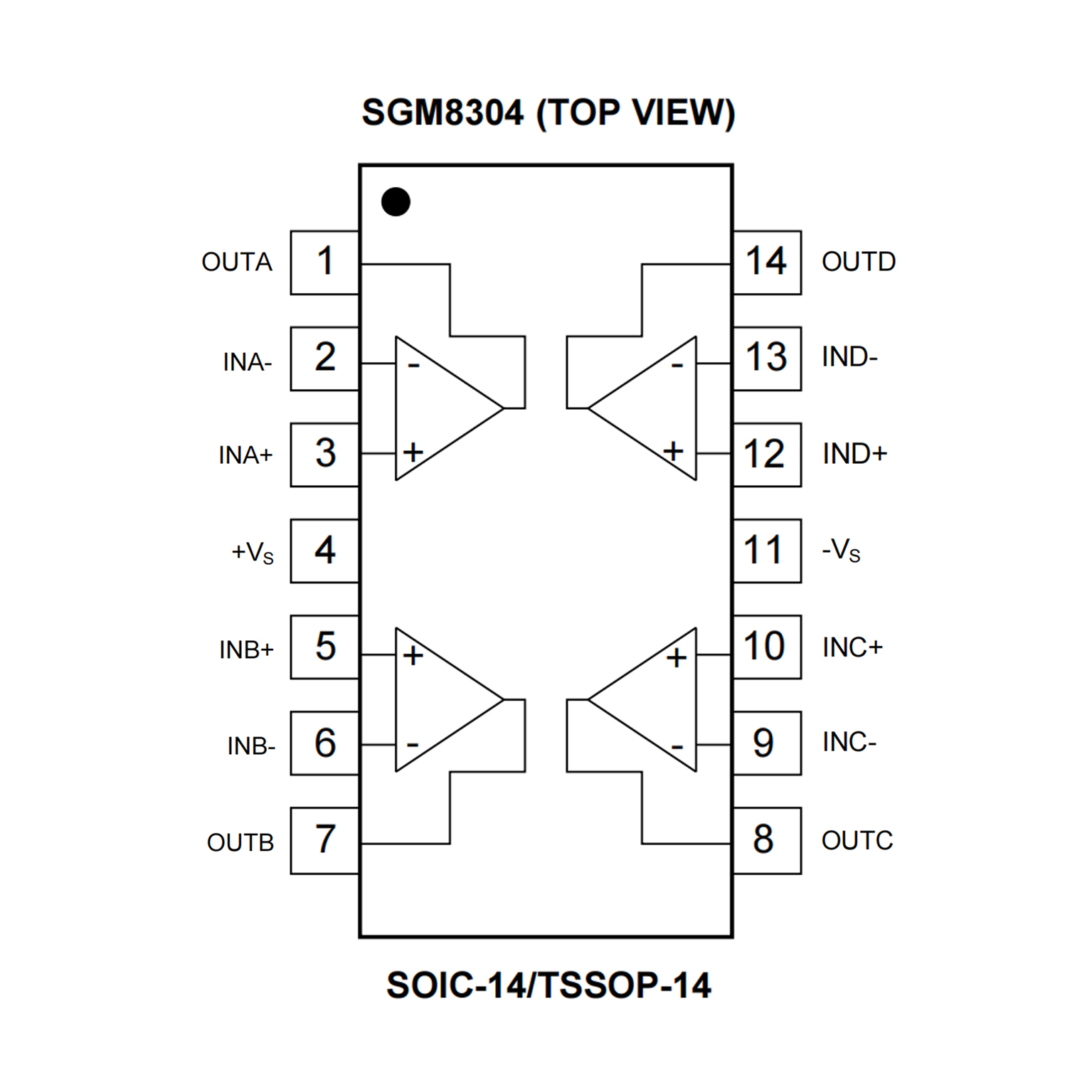

SGM8304 Available in SOIC-14 and TSSOP-14

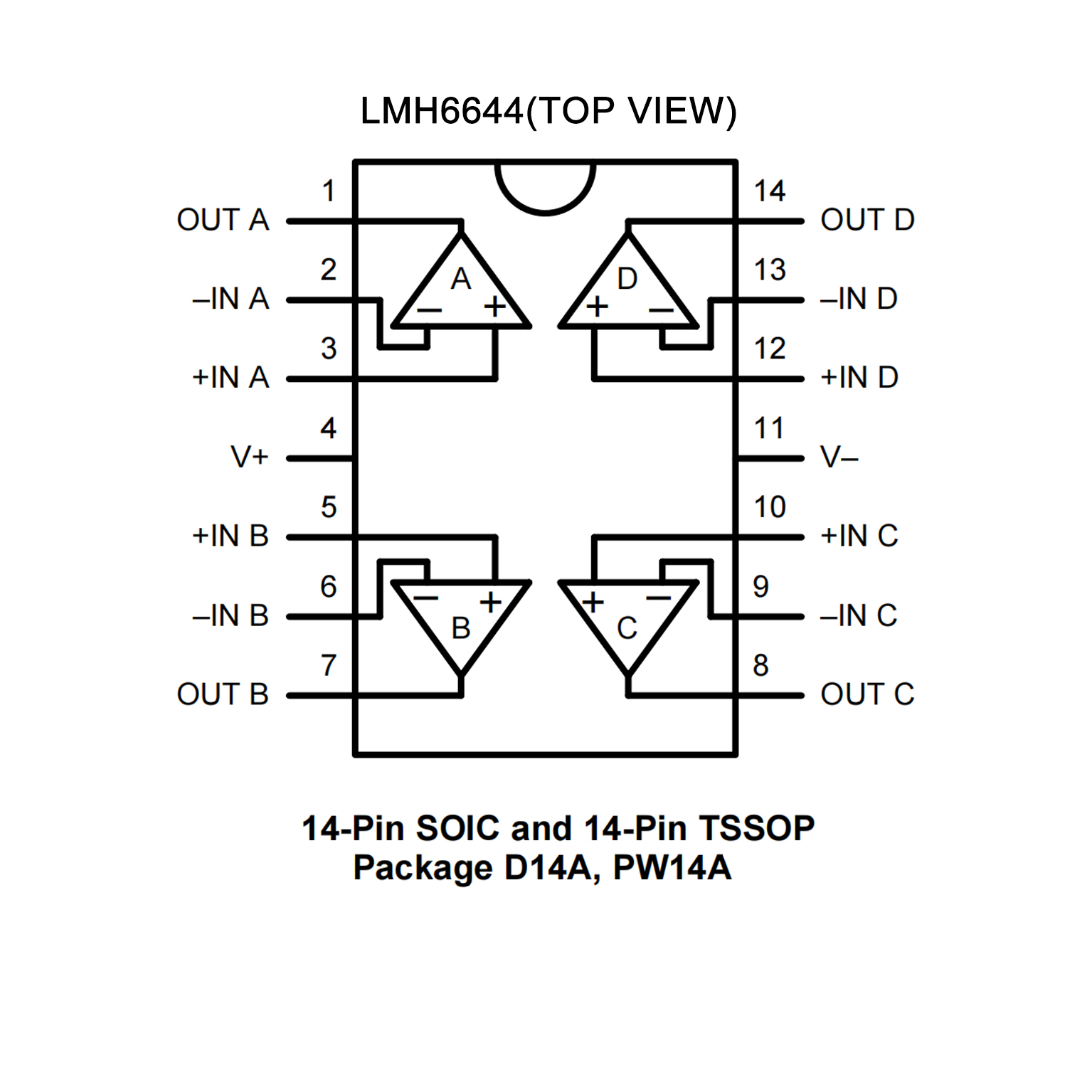

(VS = ±5 V, TA = 25°C, RL = 2 kΩ, AV = +1. Typical Values Unless Specified).• −3 dB BW (AV = +1) 130 MHz
• Supply Voltage Range 2.7 V to 12.8 V
• Slew Rate, (AV = −1) 130V/µs
• Supply Current (no load) 2.7 mA/amp
• Output Short Circuit Current +115 mA to 145 mA
• Linear Output Current ±75 mA
• Input Common Mode Volt. 0.5 V Beyond V−, 1 V from V+
• Output Voltage Swing 40 mV from Rails
• Input Voltage Noise (100 kHz) 17nV/√Hz
• Input Current Noise (100 kHz) 0.9pA/√Hz
• THD (5 MHz, RL = 2 kΩ, VO = 2 VPP, AV = +2) −62 dBc
• Settling Time 68 ns
• Fully Characterized for 3 V, 5 V, and ±5 V
• Overdrive Recovery 100 ns
• Output Short Circuit Protected•
• No Output Phase Reversal with CMVR Exceeded
