INA226 High-Side or Low-Side Measurement,Bi-Directional Current and Power Monitor with I2C Compatible Interface.
SGM832
SGM832.pdf
SGM832.pdfFEATURES
• 2.7V to 5.5V Supply Voltage Range
• 0V to 36V Senses Bus Voltages
• High-Side or Low-Side Sensing
• Current, Voltage and Power Monitor
• Low Gain Error: 0.02% (TYP)
• Low Input Offset Voltage: 5μV (TYP)
• Programmable Averaging and Conversion Times
• 16 Programmable Addresses
• Available in a Green MSOP-10 Package

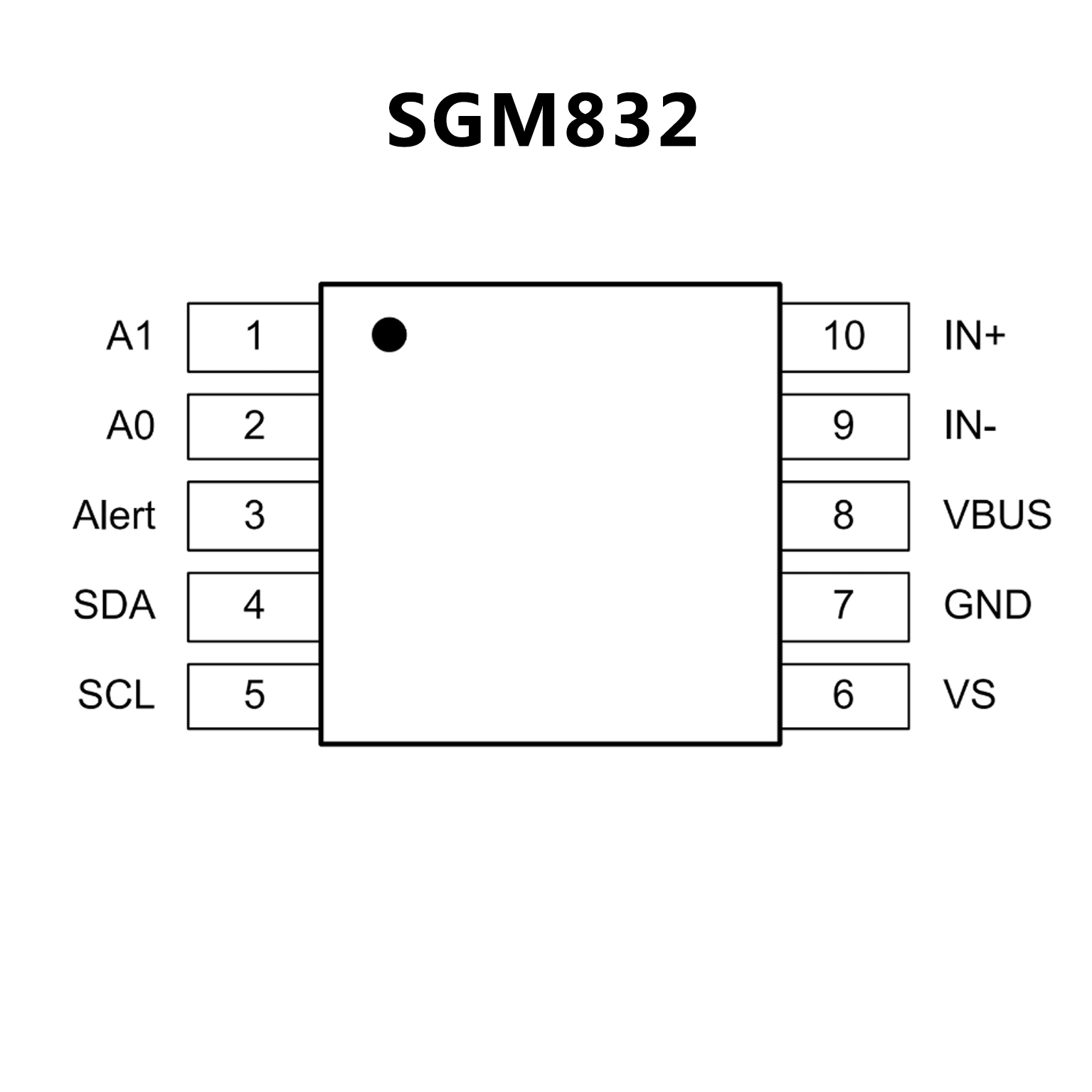

PIN CONFIGUTION
优势替代
FEATURES
• Senses Bus Voltages From 0 V to 36 V
• High-Side or Low-Side Sensing
• Reports Current, Voltage, and Power
• High Accuracy:
0.1% Gain Error (Max)
10 μV Offset (Max)
• Configurable Averaging Options
• 16 Programmable Addresses
• Operates from 2.7-V to 5.5-V Power Supply
• 10-Pin, DGS (VSSOP) Package

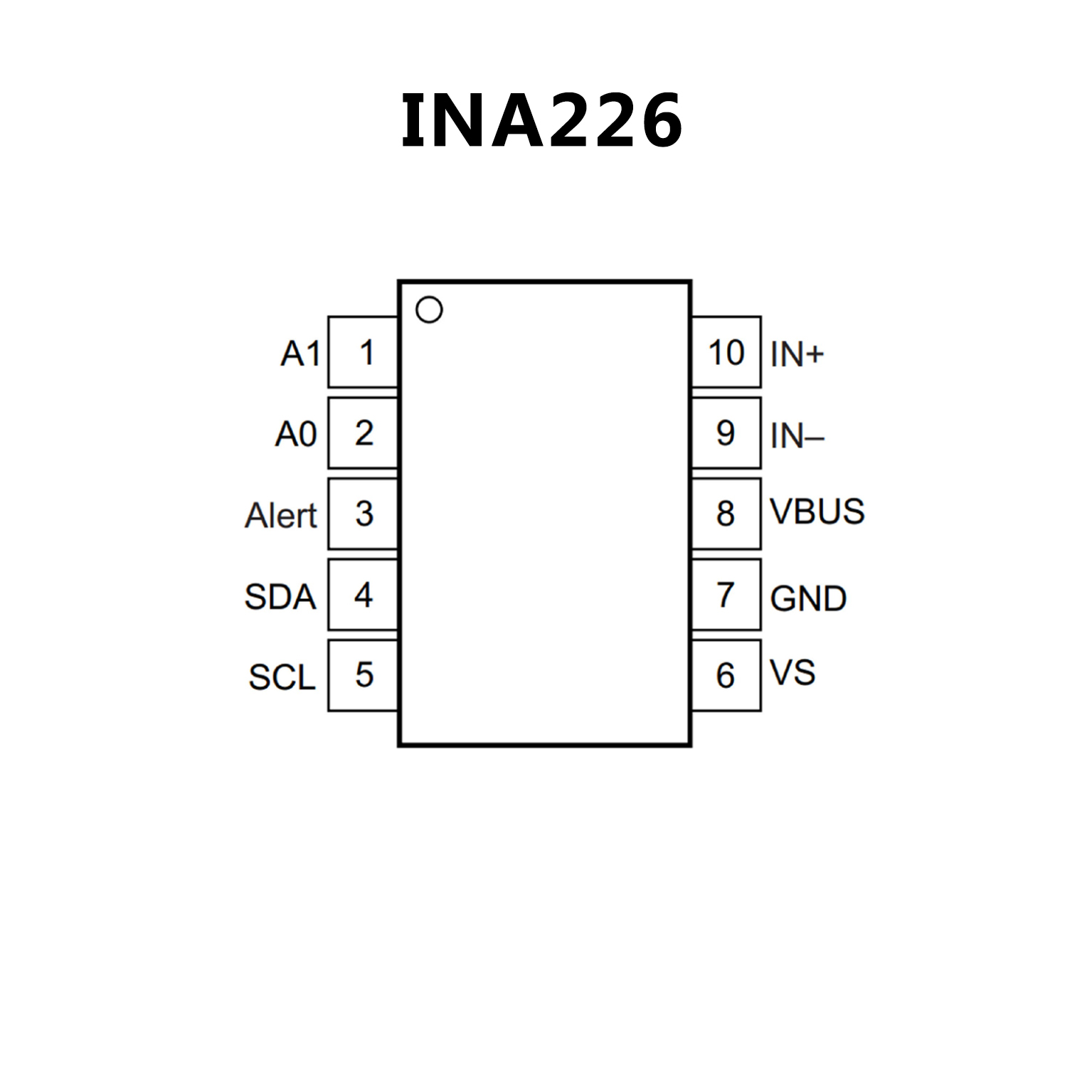

PIN CONFIGUTION
