Dual Channel, High Precision, High Voltage, Current Sense Amplifier, SGM835 Replace MAX44285.
SGM835
SGM835.pdf
SGM835.pdfFEATURES
• Input Common-Mode Voltage Range:
-0.3V to 72V
• Low Input Offset Voltage: 125μV (MAX)
• Gain: 20V/V and 50V/V
• Low Gain Error: 0.2% (MAX)
• Available in a Green MSOP-8 Package

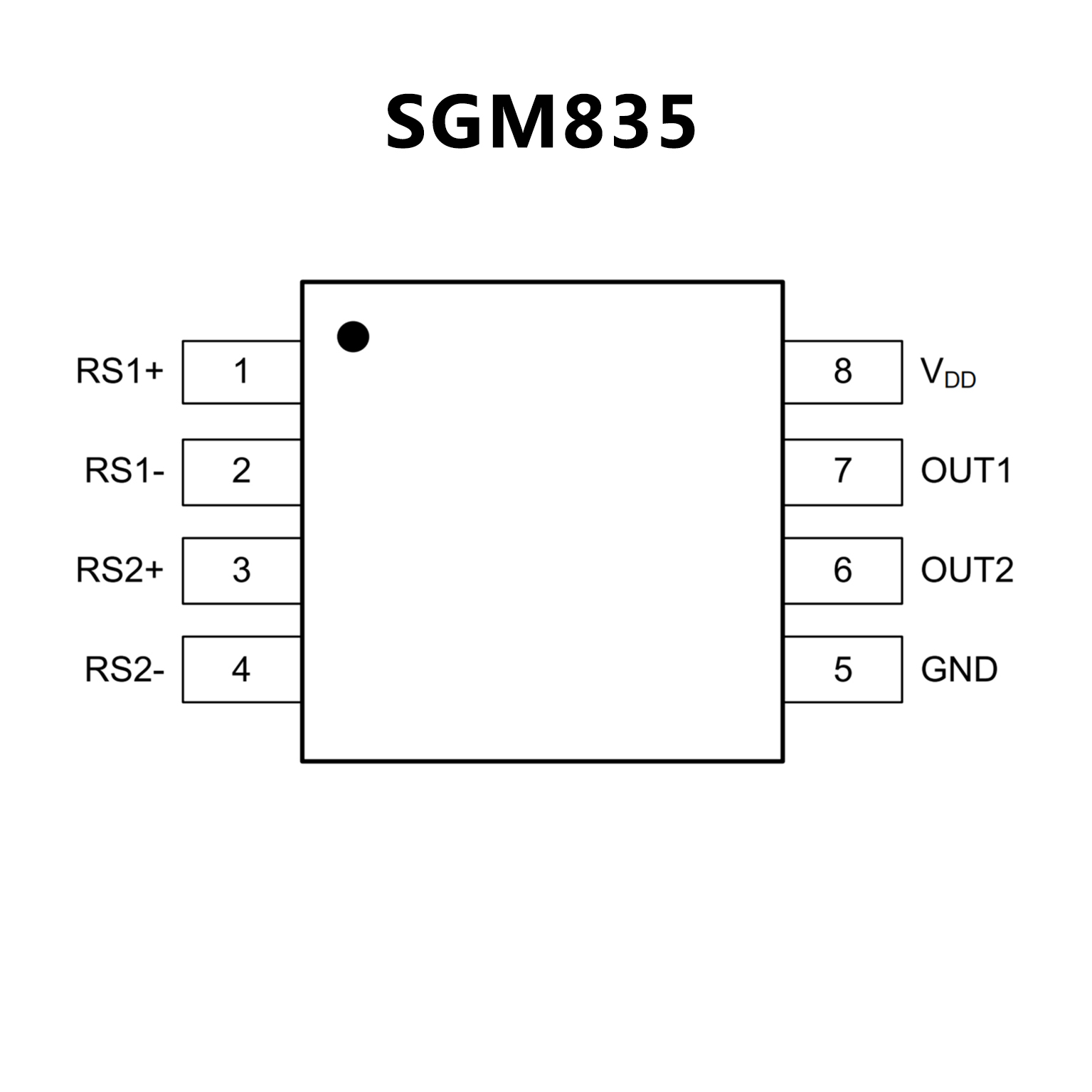

PIN CONFIGUTION
优势替代
FEATURES
• 2.7V to 76V Input Common Mode
• Low 12μV (max) Input Offset Voltage
• Low 0.1% (max) Gain Error
• Gain Options
• G = 12.5V/V (MAX44285L)
• G = 20V/V (MAX44285T)
• G = 50V/V (MAX44285F)
• G = 100V/V (MAX44285H)
• 1mm x 2mm 8-Bump WLP and 8-Pin μMAX
Packages

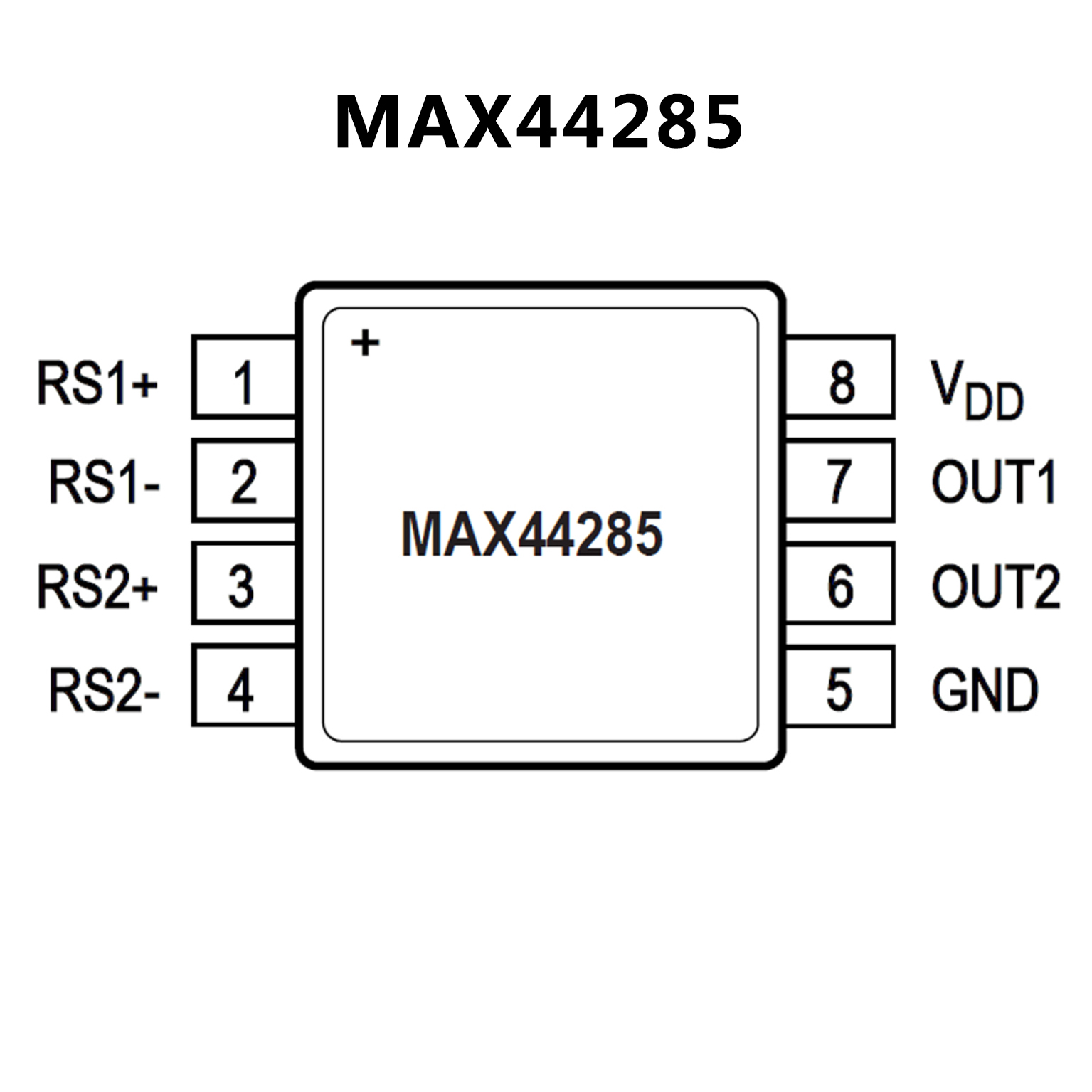

PIN CONFIGUTION
