Low-Quiescent-Current Programmable-Delay Supervisory Circuit, SGM836Q Replace TPS3808-Q1.
FEATURES

 AEC-Q100 Qualified for Automotive Applications

  Device Temperature Grade 1

  TA = -40℃ to +125℃

 Adjustable Reset Timeout Period: 1.1ms to 10s

 Low Quiescent Current: 0.6μA (TYP)

 High Threshold Accuracy: 2.2% (MAX)

 1.8V, 3.3V Factory-Set Detection Voltages and

  Adjustable Detection Voltage Down to 0.4V

 Manual Reset (nMR) Input

 Open-Drain nRESET Output

 Available in Green SOT-23-6 and TDFN-2×2-6GL

  Packages


PIN CONFIGUTION
优势替代
TPS3808-Q1 TPS3808-Q1.pdf

No.14005

FEATURES

• Qualified for Automotive Applications

• Power-On Reset Generator With Adjustable Delay

  Time: 1.25 ms to 10 s

• Very Low Quiescent Current: 2.4 μA Typical

• High Threshold Accuracy: 0.5% Typical

• Fixed Threshold Voltages for Standard Voltage

  Rails From 1.2 V to 5 V and Adjustable Voltage

  Down to 0.4 V Are Available

• Manual Reset (MR) Input

• Open-Drain RESET Output

• Temperature Range: –40°C to +125°C

• Small SOT-23 Package and WSON Package

  (TPS3808G01QDRVRQ1 only)

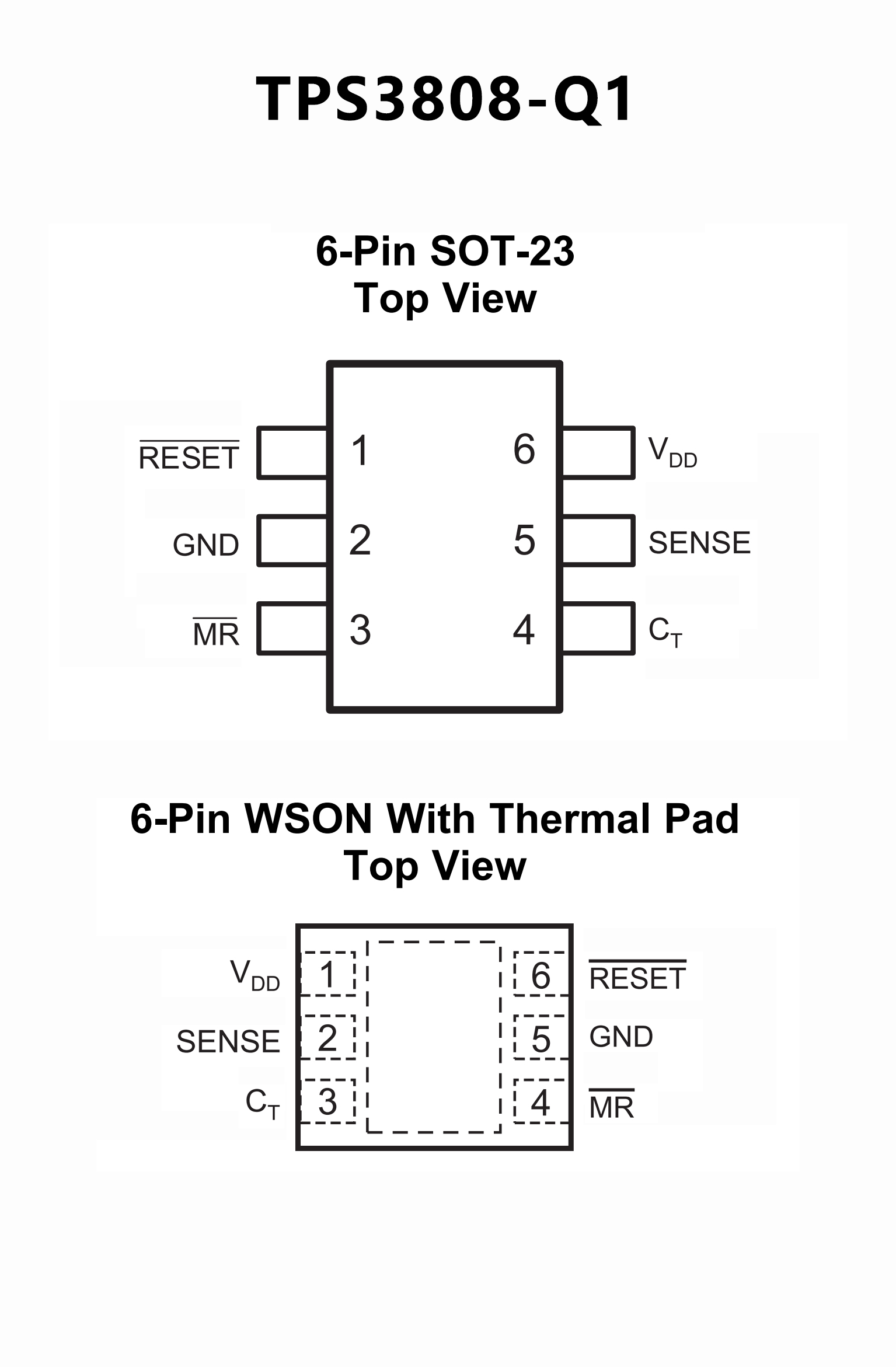

PIN CONFIGUTION
