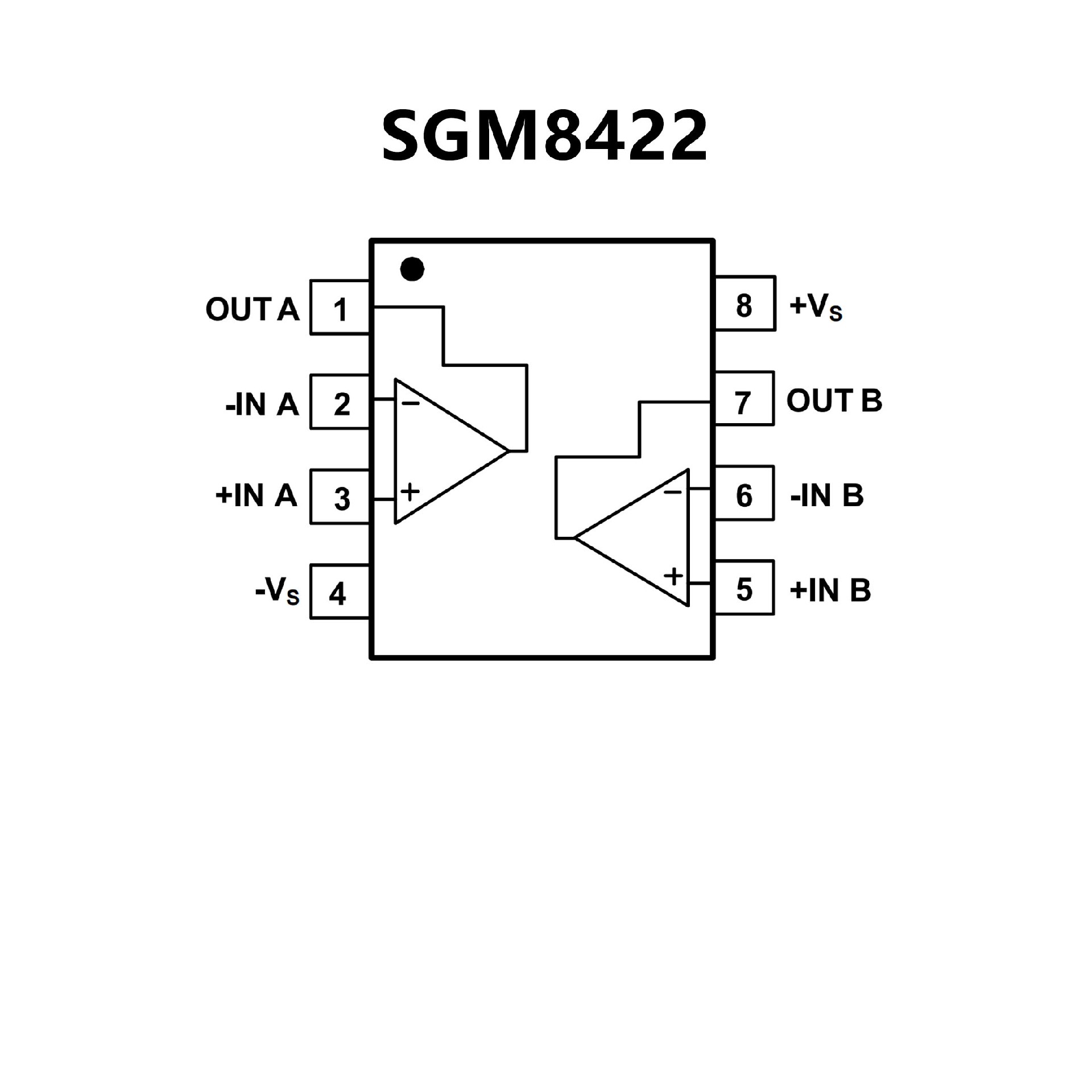

SGM8422.pdf• ±2.5V to ±15V Dual Power Supplies
or a +5V to +30V Single Supply
• Gain Bandwidth Product: 2.2MHz (TYP)
• Supply Current/Amplifier: 0.8mA
• High Slew Rate: 1.9V/µs
• High Output Voltage Swing: 3.96V
(with 70mA Output Current at VS = +5V)
• Low Output Voltage Swing: 0.96V
(with 70mA Output Current at VS = +5V)
• Beyond the Rails Input Capability
• Rail-to-Rail Output Swing
• Green SOIC-8 and MSOP-8 Packages
• -40℃ to +85℃ Operating Temperature Range

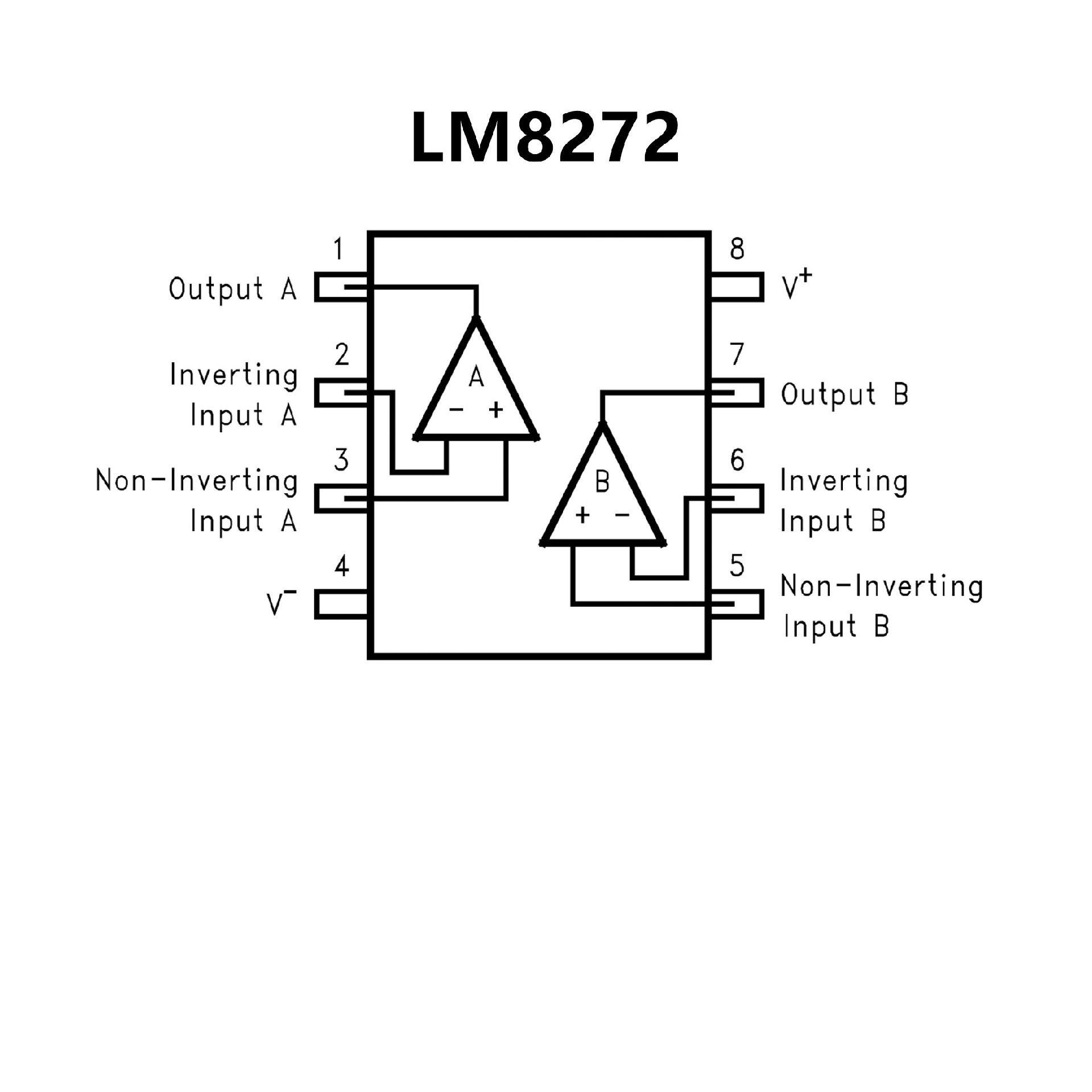

• (VS = 12V, TA = 25°C, Typical values unless 1specified).
• GBWP 15MHz
• Wide supply voltage range 2.5 V to 24 V
• Slew rate 15 V/µs
• Supply current/channel 0.95 mA
• Cap load tolerance Unlimited
• Output short circuit current ±13 0mA
• Output current (1 V from rails) ±65 mA
• Input common mode voltage 0.3 V beyond rails
• Input voltage noise 15 nV/√Hz
• Input current noise 1.4 pA/√Hz
