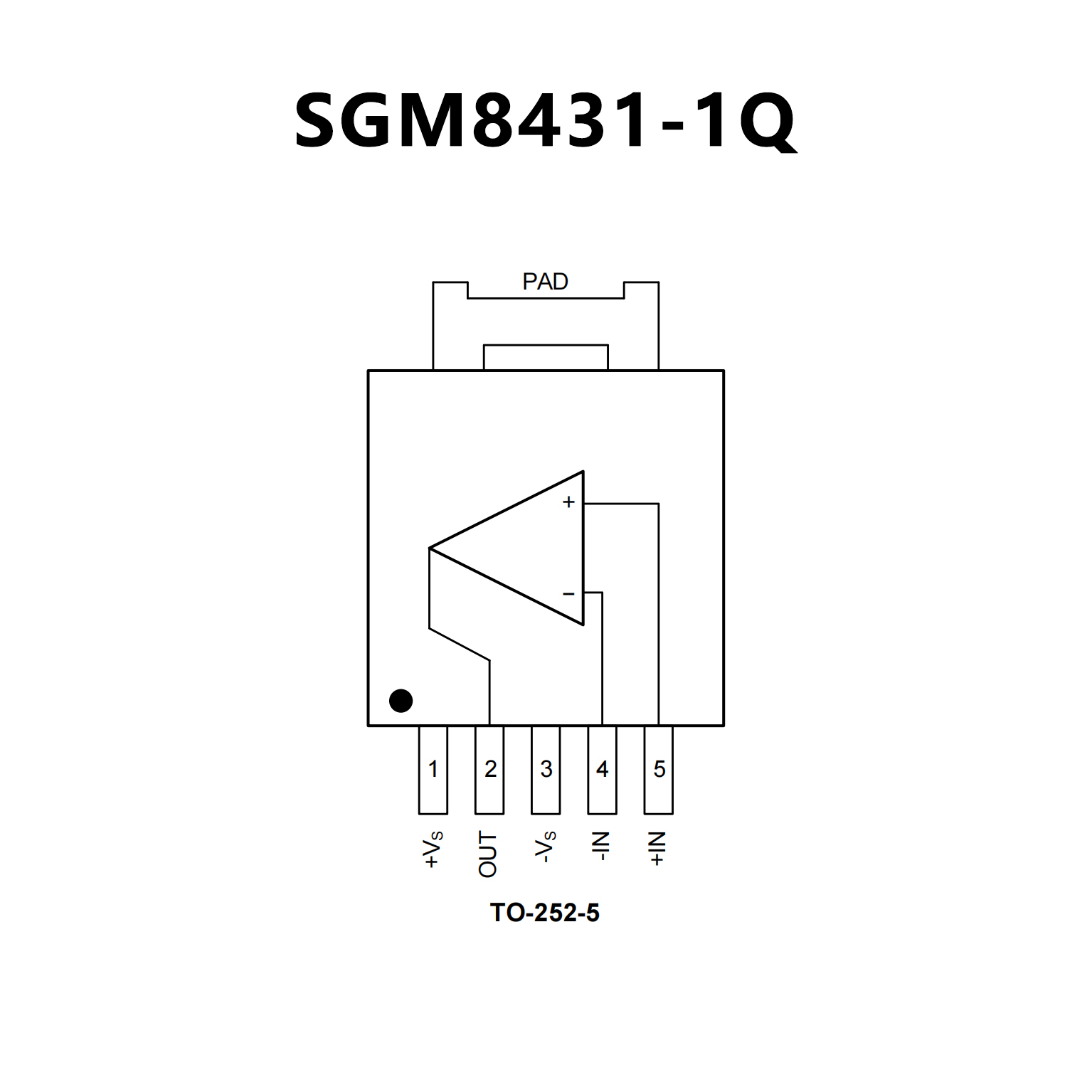

SGM8431-1Q.pdf• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• High Output Current: ±200mA (MIN)
• Rail-to-Rail Input and Output
• Supply Voltage Range: 4.5V to 36V
• Supply Current: 10mA (TYP)
• Input Bias Current: ±250pA (MAX) at +25℃
• Open-Loop Voltage Gain: 106dB (TYP)
• Unity-Gain Frequency: 4.5MHz (TYP)
• Slew Rate: 3.5V/μs (TYP)
• Thermal Shutdown
• Current-Limit Protection
• Available in a Green TO-252-5 Package
• High output current ±100mAtyp. (200mApp typ.)
• Wide Operating Temperature Topr = -40ºC to +125ºC
• Rail-to-Rail Input / Output
• Enhanced RF noise immunity
• Wide Operating Voltage 6.8V to 36V
• Supply Current 9.5mAtyp.
• Open Loop Gain 100dB typ.
• Input Bias Current 1pA typ.
• Slew Rate 3.5V/µs typ.
• Unity Gain Frequency 1.5MHz typ.
• Thermal shutdown
• Current Limit

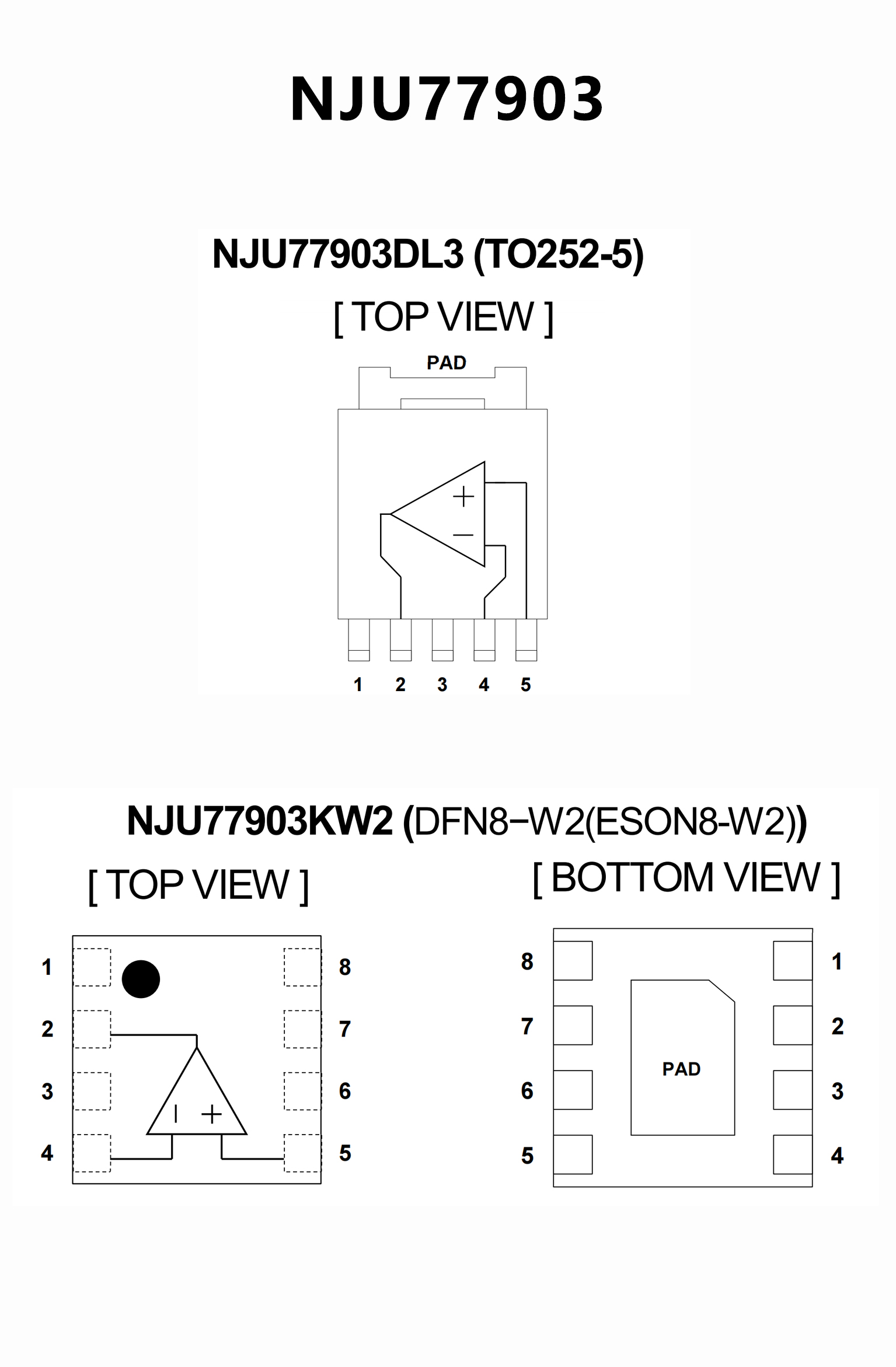

• Package Outline TO252-5
DFN8−W2 (ESON8-W2/Size: 3mm x 3mm)
