Automotive, Low-Distortion, Dual-Channel Operational Amplifier With Integrated Protection for Resolver Drive, SGM8433-2Q P2P ALM2403-Q1.
SGM8433-2Q
SGM8433-2Q.pdf
SGM8433-2Q.pdfFEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Wide Supply Voltage Range: 4.5V to 24V
• Gain-Bandwidth Product: 12MHz
• Slew Rate: 35V/μs
• Functional-Safety Feature
• Over-Temperature Protection
• Current-Limit Protection
• Shutdown Mode for Applications with Low IQ
• Available in a Green TSSOP-14B (Exposed Pad) Package

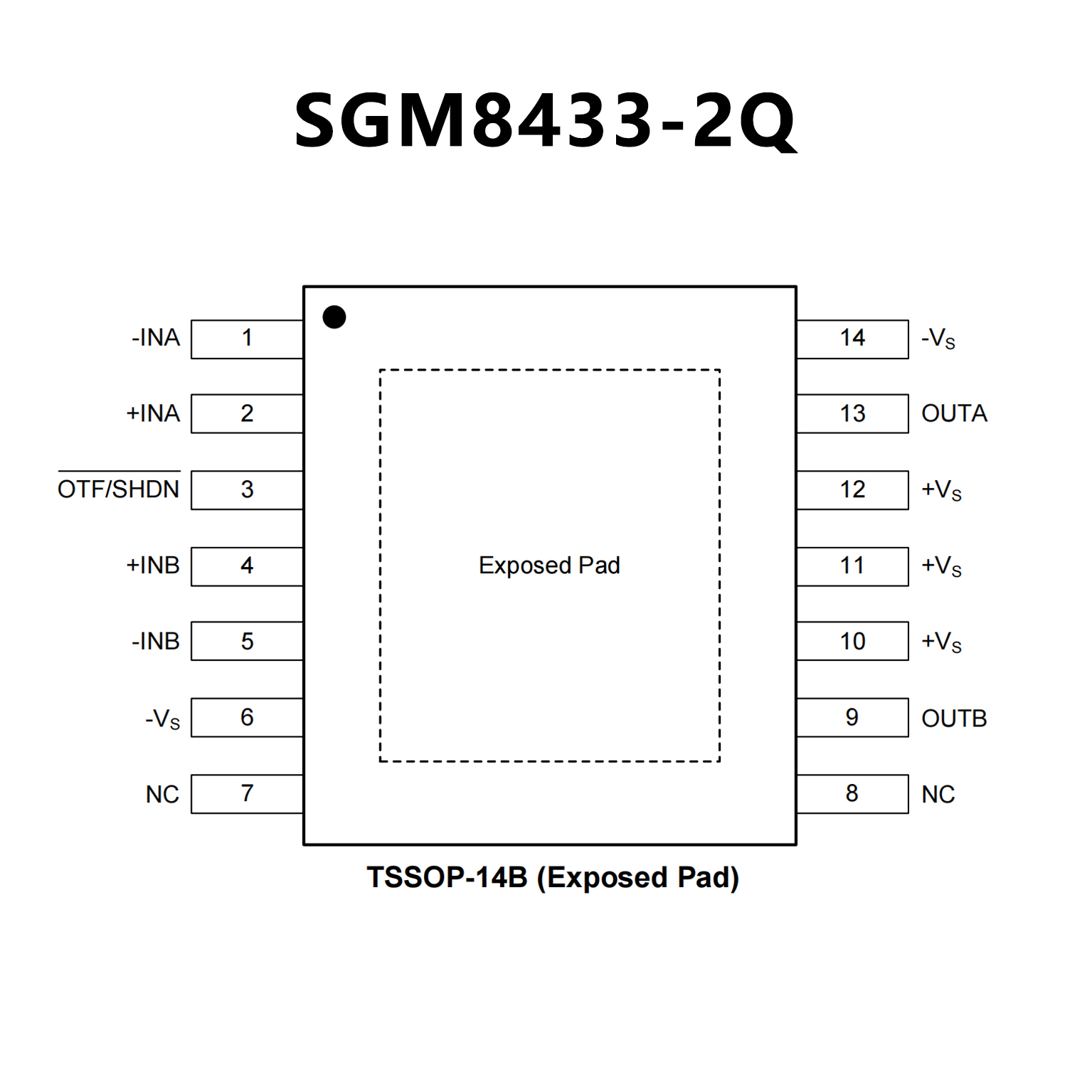

PIN CONFIGUTION
优势替代
FEATURES
• AEC-Q100 qualified for automotive applications:
–Temperature grade 1: –40°C to +125°C, TA
• Functional-safety capable
–Documentation available to aid functional safety
system design
• High output current drive: 500 mA, peak (per channel)
–Replaces discrete op amps and transistors
• Wide supply range for both supplies (up to 24 V)
• Overtemperature shutdown
• Current limit
• Shutdown pin for low IQ applications
• 21-MHz gain bandwidth with 50-V/µs slew rate
• Package: 14-pin HTSSOP (PWP)

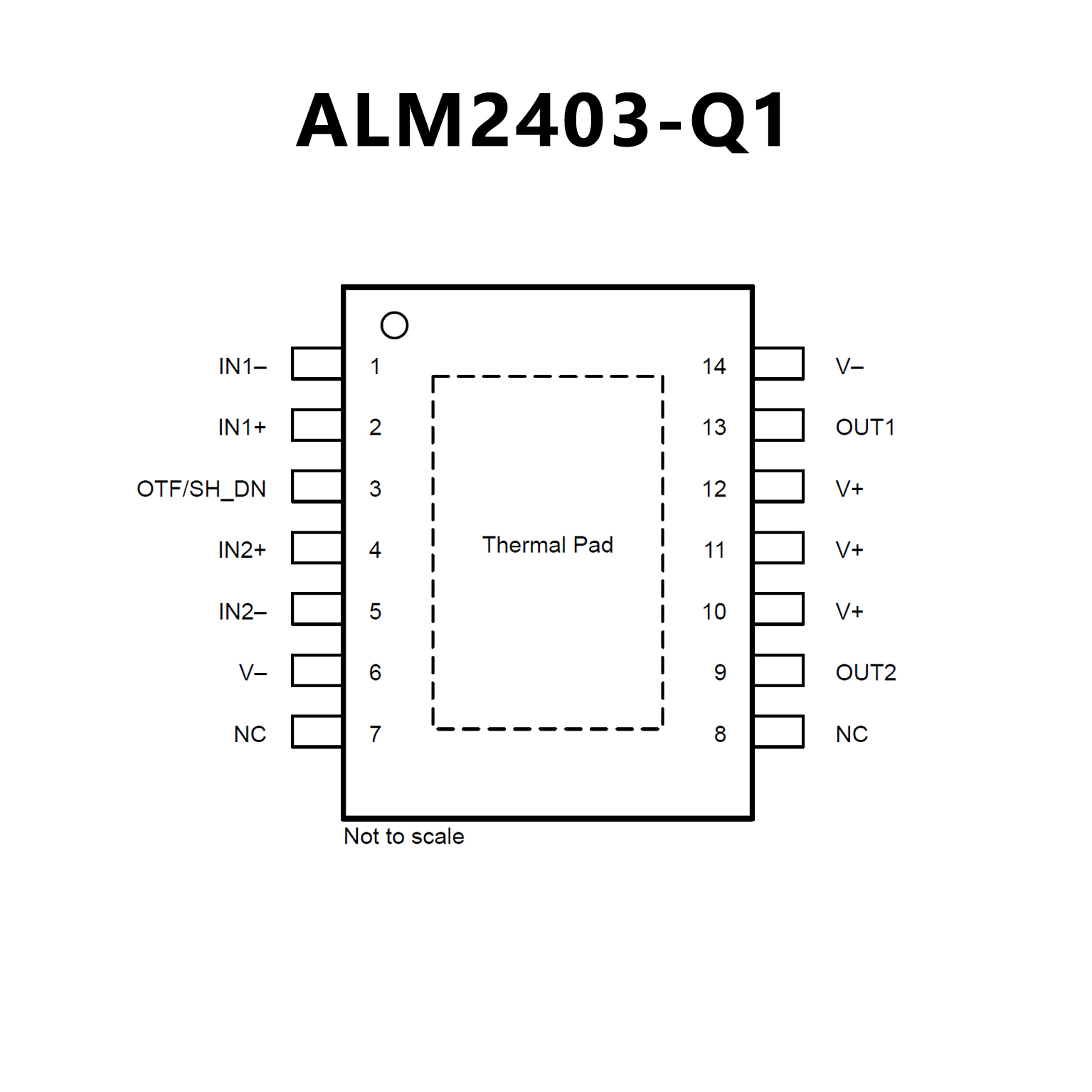

PIN CONFIGUTION
