• Low Offset Voltage: 16μV (MAX)

• 4.5V to 36V Single Supply Operation

• Input Signal Range:

  (-V_S) - 0.1V to (+V_S) + 1V for Dual Power Supplies

  GND - 0.1V to (+V_S) + 1V for Single Power Supply

• Rail-to-Rail Output

• Gain: 50V/V

• PSRR: 0.05μV/V (TYP)

• CMRR: 106dB (TYP)

• 0.1Hz to 10Hz Noise: 0.75μVP-P

• Input Voltage Noise Density: 39nV/Hzat 1kHz

• -3dB Bandwidth: 230kHz

• Integrated Matched Resistors for Differential Applications

• Supply Current: 1.55mA (TYP)

• -40℃ to +125℃ Operating Temperature Range

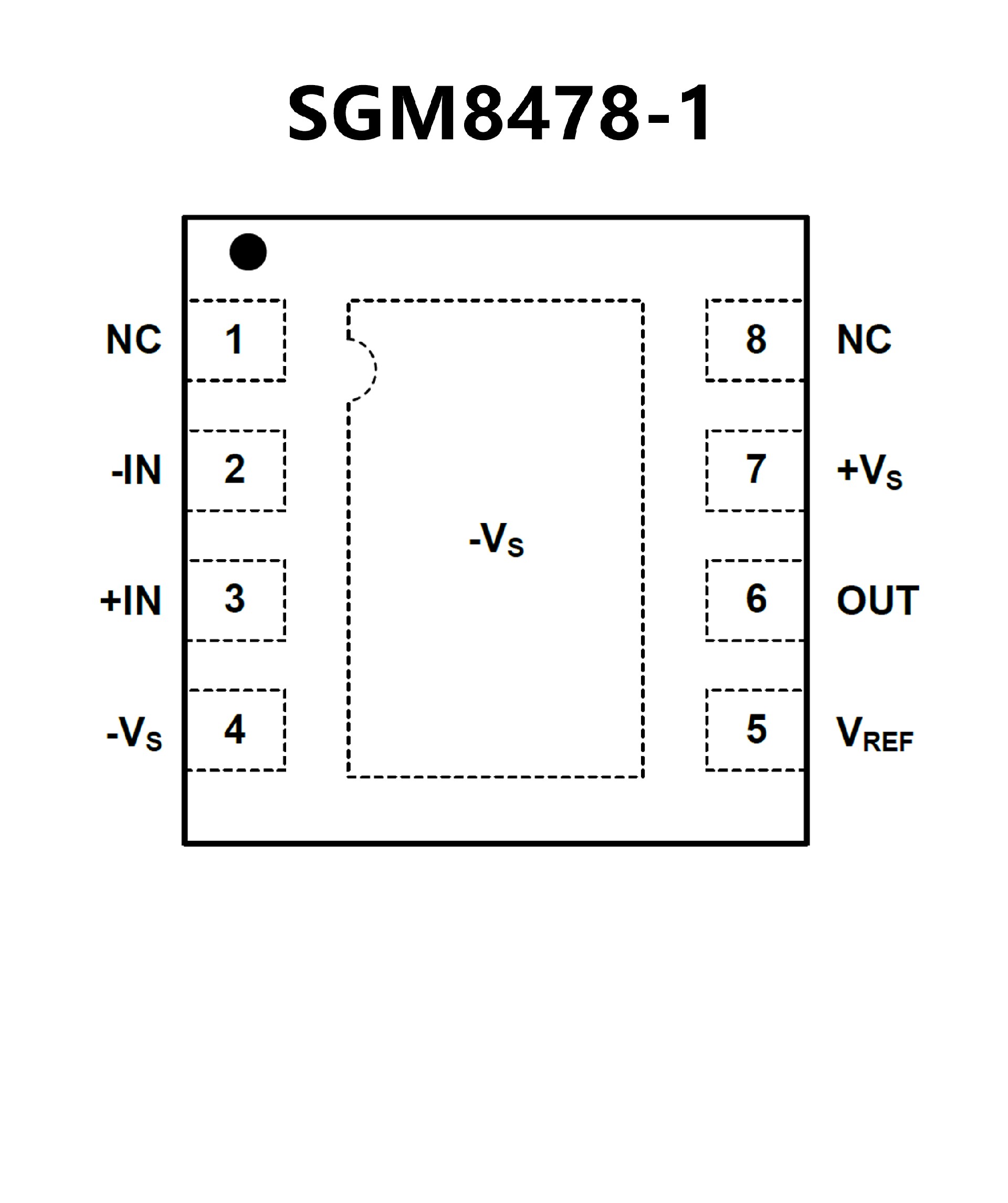

• Available in Green SOIC-8 and TDFN-3×3-8L Packages
