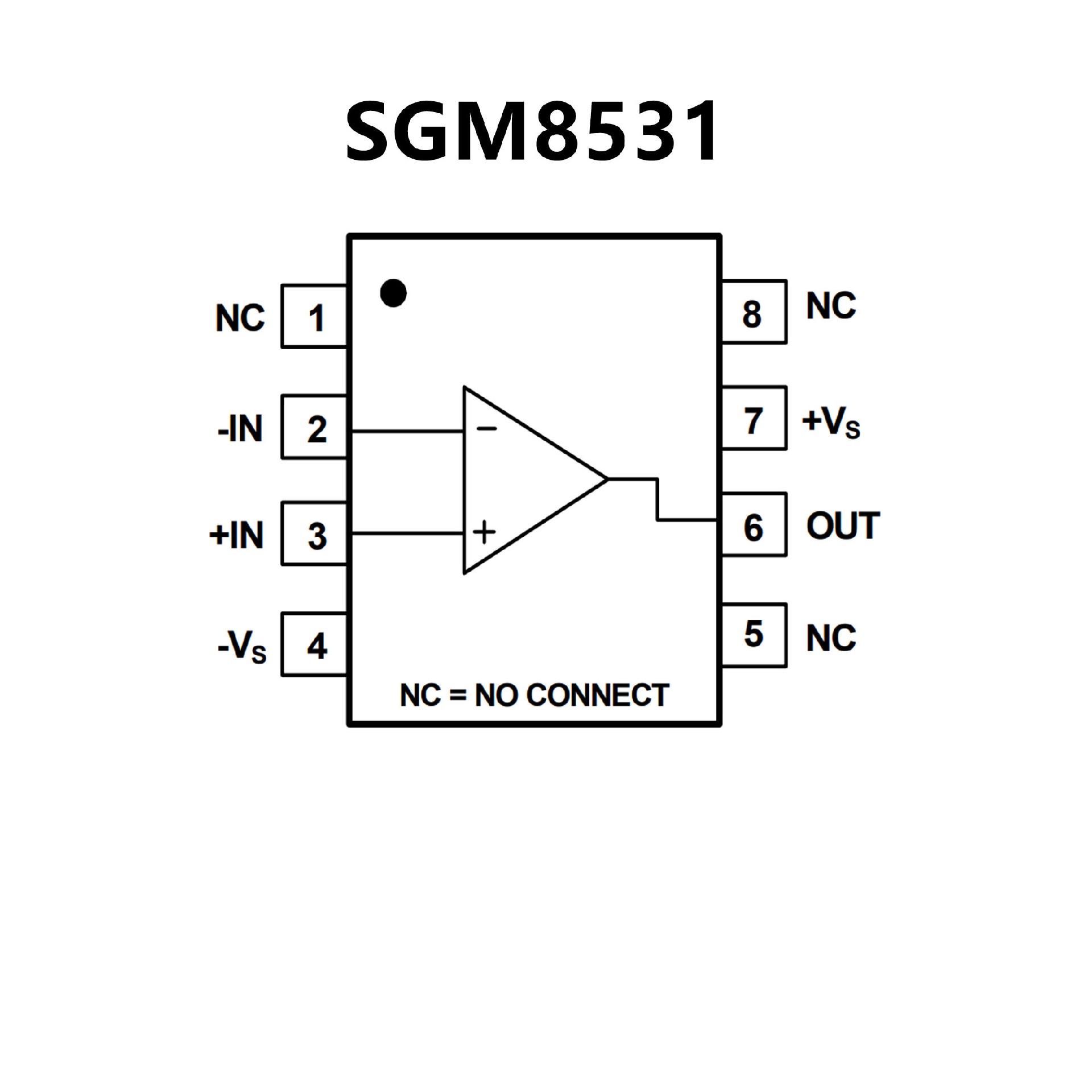

SGM8531.pdf• Low Cost
• Rail-to-Rail Input and Output
0.8mV Typical VOS
• Unity Gain Stable
• Gain-Bandwidth Product: 500kHz
• Very Low Input Bias Current: 0.5pA
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range:-0.1V to +5.6V with VS = 5.5V
• Low Supply Current: 18μA/Amplifier
• Small Packaging
SGM8531 Available in SOIC-8 and SOT-23-5
SGM8532 Available in SOIC-8 and MSOP-8
SGM8534 Available in SOIC-14 and TSSOP-14

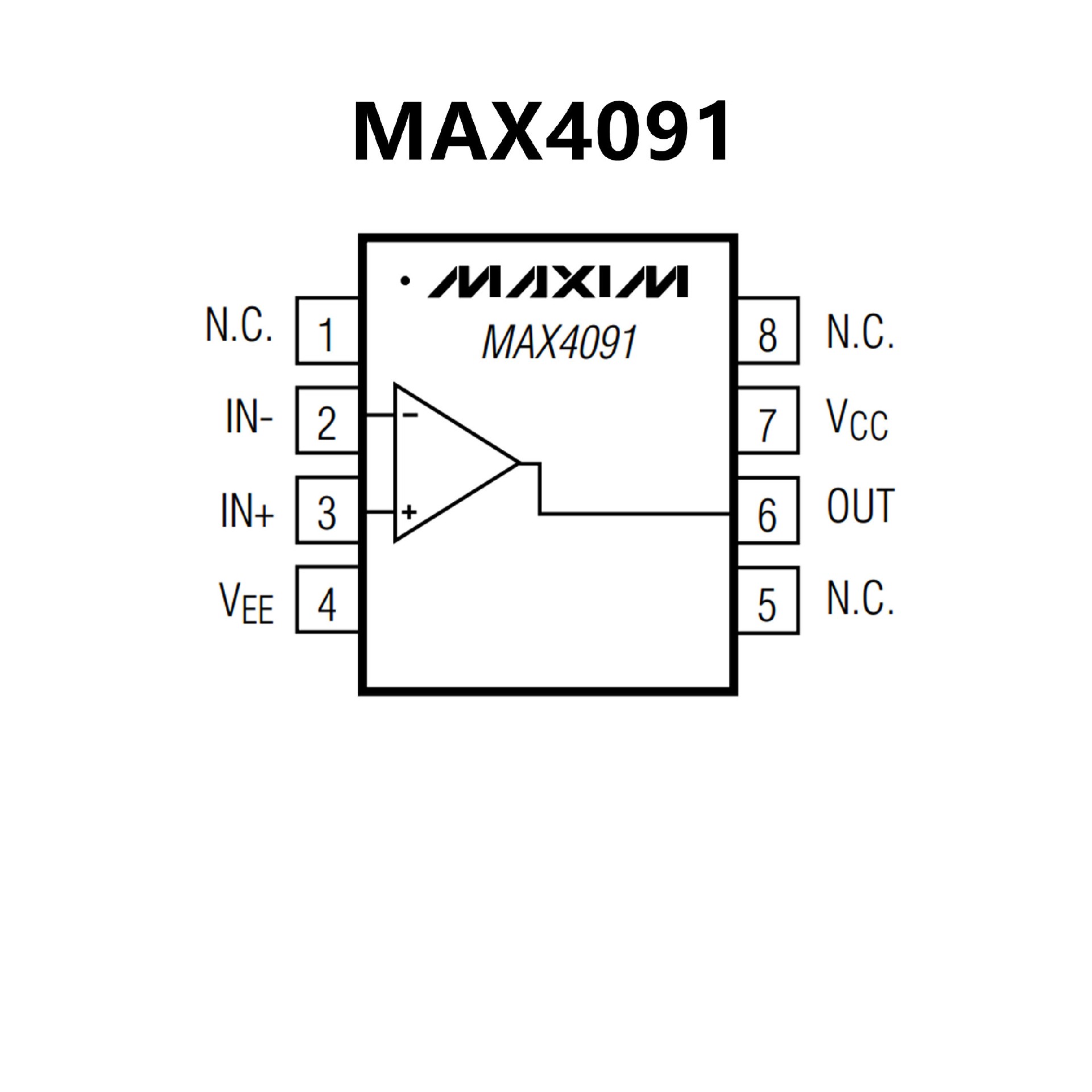

• Low-Voltage, Single-Supply Operation (2.7V to 6V)
• Beyond-the-Rails™ Inputs
• No Phase Reversal for Overdriven Inputs
• 30µV Offset Voltage
• Rail-to-Rail Output Swing with 1kΩ Load
• Unity-Gain Stable with 2000pF Load
• 165µA (max) Quiescent Current Per Op Amp
• 500kHz Gain-Bandwidth Product
• High Voltage Gain (115dB)
• High Common-Mode Rejection Ratio (90dB)
andPower-Supply Rejection Ratio (100dB)
• Temperature Range (-40°C to +125°C)
