500kHz, 18μA, Rail-to-Rail I/O, CMOS Operational Amplifiers, SGM8532XMS/TR Replace MCP6242.
SGM8532
SGM8532.pdf
SGM8532.pdfFEATURES
• Low Cost
• Rail-to-Rail Input and Output
• Input Offset Voltage: 3.5mV (MAX)
• Unity Gain Stable
• Gain-Bandwidth Product: 500kHz
• Very Low Input Bias Current: 0.5pA
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range:
0.1V to 5.6V with VS = 5.5V
• Low Supply Current: 18μA/Amplifier
• Small Packaging:
SGM8531 Available in Green SOIC-8 and
SOT-23-5 Packages
SGM8532 Available in Green SOIC-8 and MSOP-8
Packages
SGM8534 Available in Green SOIC-14 and
TSSOP-14 Packages

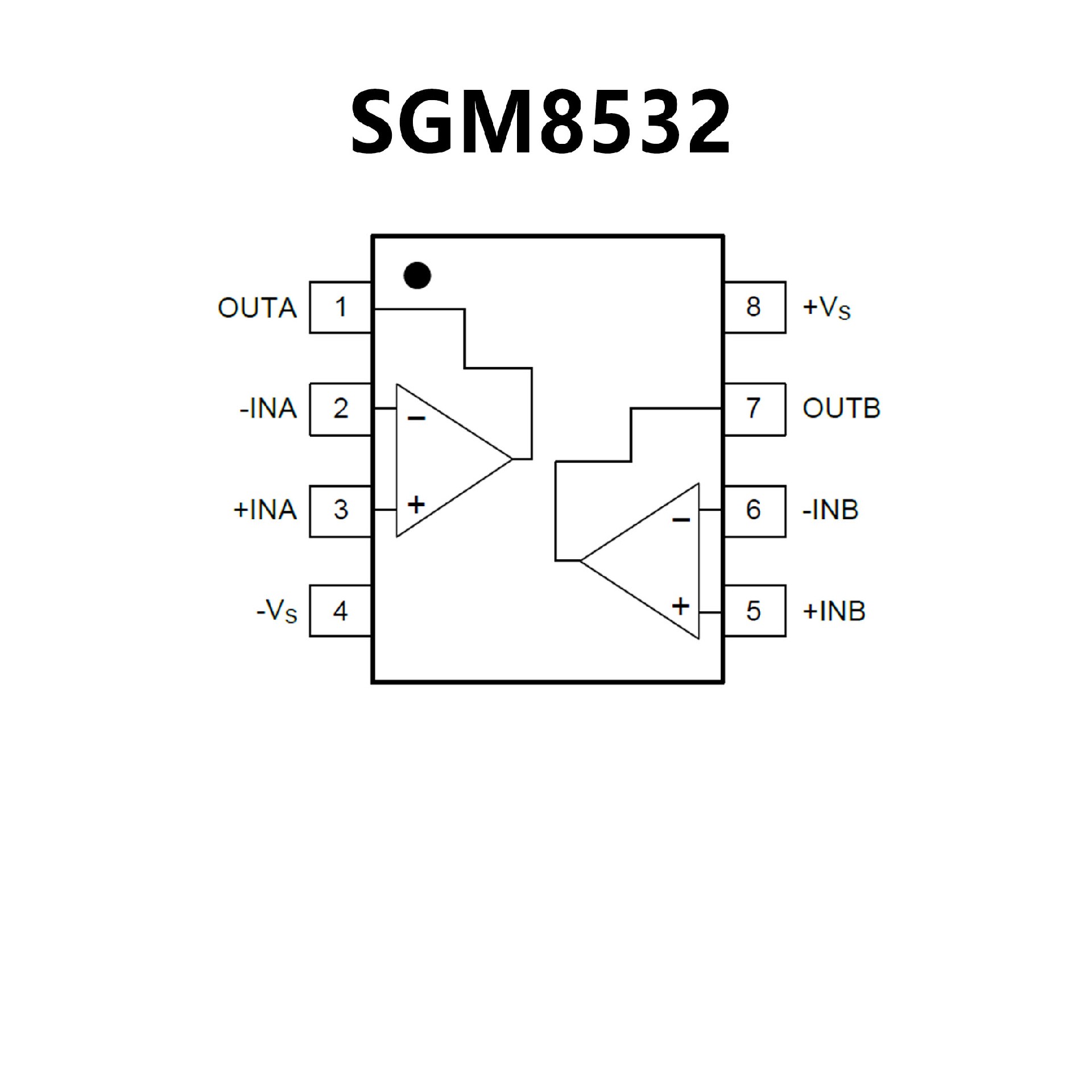

PIN CONFIGUTION
优势替代
FEATURES
• Gain Bandwidth Product: 550 kHz (typical)
• Supply Current: IQ = 50 μA (typical)
• Supply Voltage: 1.8V to 5.5V
• Rail-to-Rail Input/Output
• Extended Temperature Range: -40°C to +125°C
• Available in 5-pin SC-70 and SOT-23 packages

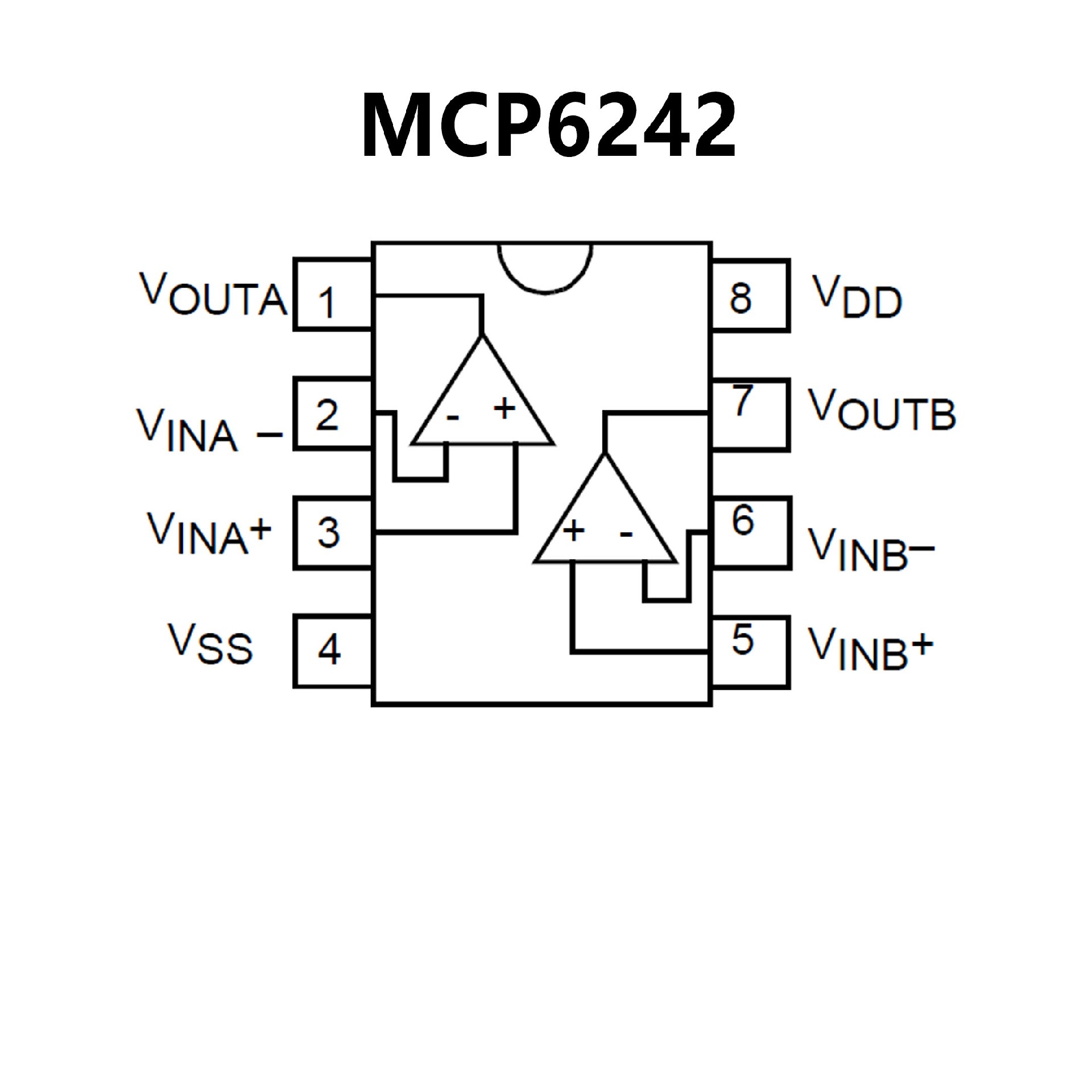

PIN CONFIGUTION
