Micro Power operational Amplifier,SGM8538-4 Replace OPA4313.
SGM8538
SGM8538.pdf
SGM8538.pdfFEATURES
• Rail-to-Rail Output
• Low Input Offset Voltage: 0.6mV (TYP)
• Unity Gain Stable
• Gain Bandwidth Product: 1.5MHz
• Supply Voltage Range: 1.8V to 5.5V
• Low Supply Current
80µA/Amplifier (TYP)
0.1µA Shutdown Current for SGM8537
• Small Packaging:
SGM8538 Available in SOIC-14 and TSSOP-14

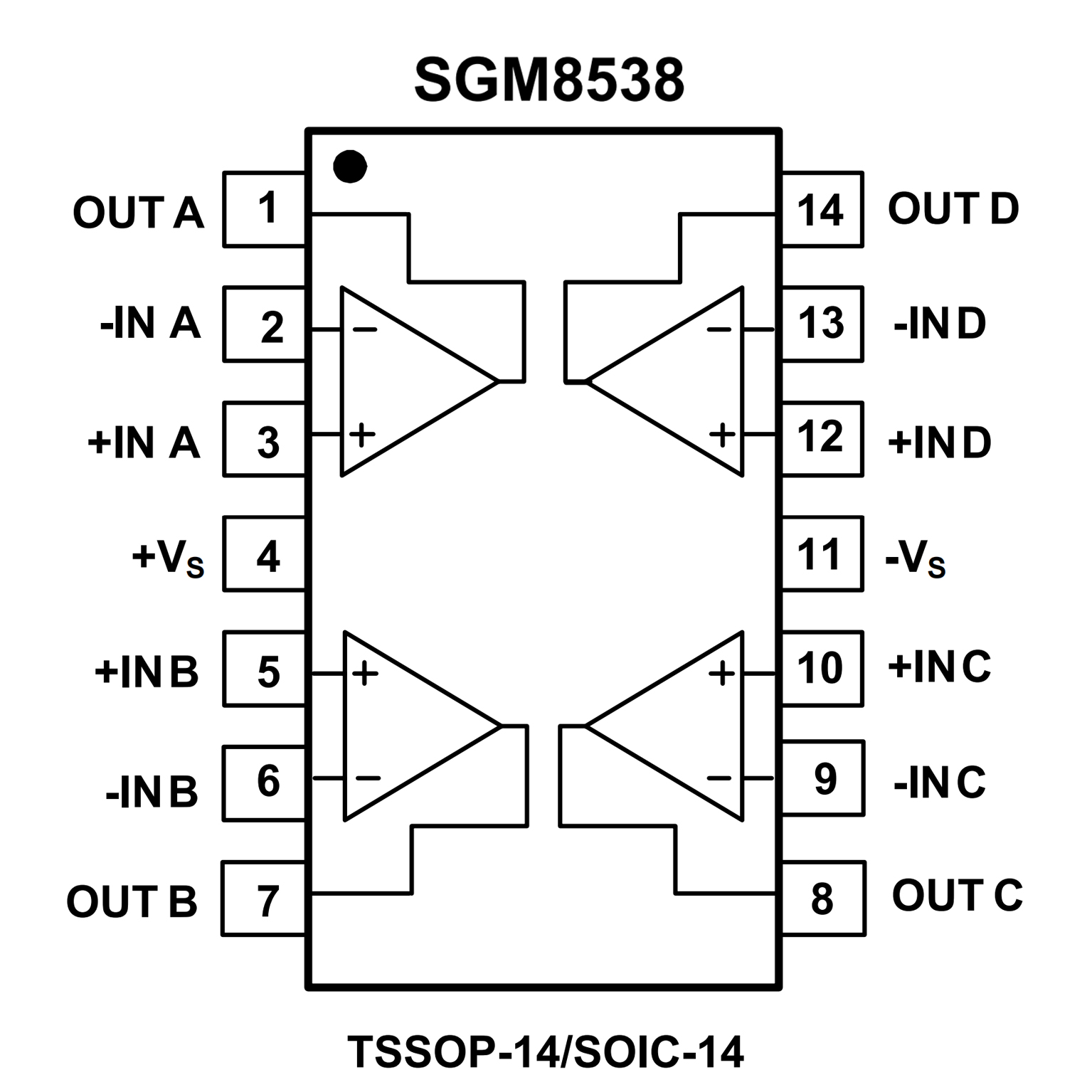

PIN CONFIGUTION
优势替代
FEATURES
• Low IQ: 50 µA/ch
• Wide Supply Range: 1.8 V to 5.5 V
• Low Noise: 25 nV/√Hz at 1 kHz
• Gain Bandwidth: 1 MHz
• Low Input Bias Current: 0.2 pA
• Low Offset Voltage: 0.5 mV
• Unity-Gain Stable
• Internal RF/EMI Filter
• Extended Temperature Range:
–40°C to +125°C
PIN CONFIGUTION
