• Low Cost

• Rail-to-Rail Input and Output

• Input Offset Voltage: 3.5mV (MAX)

• Unity Gain Stable

• Gain-Bandwidth Product: 1.1MHz

• Very Low Input Bias Current: 0.5pA

• Supply Voltage Range: 2.1V to 5.5V

• Input Voltage Range:

  -0.1V to 5.6V with VS = 5.5V

• Low Supply Current: 46μA/Amplifier

• Small Packaging:

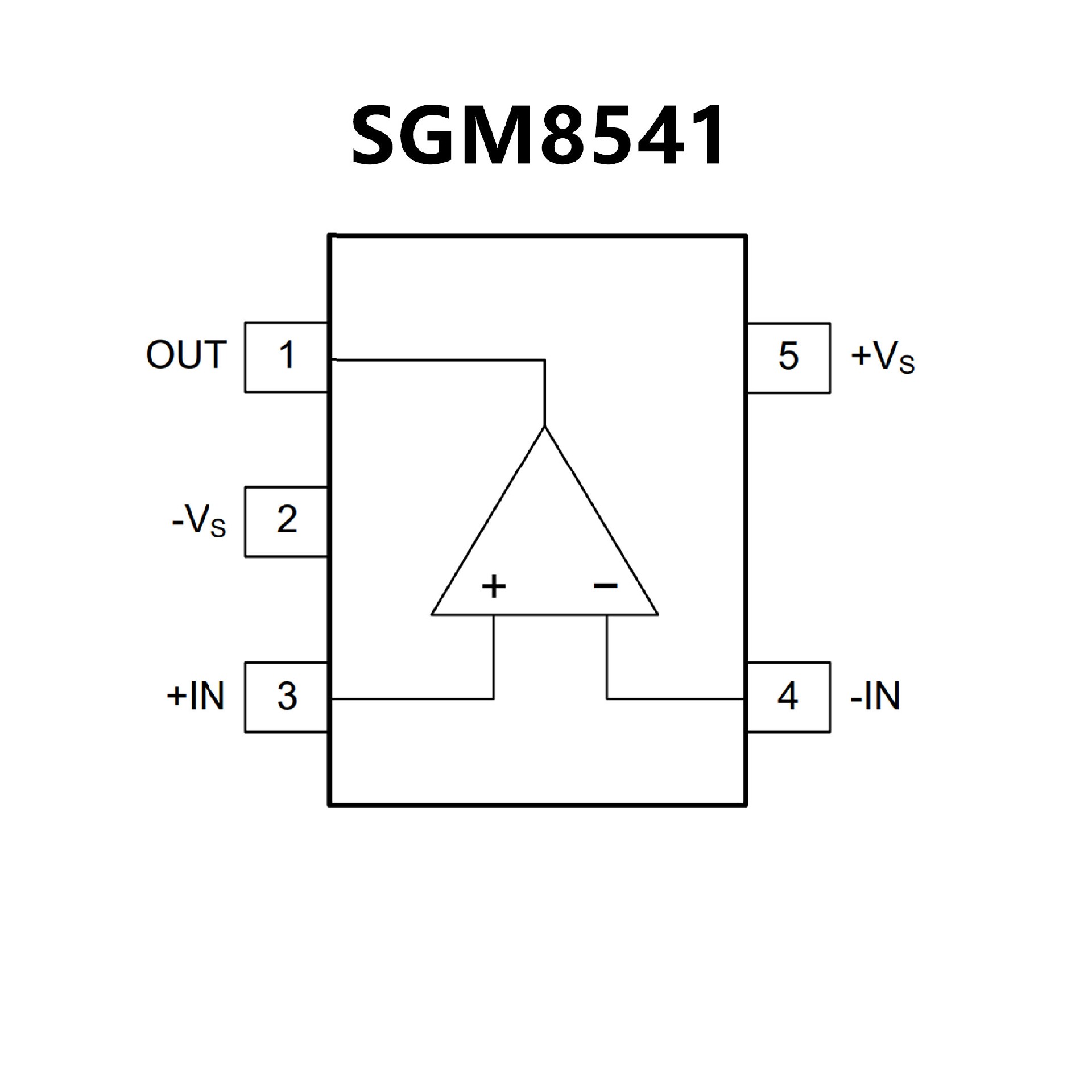

  SGM8541 Available in Green SOIC-8, SC70-5

  and SOT-23-5 Packages

  SGM8542 Available in Green SOIC-8, MSOP-8

  and TSSOP-8 Packages

  SGM8544 Available in Green SOIC-14 and

  TSSOP-14 Packages
