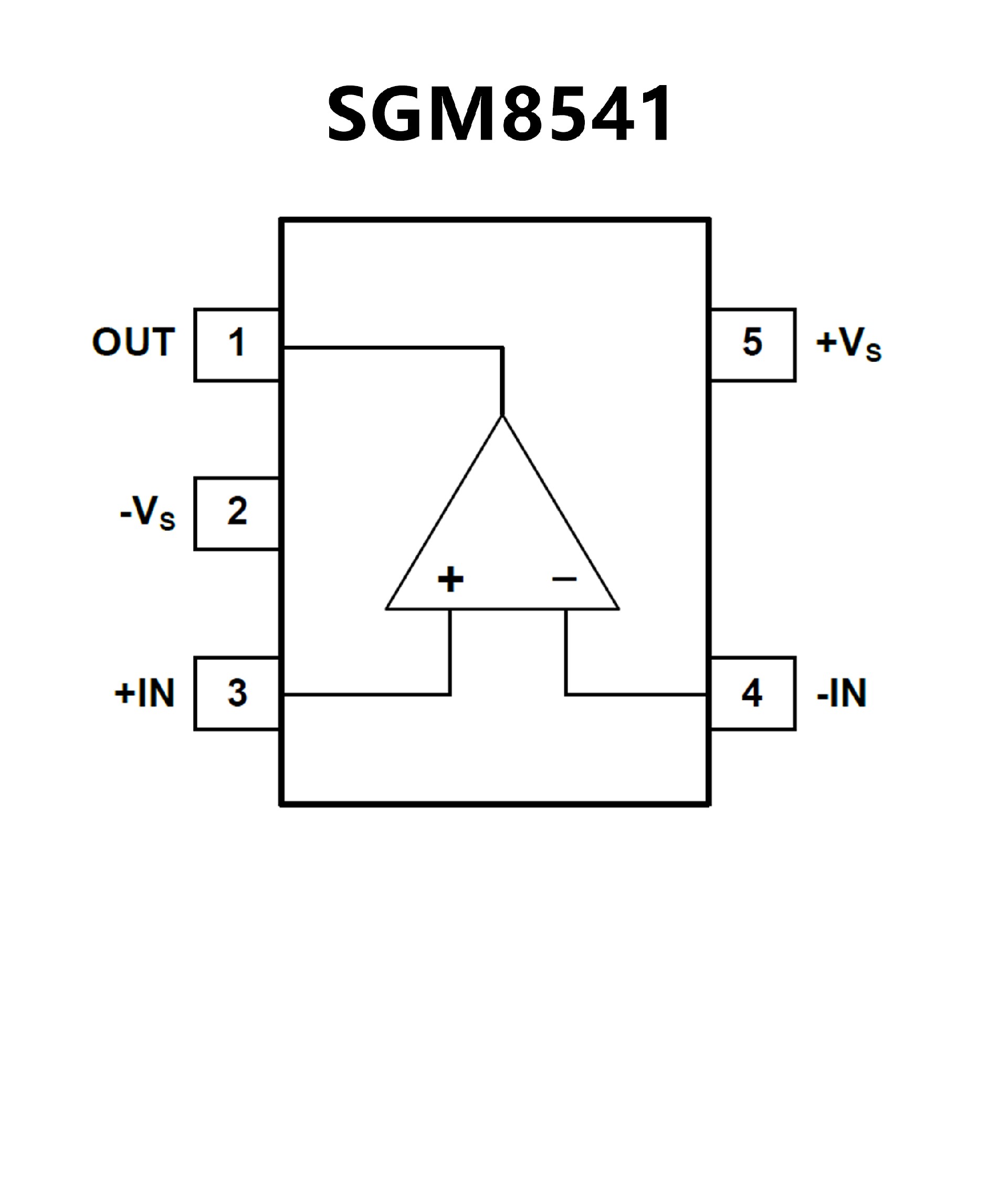

SGM8541XN5G.pdf• Low Cost
• Rail-to-Rail Input and Output
• Input Offset Voltage: 3.5mV (MAX)
• Unity Gain Stable
• Gain-Bandwidth Product: 1.1MHz
• Very Low Input Bias Current: 0.5pA
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range:
-0.1V to 5.6V with VS = 5.5V
• Low Supply Current: 46μA/Amplifier
• Small Packaging:
SGM8541 Available in Green SOIC-8, SC70-5
and SOT-23-5 Packages
SGM8542 Available in Green SOIC-8, MSOP-8
and TSSOP-8 Packages
SGM8544 Available in Green SOIC-14 and
TSSOP-14 Packages
• Precision Amplifiers for Cost-Sensitive Systems
• Low Quiescent Current: 75 μA/ch
• Supply Range: 1.8 V to 5.5 V
• Input Voltage Noise Density: 28 nV/√Hz at 1 kHz
• Rail-to-Rail Input/Output
• Gain Bandwidth: 1 MHz
• Low Input Bias Current: 1.0 pA
• Low Offset Voltage: 0.75 mV
• Unity-Gain Stable
• Internal RF/EMI Filter
• Extended Temperature Range:
–40°C to +125°C
