Micro Power Operational Amplifier, Replace LMV602
SGM8542
SGM8542.pdf
SGM8542.pdfFEATURES
• Low Cost
• Rail-to-Rail Input and Output 0.8mV Typical VOS
• Unity Gain Stable
• Gain-Bandwidth Product: 1.1MHz
• Very Low Input Bias Current: 0.5pA
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
• Low Supply Current: 46μA/Amplifier
• Small Packaging
SGM8542 Available in SOIC-8 and MSOP-8

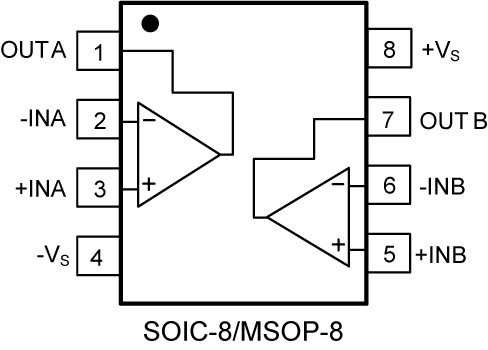

PIN CONFIGUTION
优势替代
FEATURES
• Typical 2.7-V Supply Values; Unless Otherwise Noted
• Ensured 2.7-V and 5-V Specifications
• Supply Current (Per Amplifier): 100 μA
• Gain Bandwidth Product: 1 MHz
• Shutdown Current (LMV601): 45 pA
• Turnon Time from Shutdown (LMV601): 5 μs
cInput Bias Current: 20 fA

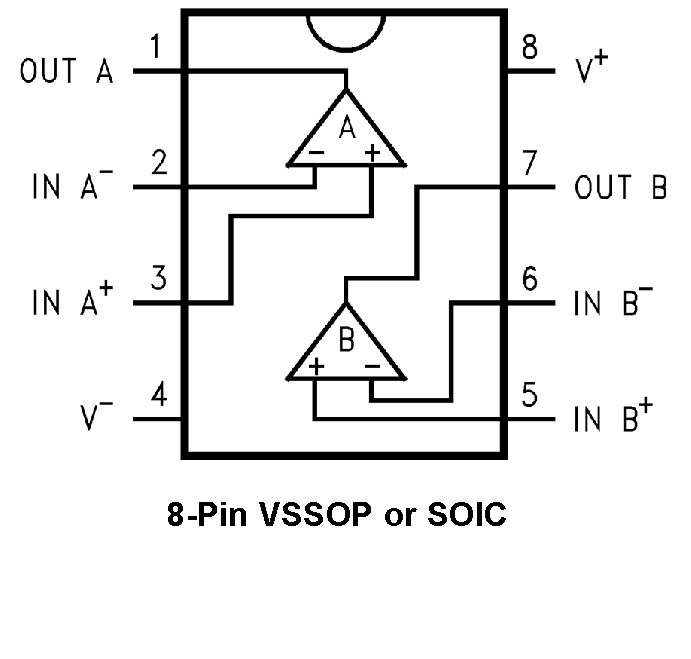

PIN CONFIGUTION
