SGM8544.pdf• Low Cost
• Rail-to-Rail Input and Output
0.8mV Typical VOS
• Unity Gain Stable
• Gain-Bandwidth Product: 1.1MHz
• Very Low Input Bias Current: 0.5pA
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range:
-0.1V to +5.6V with VS = 5.5V
• Low Supply Current: 46μA/Amplifier
• Small Packaging:
SGM8541 Available in Green SOIC-8,
SC70-5and SOT-23-5 Packages
SGM8542 Available in Green SOIC-8,
MSOP-8and TSSOP-8 Packages

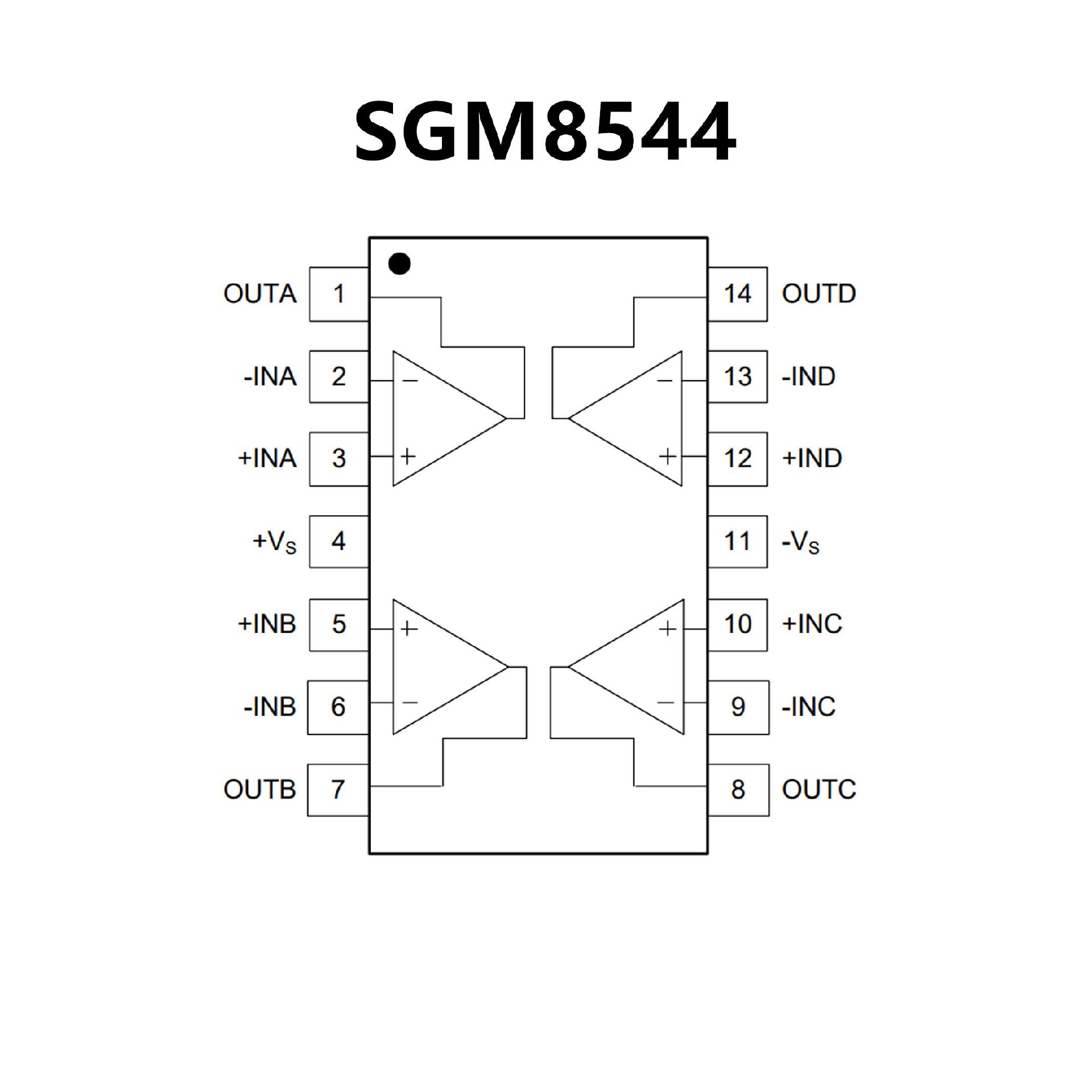

SGM8544 Available in Green
SOIC-14 andTSSOP-14 Packages

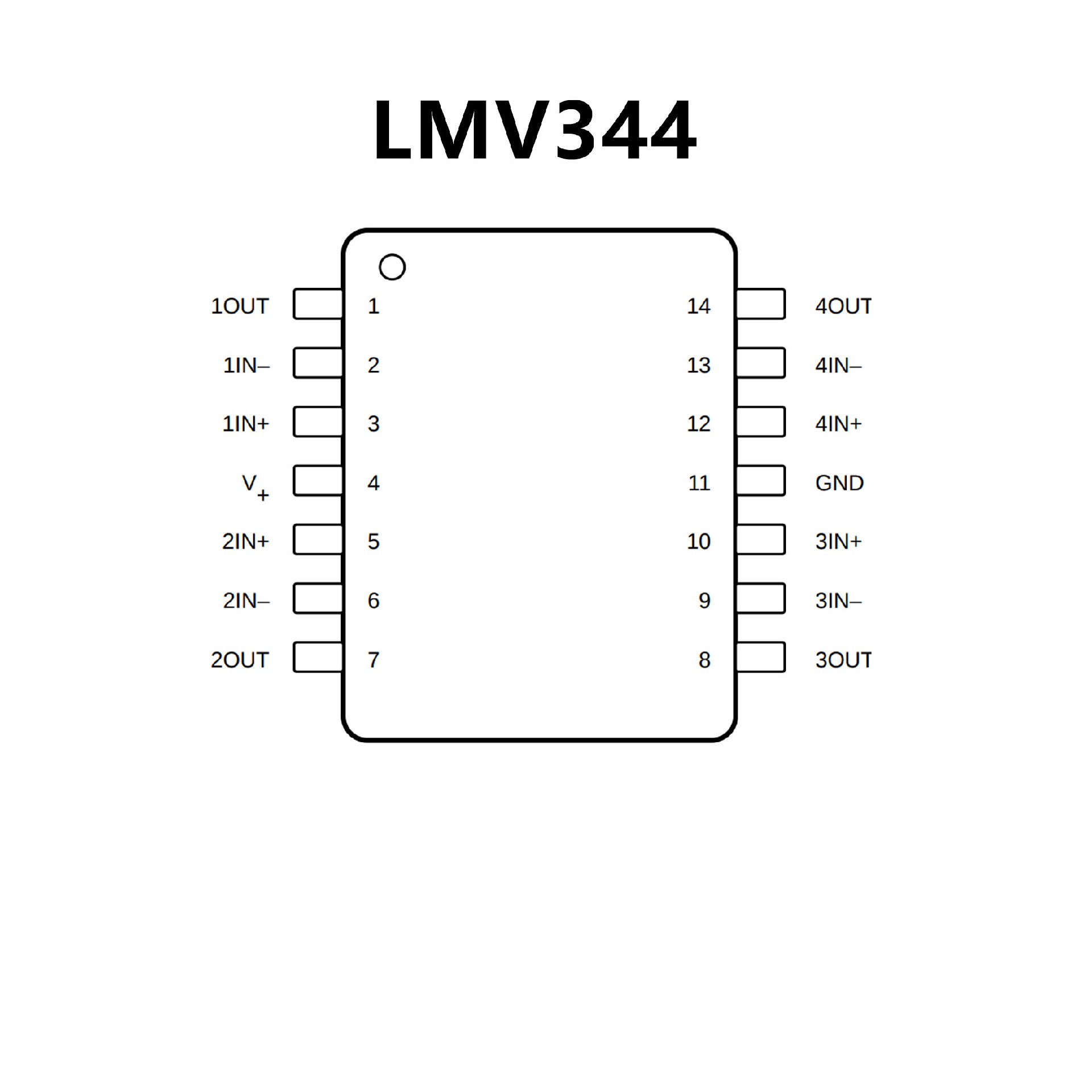

• 2.7-V and 5-V Performance
• Rail-to-Rail Output Swing
• Input Bias Current:1 pA (Typical)
• Input Offset Voltage: 0.25 mV (Typical)
• Low Supply Current: 100 μA (Typical)
• Low Shutdown Current: 45 pA (Typical)
• Gain Bandwidth of 1 MHz (Typical)
• Slew Rate: 1 V/μs (Typical)
• Turnon Time From Shutdown: 5 μs (Typical)
• Input Referred Voltage Noise (at 10 kHz):20 nV/√Hz
• ESD Protection Exceeds JESD 22
2000-V Human-Body Model (HBM)
750-V Charged-device model (CDM)
