1.1MHz, 46μA, Rail-to-Rail I/OCMOS Operational Amplifiers,SGM8544XTS14TRReplaceAD8609ARUZ.
SGM8544XTS14TR
SGM8544XTS14TR.pdf
SGM8544XTS14TR.pdfFEATURES
• Low Cost
• Rail-to-Rail Input and Output
0.8mV Typical VOS
• Unity Gain Stable
• Gain-Bandwidth Product: 1.1MHz
• Very Low Input Bias Current: 0.5pA
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range:
-0.1V to +5.6V with VS = 5.5V
• Low Supply Current: 46μA/Amplifier
• Small Packaging:
SGM8541 Availablein Green SOIC-8, SC70-5 and SOT-23-5 Packages
SGM8542 Available in Green SOIC-8, MSOP-8 and TSSOP-8 Packages
SGM8544 Available in Green SOIC-14 and TSSOP-14 Packages

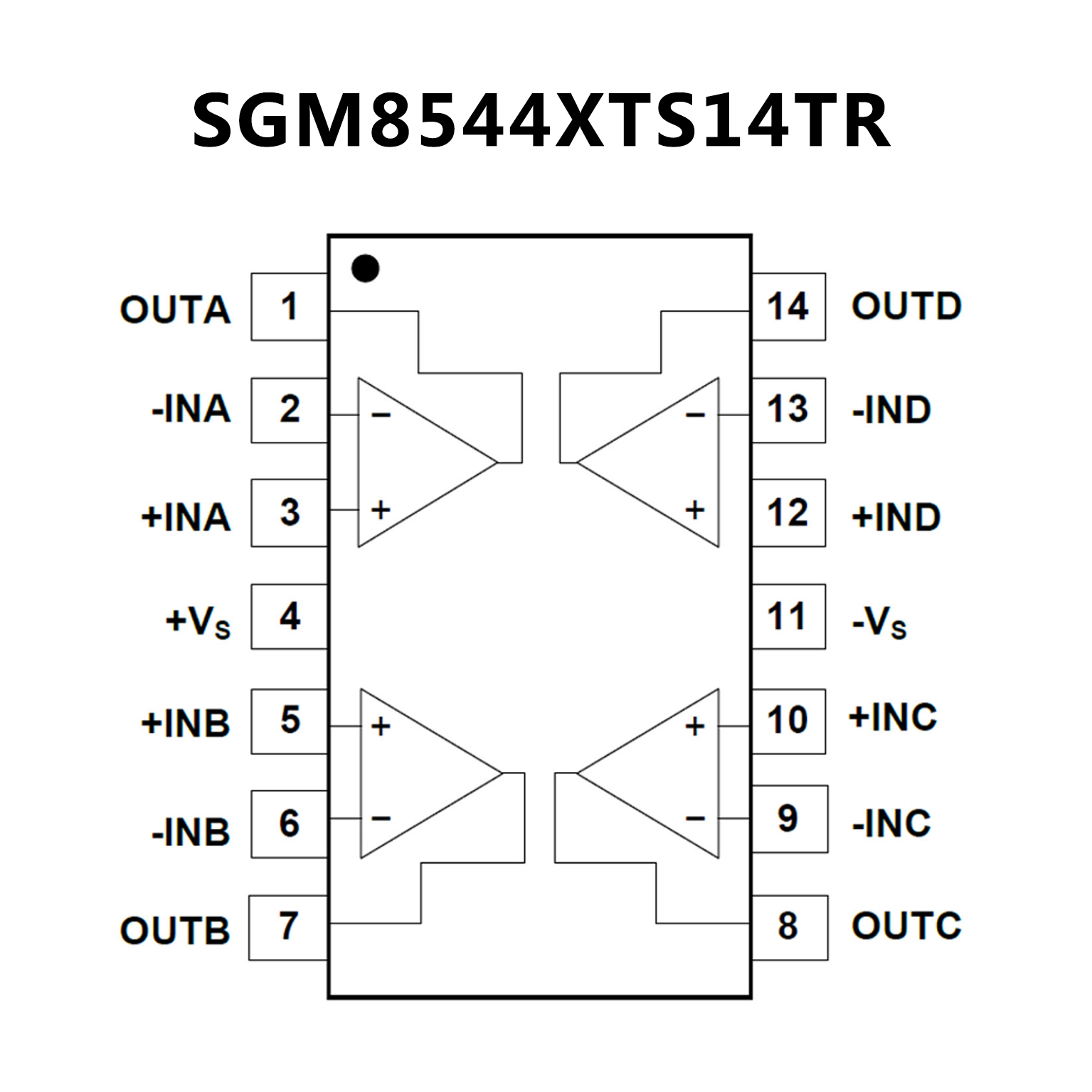

PIN CONFIGUTION
优势替代
FEATURES
• 低失调电压：50 μV(最大值)
• 低输入偏置电流：1 pA(最大值)
• 单电源供电：1.8 V至5 V
• 低噪声：22 nV/√Hz
• 微功耗：50 μA(最大值)
• 低失真
• 无相位反转
• 单位增益稳定

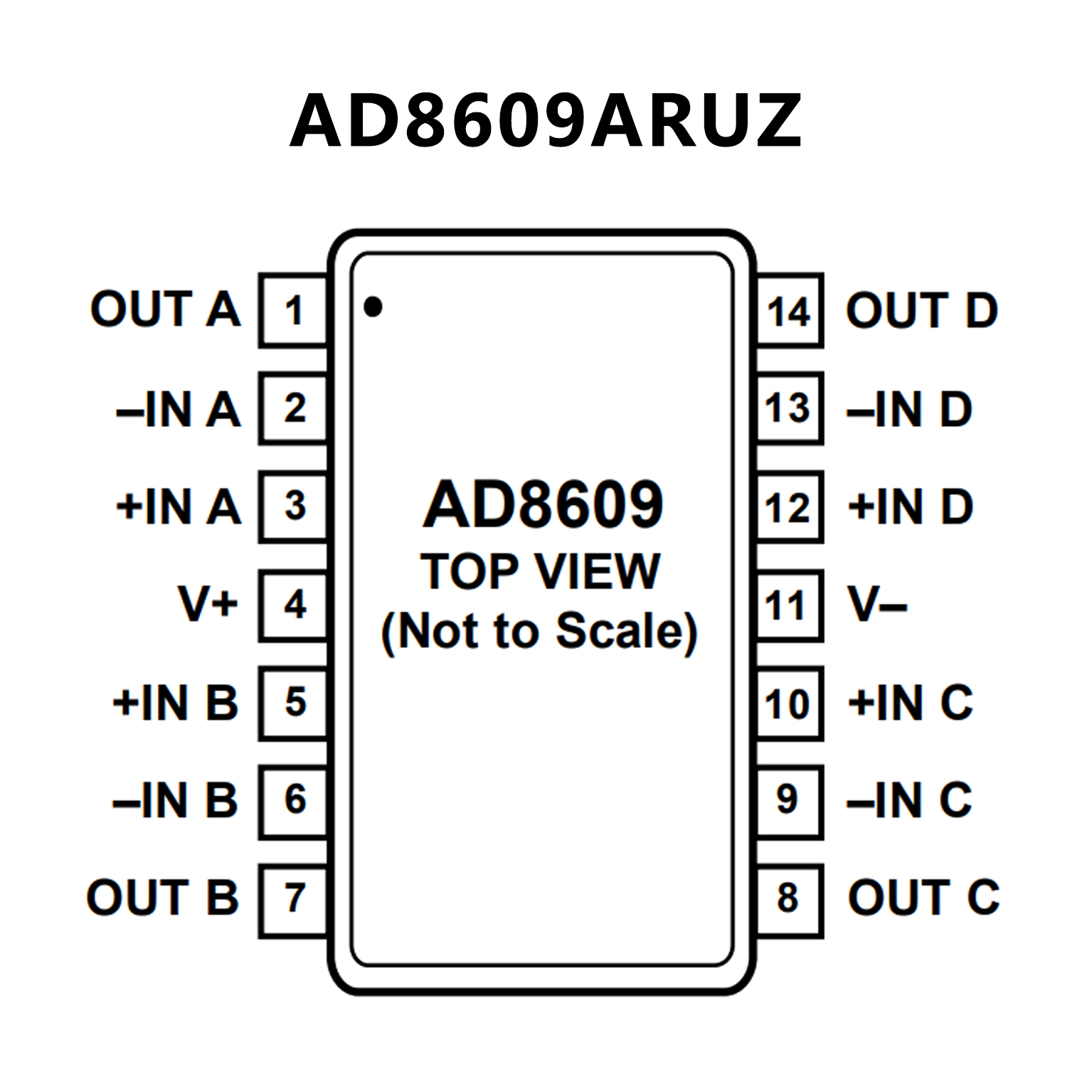

PIN CONFIGUTION
