High precision Operational Amplifier,SGM8551 Replace LMP2011.
SGM8551
SGM8551.pdf
SGM8551.pdfFEATURES
• Low Offset Voltage: 4µV (TYP)
• Rail-to-Rail Input and Output Swing
• 2.5V to 5.5V Single Supply Operation
• Voltage Gain: 145dB (TYP) at +5V
• PSRR: 110dB (TYP)
• CMRR: 105dB (TYP)
• Ultra Low Input Bias Current: 10pA
• Low Supply Current: 930µA (TYP)
• Overload Recovery Time: 60µs (at VS = +5V)
• No External Capacitors Required
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages
PIN CONFIGUTION
优势替代
FEATURES
(For VS = 5 V, Typical Unless Otherwise Noted)• Low Ensured VOS Over Temperature 60 µV
• Low Noise with No 1/f 35nV/√Hz
• High CMRR 130 dB
• High PSRR 120 dB
• High AVOL 130 dB
• Wide Gain-Bandwidth Product 3 MHz
• High Slew Rate 4 V/µs
• Low Supply Current 930 µA
• Rail-to-Rail Output 30 mV
• No External Capacitors Required

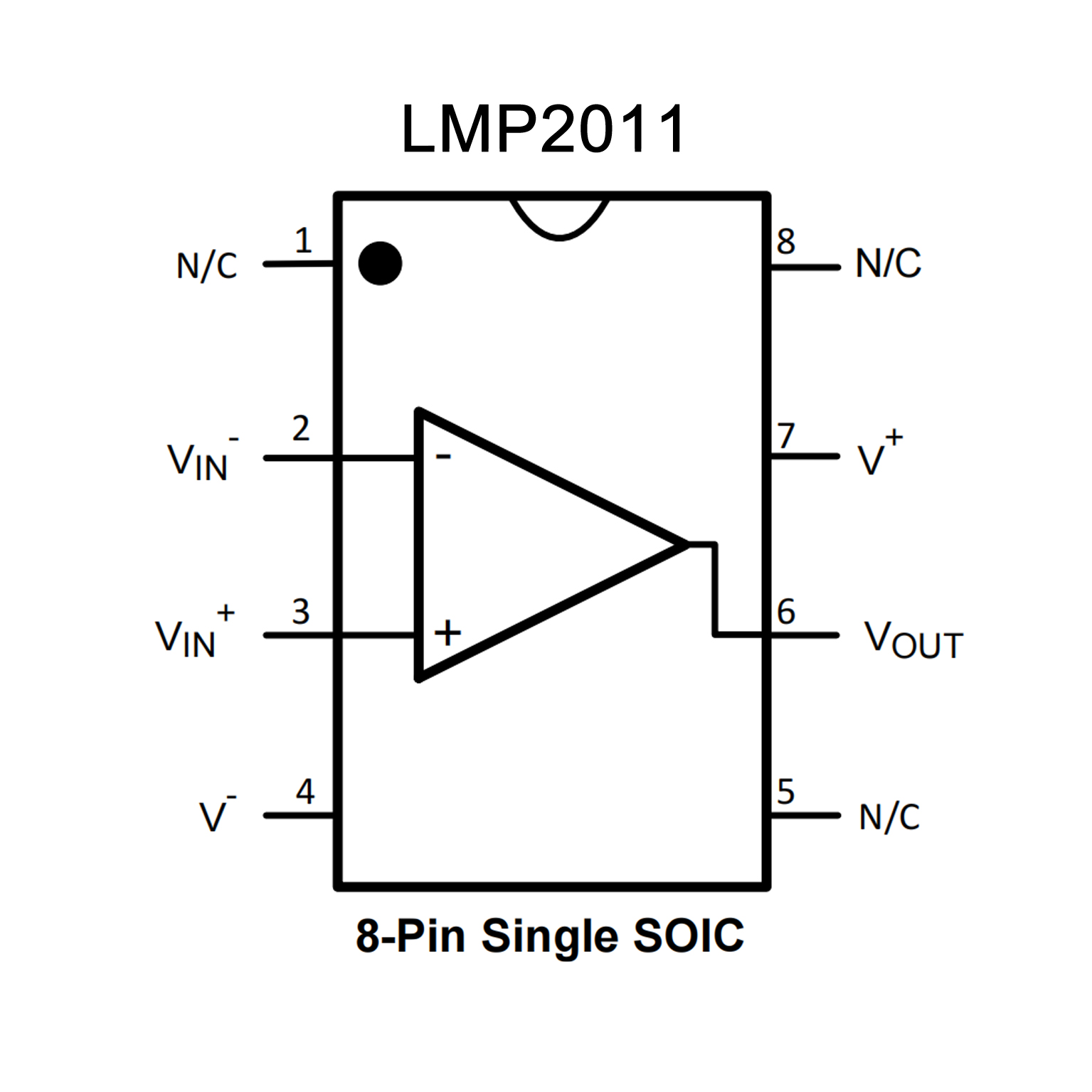

PIN CONFIGUTION
