SGM8552.pdf• Low Offset Voltage: 4µV (TYP)
• Rail-to-Rail Input and Output Swing
• 2.5V to 5.5V Single Supply Operation
• Voltage Gain: 145dB (TYP) at +5V
• PSRR: 110dB (TYP)
• CMRR: 105dB (TYP)
• Ultra Low Input Bias Current: 10pA
• Low Supply Current: 930µA (TYP)
• Overload Recovery Time: 60µs (at VS = +5V)
• No External Capacitors Required
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

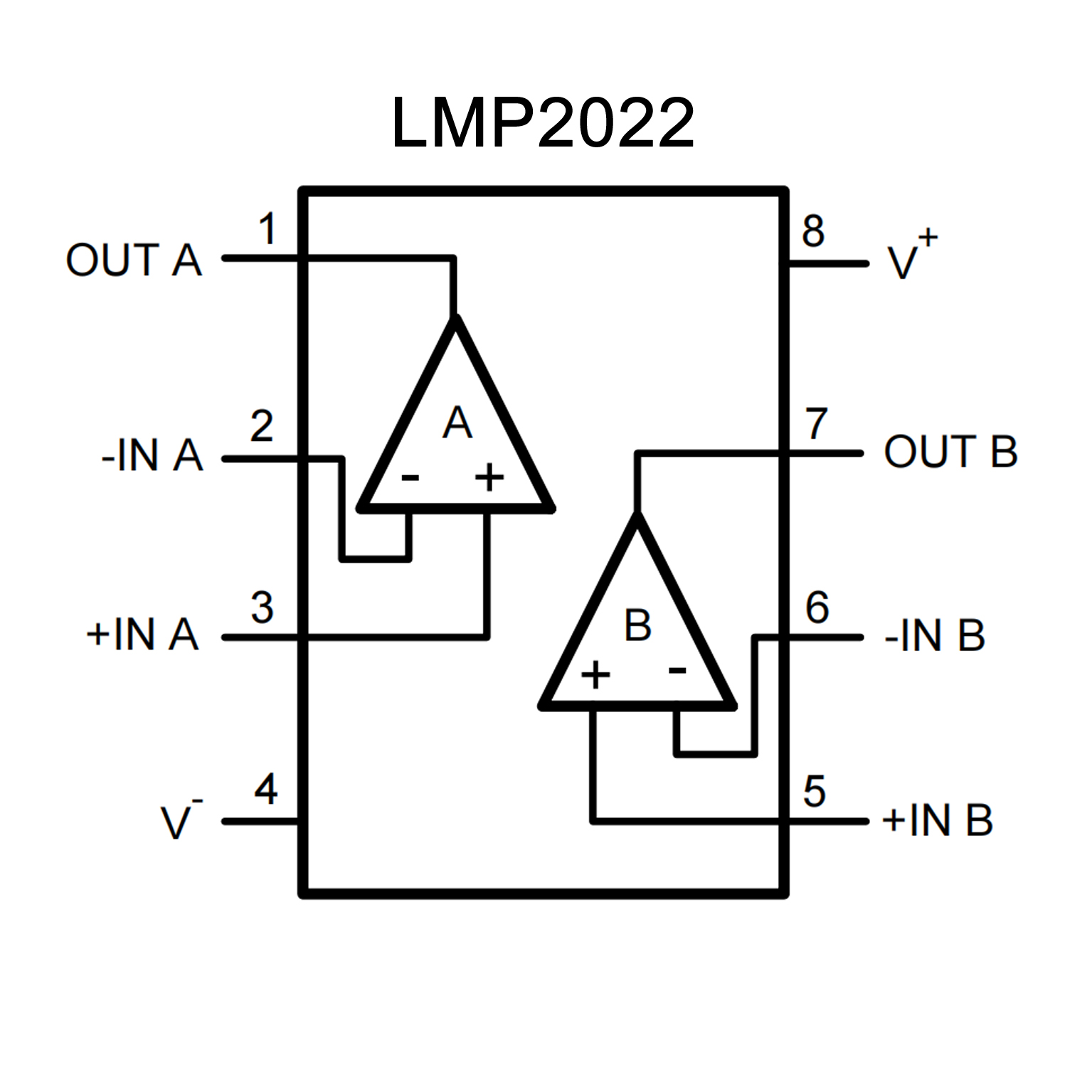

1(Typical Values, TA = 25°C, VS = 5 V)
• Input Offset Voltage (Typical) −0.4 µV
• Input Offset Voltage (Max) ±5 µV
• Input Offset Voltage Drift (Typical) –0.004 µV/°C
• Input Offset Voltage Drift (Max) ±0.02 µV/°C
• Input Voltage Noise, AV = 1000 11 nV/√Hz
• Open Loop Gain 160 dB
• CMRR 139 dB
• PSRR 130 dB
• Supply Voltage Range 2.2 V to 5.5 V
• Supply Current (per Amplifier) 1.1 mA
• Input Bias Current ±25 pA
• GBW 5 MHz
• Slew Rate 2.6 V/µs • Operating Temperature Range −40°C to 125°C
• 5-Pin SOT-23, 8-Pin VSSOP and 8-Pin SOIC Packages
