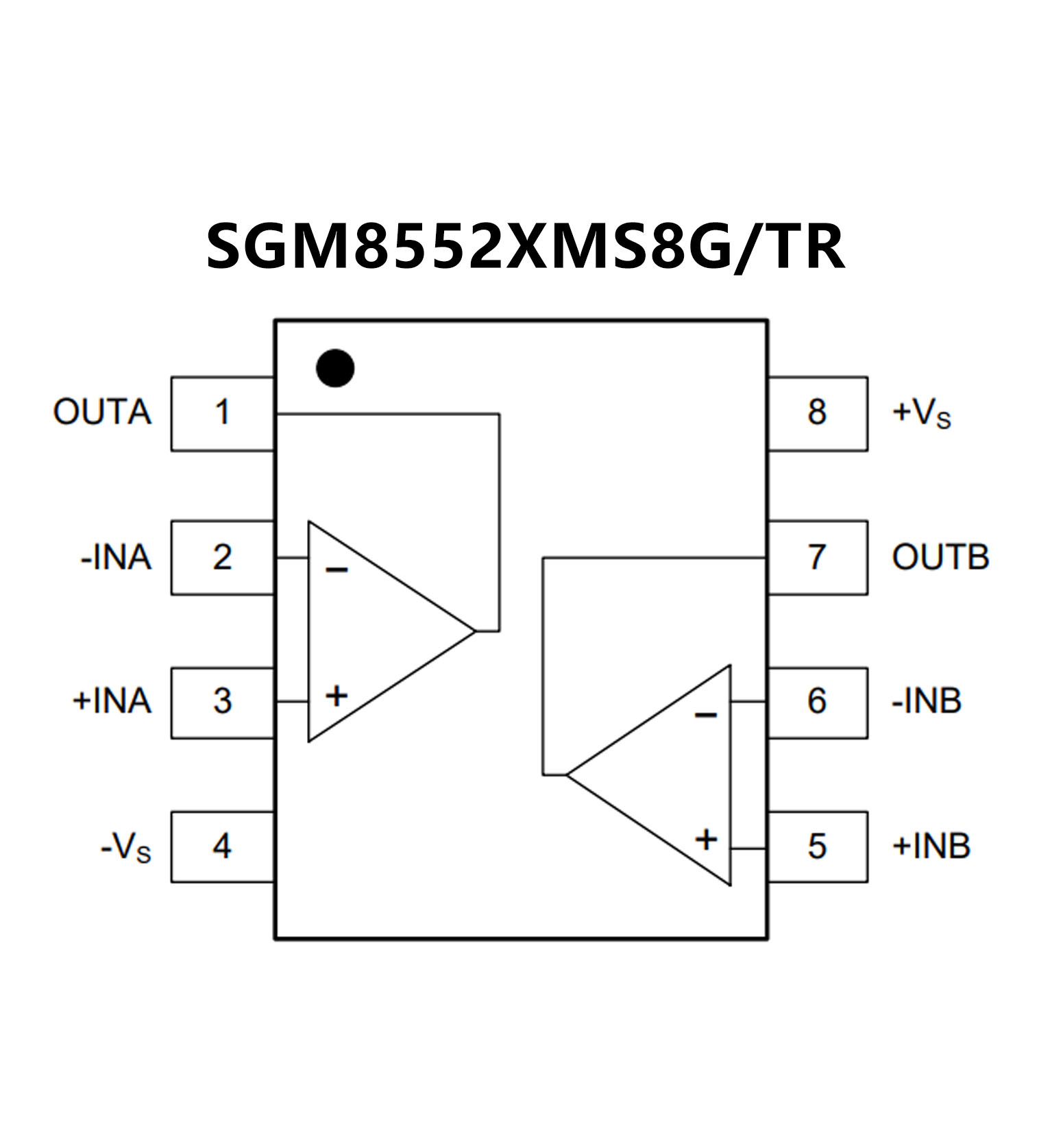

SGM8552.pdf• Low Offset Voltage: 20μV (MAX)
• Rail-to-Rail Input and Output Swing
• 2.5V to 5.5V Single-Supply Operation
• Voltage Gain: 145dB (TYP) at 5V
• PSRR: 110dB (TYP)
• CMRR: 105dB (TYP)
• Ultra Low Input Bias Current: 10pA
• Low Supply Current: 930μA (TYP)
• Overload Recovery Time: 60μs (at VS = 5V)
• No External Capacitors Required
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

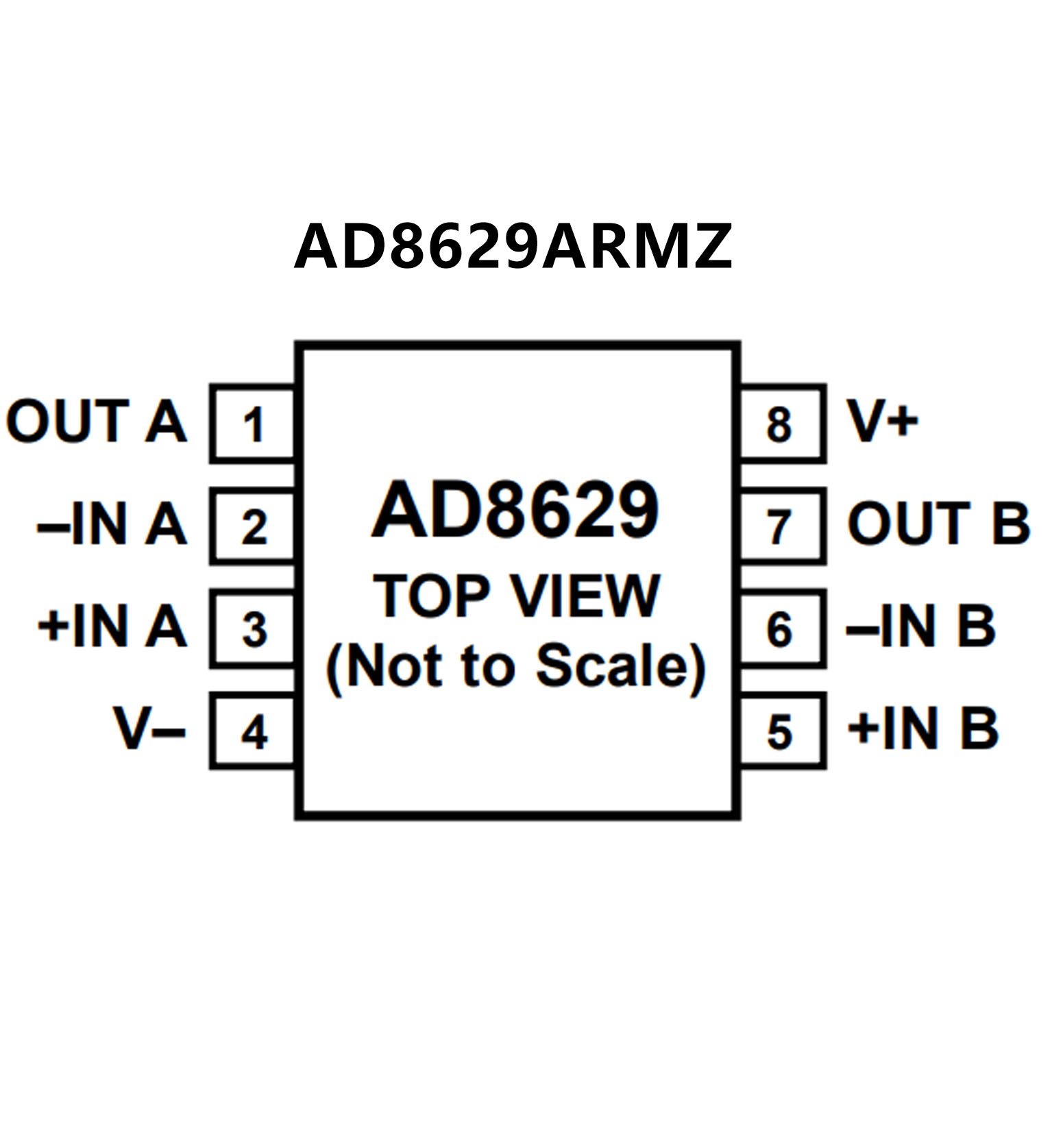

• Lowest auto-zero amplifier noise
• Low offset voltage: 1 μV
• Input offset drift: 0.002 μV/°C
• Rail-to-rail input and output swing
• 5 V single-supply operation
• High gain, CMRR, and PSRR: 130 dB
• Very low input bias current: 100 pA maximum
• Low supply current: 1.0 mA
• Overload recovery time: 50 μs
• No external components required
• Qualified for automotive applications
