Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier,8552XS8GTR-Replace-AD8539ARZ.
SGM8552
SGM8552.pdf
SGM8552.pdfFEATURES
• Low Offset Voltage: 4µV (TYP)
• Rail-to-Rail Input and Output Swing
• 2.5V to 5.5V Single Supply Operation
• Voltage Gain: 145dB (TYP) at +5V
• PSRR: 110dB (TYP)
• CMRR: 105dB (TYP)
• Ultra Low Input Bias Current: 10pA
• Low Supply Current: 930µA (TYP)
• Overload Recovery Time: 60µs (at VS = +5V)
• No External Capacitors Required
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Package
PIN CONFIGUTION
优势替代
FEATURES
• Low offset voltage: 13 µV maximum
• Input offset drift: 0.03 µV/°C
• Single-supply operation: 2.7 V to 5.5 V
• High gain, CMRR, and PSRR
• Low input bias current: 25 pA
• Low supply current: 180 µA
• Qualified for automotive applications

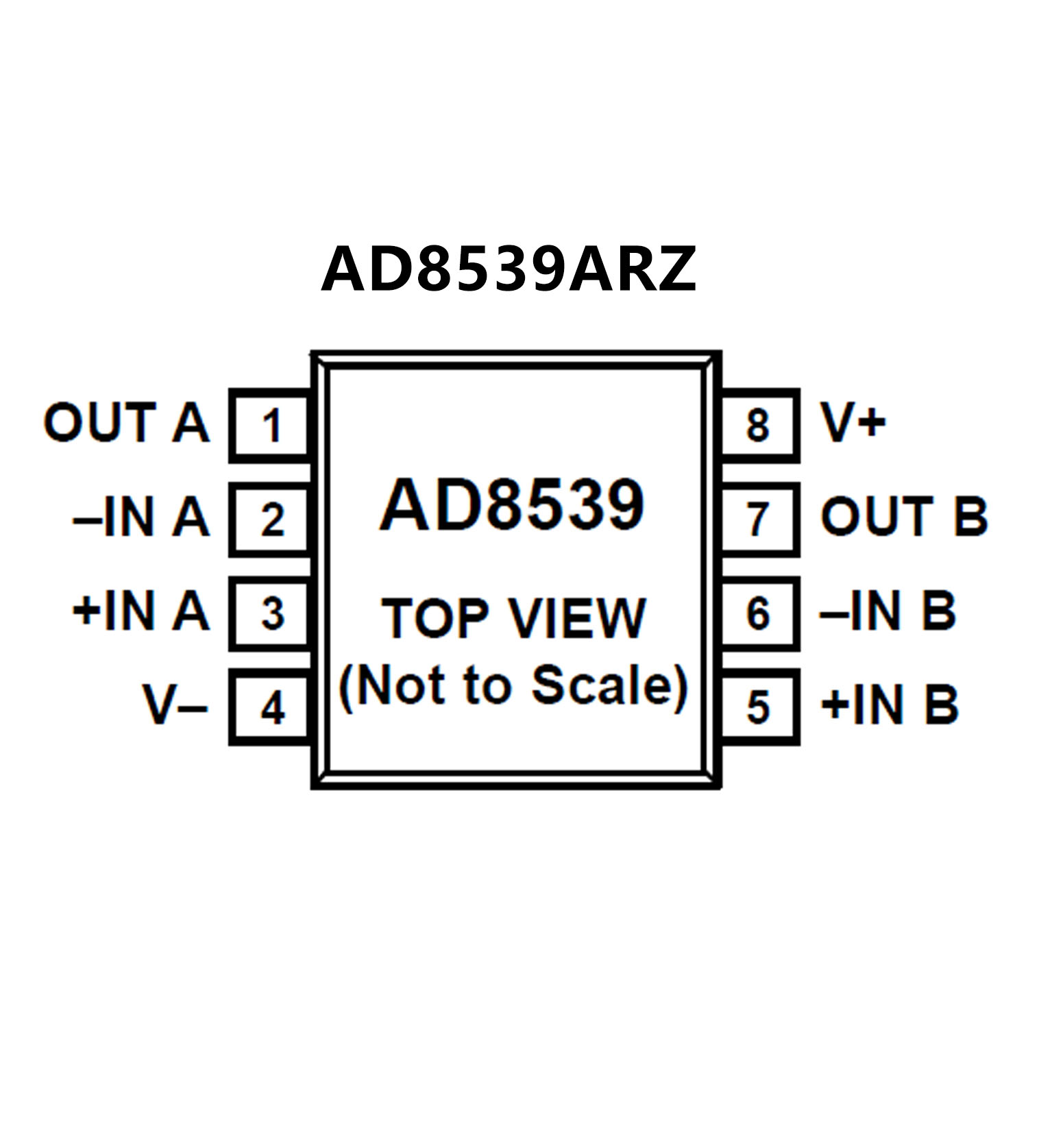

PIN CONFIGUTION
