Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier,SGM8552-Replace-AD8607ARZ.
SGM8552XS8G
SGM8552XS8G.pdf
SGM8552XS8G.pdfFEATURES
• Low Offset Voltage: 20μV (MAX)
• Rail-to-Rail Input and Output Swing
• 2.5V to 5.5V Single-Supply Operation
• Voltage Gain: 145dB (TYP) at 5V
• PSRR: 110dB (TYP)
• CMRR: 105dB (TYP)
• Ultra Low Input Bias Current: 10pA
• Low Supply Current: 930μA (TYP)
• Overload Recovery Time: 60μs (at VS = 5V)
• No External Capacitors Required
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

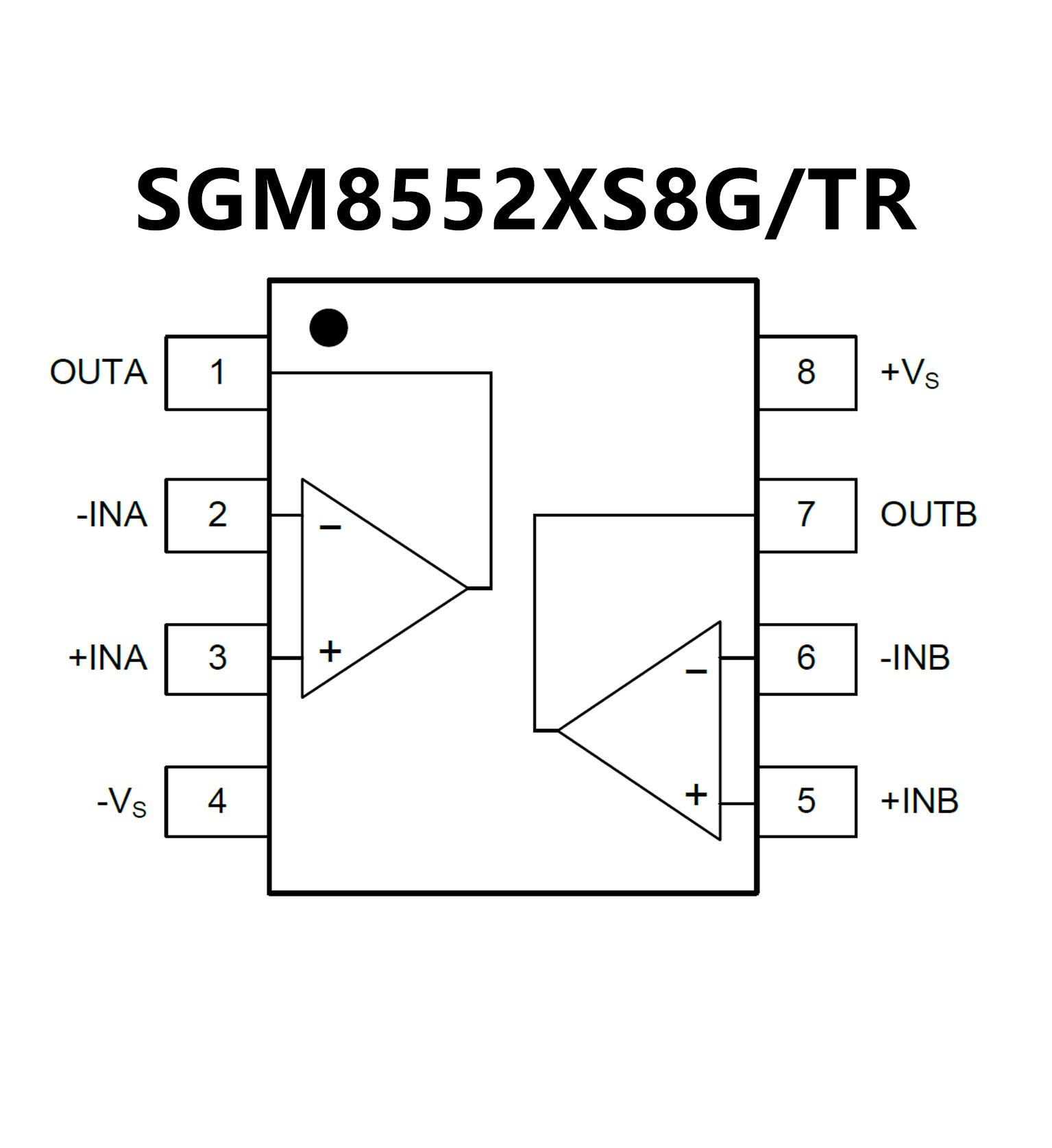

PIN CONFIGUTION
优势替代
FEATURES
• 低失调电压：50 μV(最大值)
• 低输入偏置电流：1 pA(最大值)
• 单电源供电：1.8 V至5 V
• 低噪声：22 nV/√Hz
• 微功耗：50 μA(最大值)
• 低失真
• 无相位反转
• 单位增益稳定

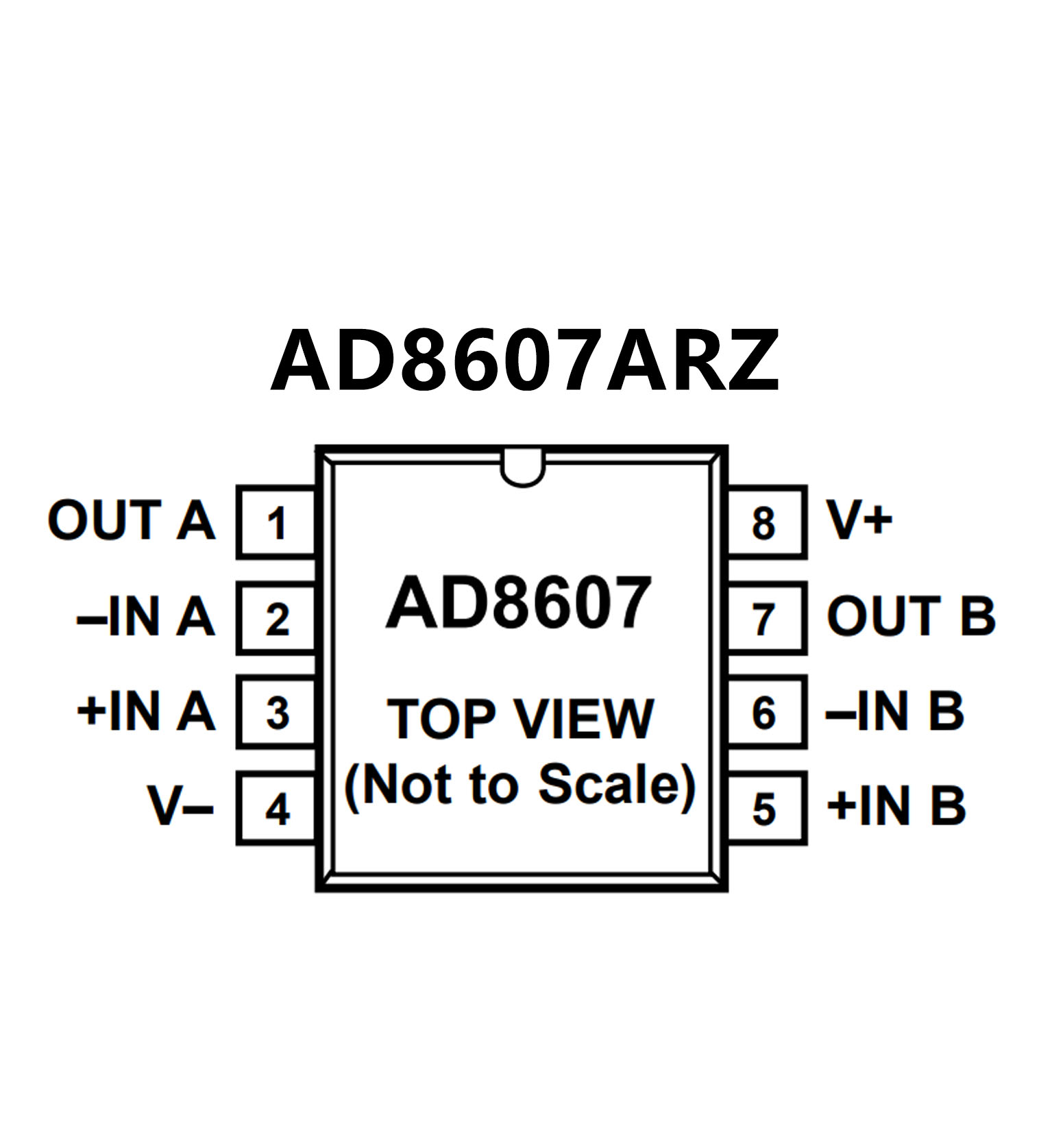

PIN CONFIGUTION
