Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier,SGM8554XTS14G Replace TLV4333IPWR.
SGM8554XTS14G
SGM8554XTS14G.pdf
SGM8554XTS14G.pdfFEATURES
• Low Offset Voltage: 20μV (MAX)
• Rail-to-Rail Input and Output Swing
• 2.5V to 5.5V Single-Supply Operation
• Voltage Gain: 145dB (TYP) at 5V
• PSRR: 110dB (TYP)
• CMRR: 105dB (TYP)
• Ultra Low Input Bias Current: 10pA
• Low Supply Current: 465μA/Amplifier (TYP)
• Overload Recovery Time: 60μs (at VS = 5V)
• No External Capacitors Required
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages

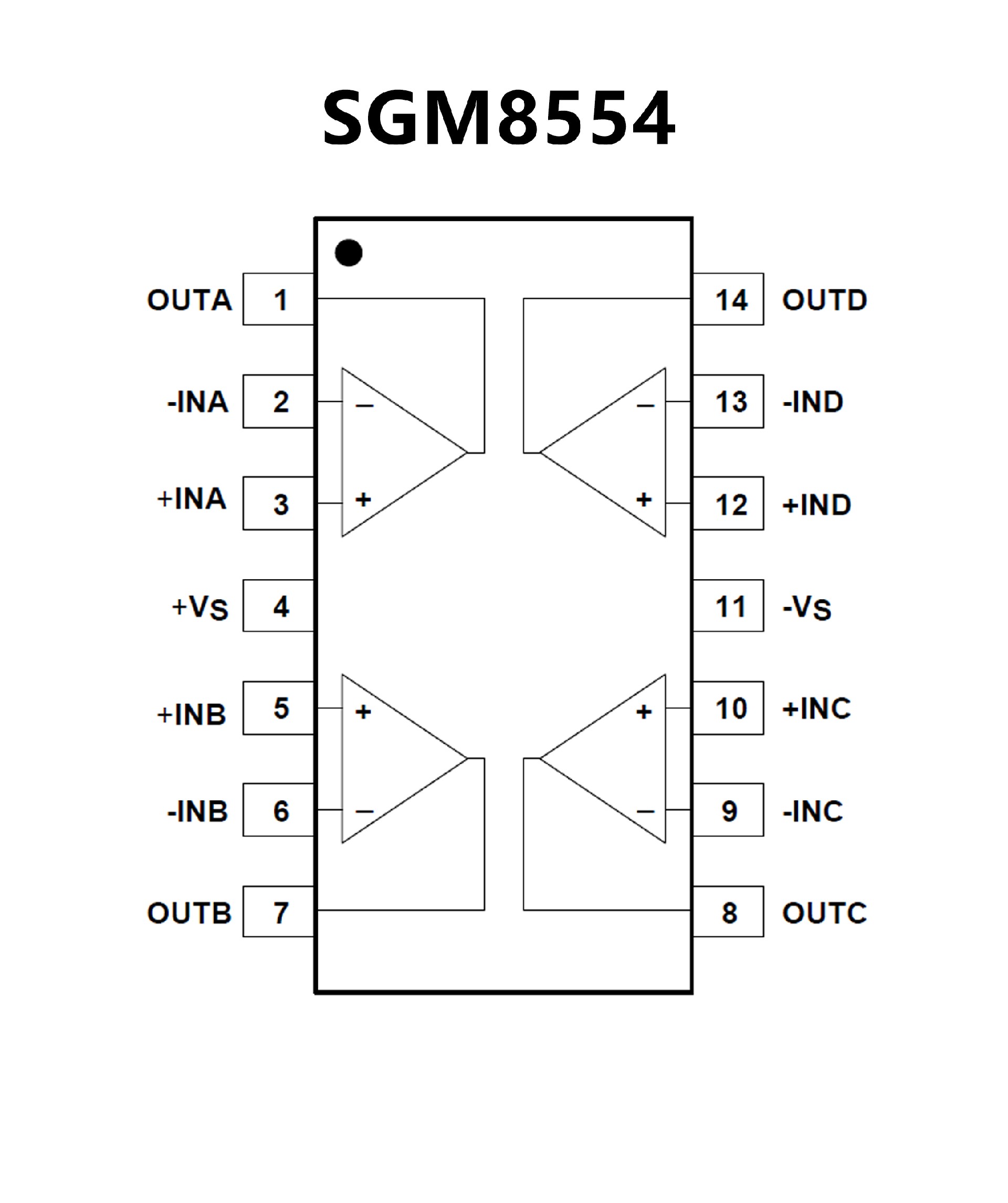

PIN CONFIGUTION
优势替代
FEATURES
• Unmatched Price Performance
• Low Offset Voltage: 2 μV
• Zero Drift: 0.02 μV/°C
• Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
• Quiescent Current: 17 μA
• Supply Voltage: 1.8 V to 5.5 V
• Rail-to-Rail Input/Output
• Internal EMI Filtering
• microSize Packages: SOT23, SC70

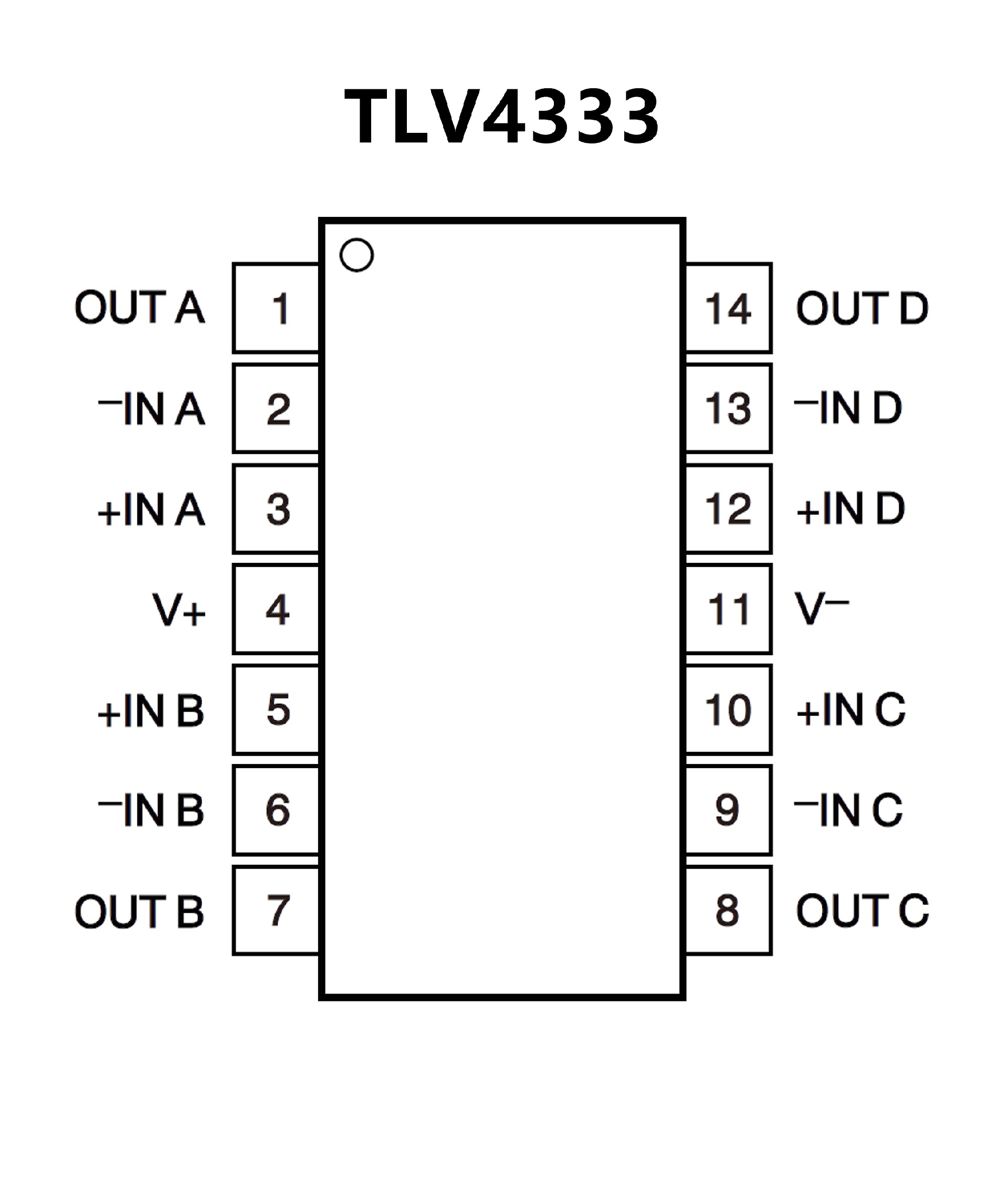

PIN CONFIGUTION
