• Low Offset Voltage: 90μV (MAX)

• Low Noise Density: 21nV/Hz at 1kHz

• Low Voltage Noise: 0.6μVP-P at 0.1Hz to 10Hz

• Gain-Bandwidth Product: 3.5MHz

• Slew Rate: 3V/μs

• Rail-to-Rail Input and Output Swing

• 2.5V to 5.5V Single-Supply Operation

• Voltage Gain: 133dB (TYP) at 5V

• High PSRR: 96dB (TYP)

• High CMRR: 98dB (TYP)

• Ultra Low Input Bias Current: 30pA

• Low Supply Current: 950μA/Amplifier (TYP)

• Overload Recovery Time: 40μs (at VS = 5V)

• No External Capacitors Required

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:

  SGM8555 Available in Green SOT-23-5,

  SOIC-8and MSOP-8

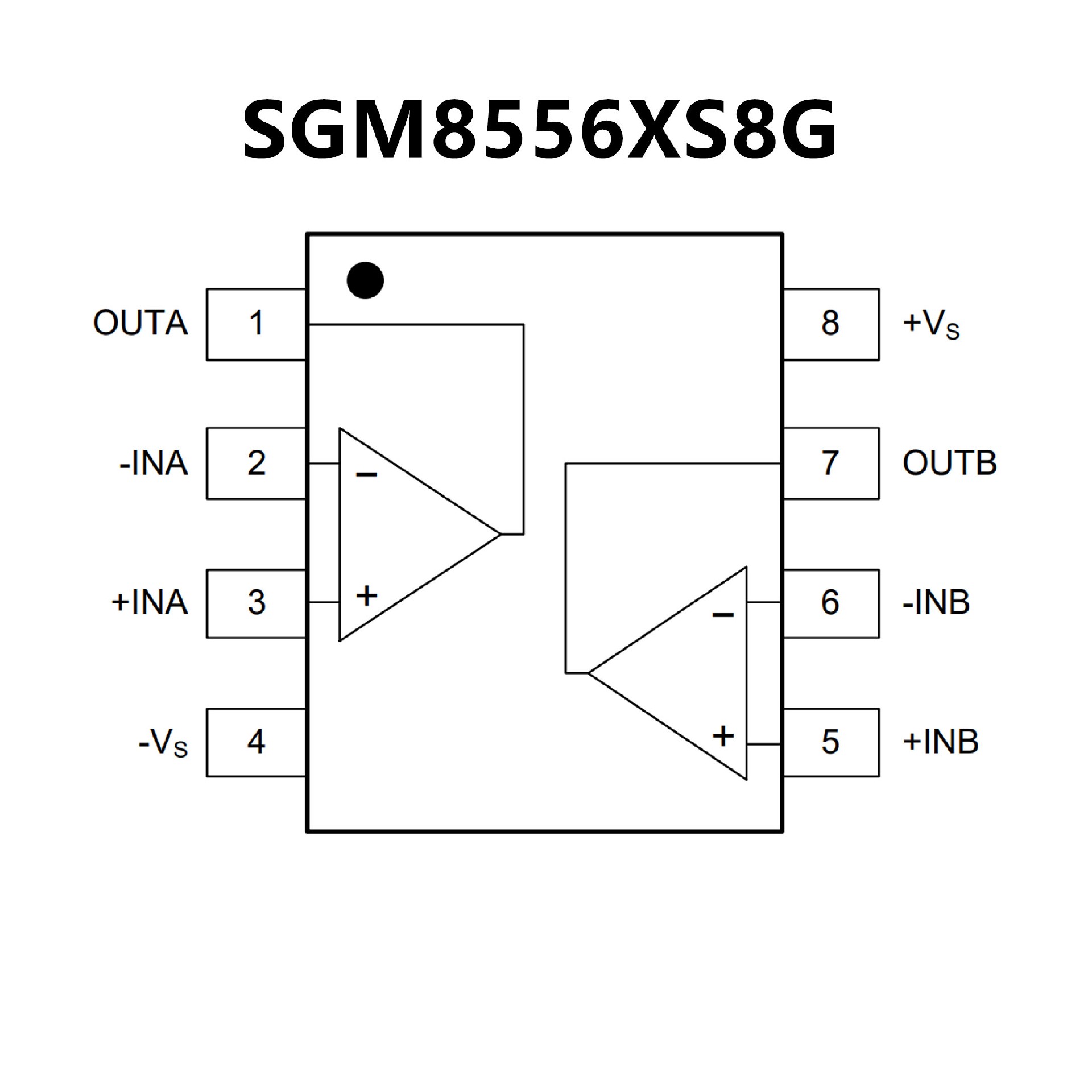

  SGM8556 Available in Green

  SOIC-8 and MSOP-8
