High Precision Operational Amplifier, Replace OPA335
SGM8557-1
SGM8557-1.pdf
SGM8557-1.pdfFEATURES
• 240mA Output Drive Capability
• Rail-to-Rail Output
• Low Input Offset Voltage: 5μV (MAX)
• Low Input Offset Voltage Drift: 27nV/℃ (TYP)
• Low Noise: 22nV/ Hz at 1kHz
• Over-Temperature Protection
• Supply Voltage Range: 2.7V to 5.5V
• Quiescent Supply Current: 1.2mA/Amplifier (TYP)
• Gain-Bandwidth Product: 15MHz
• High Slew Rate: 7V/μs
• Voltage Gain (RL = 2kΩ): 144dB
• Power Supply Rejection Ratio: 120dB
• No Phase Reversal for Overdriven Inputs

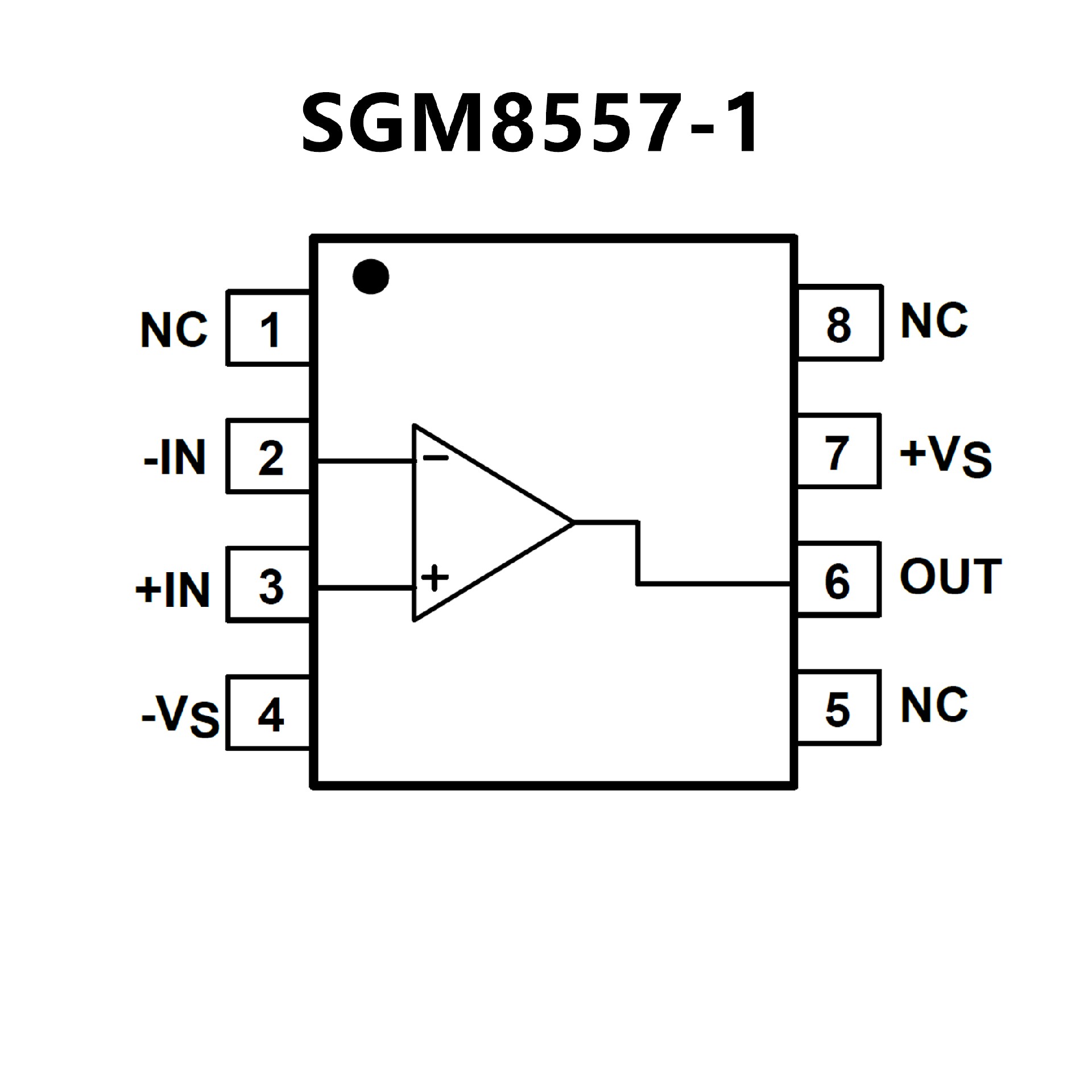

PIN CONFIGUTION
优势替代
FEATURES
• LOW OFFSET VOLTAGE: 5μV (max)
• ZERO DRIFT: 0.05μV/°C (max)
• QUIESCENT CURRENT: 285μA
• SINGLE-SUPPLY OPERATION
• SINGLE AND DUAL VERSIONS
• SHUTDOWN
• MicroSIZE PACKAGES

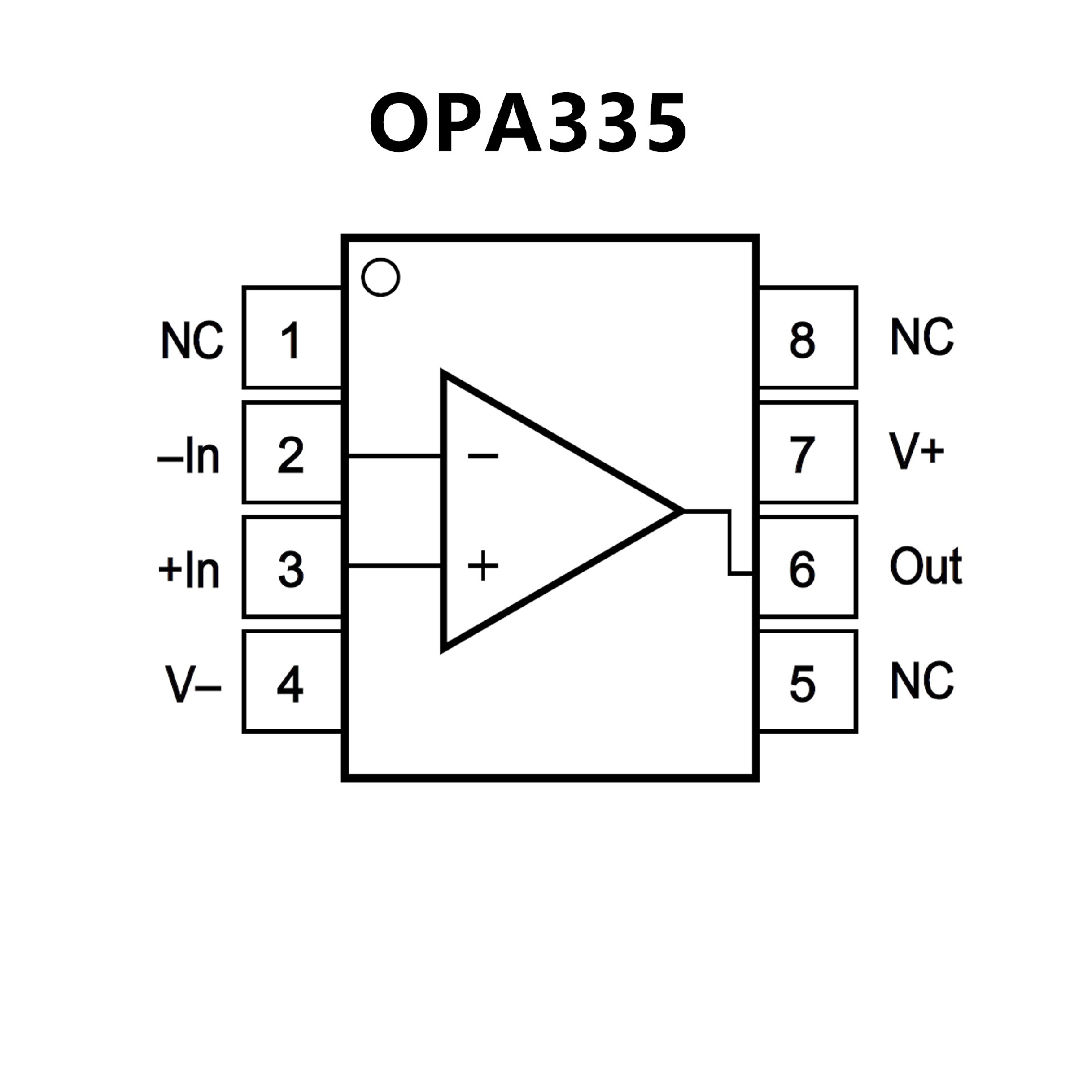

PIN CONFIGUTION
