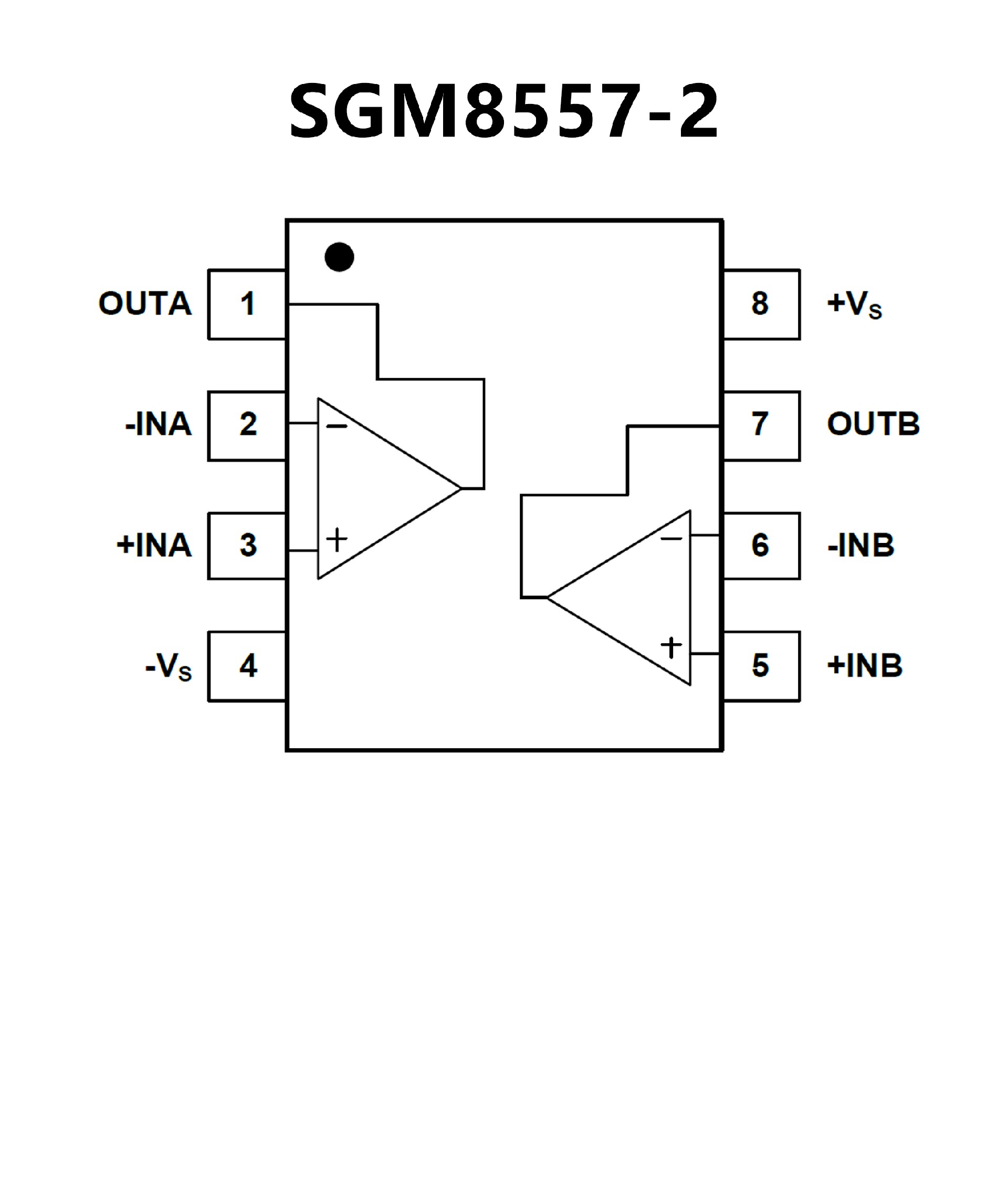

SGM8557-2XMS8G.pdf• Output Drive Capability: 235mA
• Low Input Offset Voltage: 5μV (MAX)
• Low Input Offset Voltage Drift: 20nV/℃ (TYP)
• Low Noise: 30nV/√Hz at 1kHz
• Gain-Bandwidth Product: 15MHz
• High Slew Rate: 7V/μs
• High Open-Loop Gain (RL = 2kΩ): 135dB
• Power Supply Rejection Ratio: 121dB
• Over-Temperature Protection
• No Phase Reversal for Overdriven Inputs
• Rail-to-Rail Input and Output
• Supply Voltage Range: 2.7V to 5.5V
• Quiescent Current: 2.4mA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green MSOP-8 Package

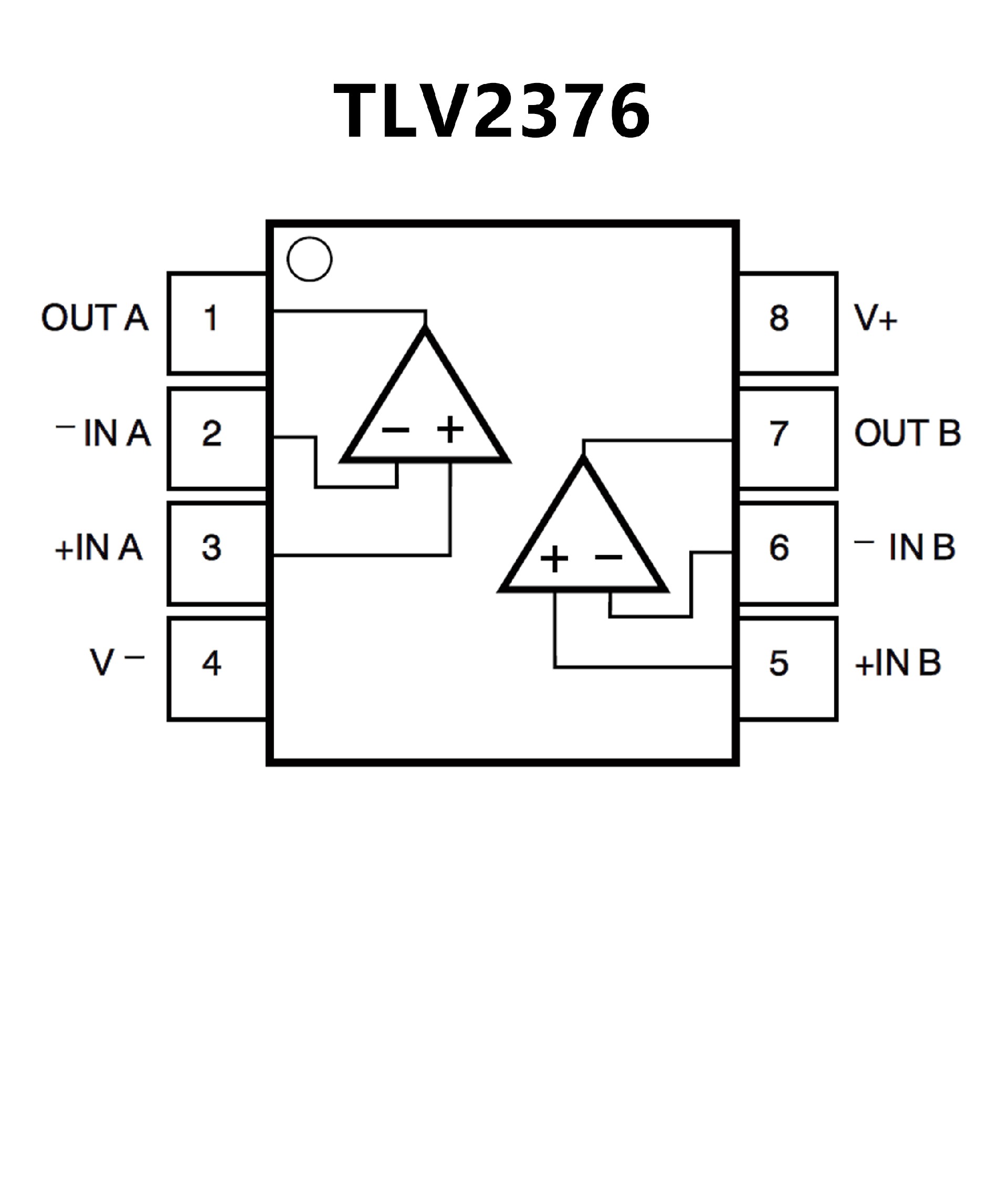

• Low Noise: 8 nV/√Hz at 1 kHz
• 0.1-Hz to 10-Hz Noise: 1.6 μVPP
• Quiescent Current: 815 μA (typical)
• Low Offset Voltage (typical):
Single and Dual Versions: 40 μV
Quad Version: 50 μV
• Gain Bandwidth Product: 5.5 MHz
• Rail-to-Rail Input and Output
• Single-Supply Operation
• Supply Voltage: 2.2 V to 5.5 V
• Industry-Standard Packages:
SOT-23, SOIC, VSSOP, TSSOP
