• 240mA Output Drive Capability

• Rail-to-Rail Output
• Low Input Offset Voltage: 5μV (MAX)

• Low Input Offset Voltage Drift: 27nV/℃ (TYP)

• Low Noise: 22nV/ Hz at 1kHz

• Over-Temperature Protection

• Supply Voltage Range: 2.7V to 5.5V

• Quiescent Supply Current:
1.2mA/Amplifier (TYP)

  0.3μA Shutdown Current for SGM8557-3/5 (TYP)

• Gain-Bandwidth Product: 15MHz

• High Slew Rate: 7V/μs

• Voltage Gain (RL = 2kΩ): 144dB

• Power Supply Rejection Ratio: 120dB

• No Phase Reversal for Overdriven Inputs

• Small Packaging:

  SGM8557-1 Available in Green SOIC-8, MSOP-8,

  and SOT-23-5 Packages

  SGM8557-2 Available in a Green

  SOIC-8 Package

  SGM8557-3 Available in Green SOIC-8 and

  SOT-23-6 Packages

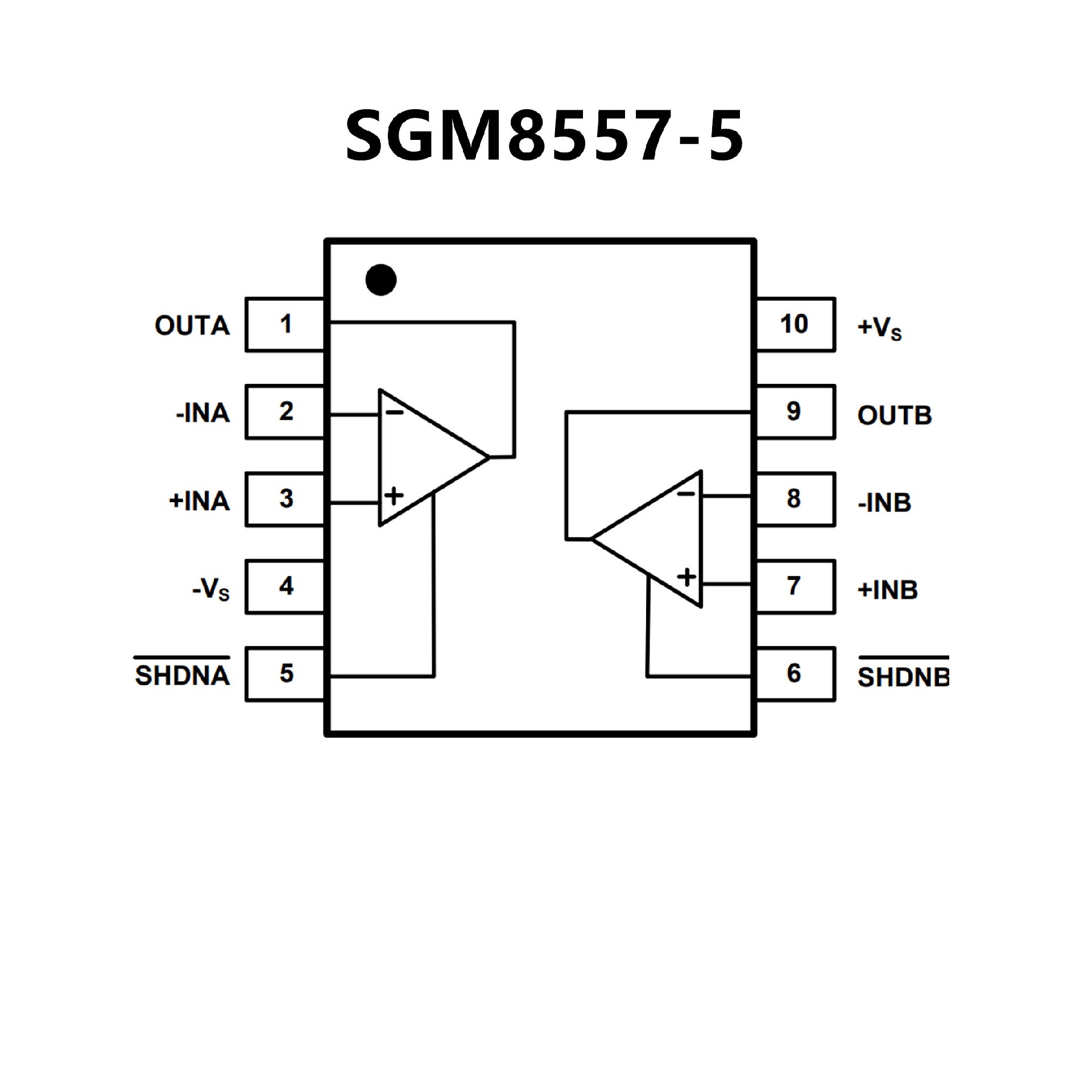

  SGM8557-5 Available in a Green MSOP-10 Package
