15MHz, High Output Drive, High Precision, Low Noise Operational Amplifier, SGM85572 P2P AD8676.
SGM8557-2
SGM8557-2.pdf
SGM8557-2.pdfFEATURES
• 235mA Output Drive Capability
• Rail-to-Rail Output
• Low Input Offset Voltage: 5μV (MAX)
• Low Input Offset Voltage Drift: 20nV/℃ (TYP)
• Low Noise: 30nV/√Hz at 1kHz
• Over-Temperature Protection
• Supply Voltage Range: 2.7V to 5.5V
• Quiescent Supply Current: 2.4mA (TYP)
• Gain-Bandwidth Product: 15MHz
• High Slew Rate: 7V/μs
• High Open-Loop Gain (RL = 2kΩ): 135dB
• Power Supply Rejection Ratio: 121dB
• No Phase Reversal for Overdriven Inputs
• Available in a Green MSOP-8 Package
PIN CONFIGUTION
优势替代
FEATURES
• Very low voltage noise 2.8 nV/√Hz @ 1 kHz
• Rail-to-rail output swing
• Low input bias current: 2 nA maximum
• Very low offset voltage: 12 μV typical
• Low input offset drift: 0.6 μV/°C maximum
• Very high gain: 120 dB
• Wide bandwidth: 10 MHz typical

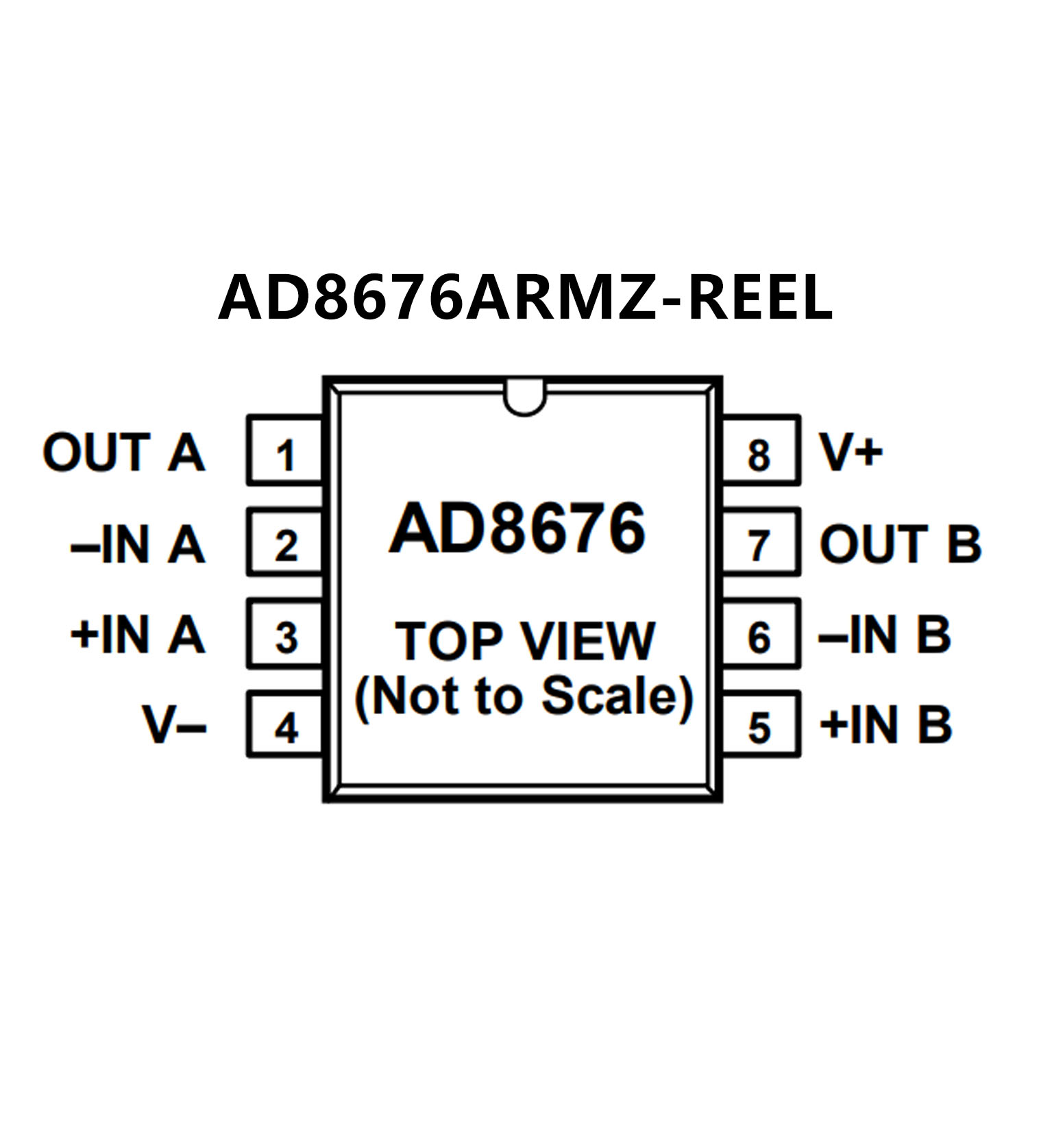

PIN CONFIGUTION
