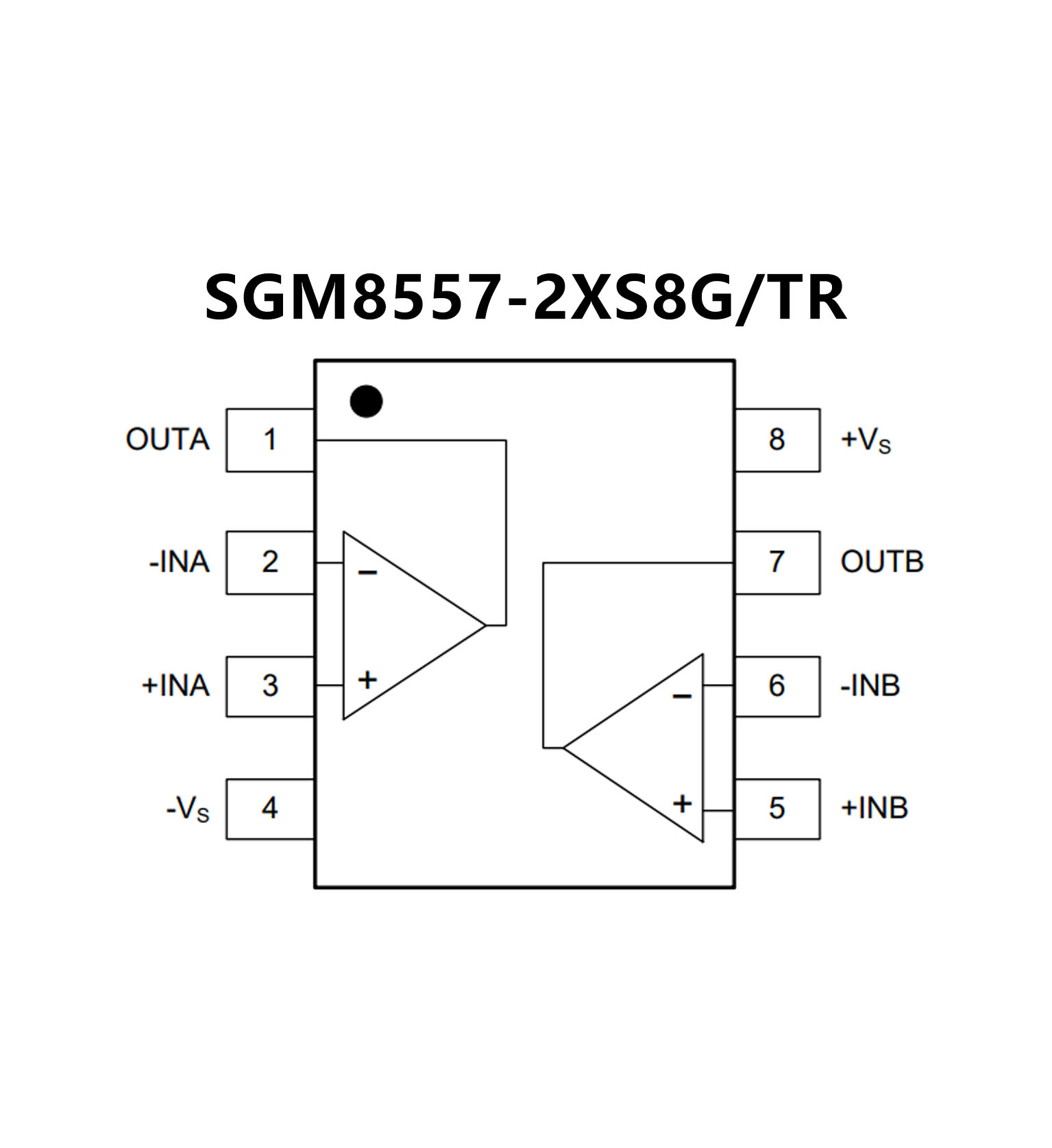

SGM8557-2.pdf• 235mA Output Drive Capability
• Rail-to-Rail Output
• Low Input Offset Voltage: 5μV (MAX)
• Low Input Offset Voltage Drift: 20nV/℃ (TYP)
• Low Noise: 30nV/√Hz at 1kHz
• Over-Temperature Protection
• Supply Voltage Range: 2.7V to 5.5V
• Quiescent Supply Current: 2.4mA (TYP)
• Gain-Bandwidth Product: 15MHz
• High Slew Rate: 7V/μs
• High Open-Loop Gain (RL = 2kΩ): 135dB
• Power Supply Rejection Ratio: 121dB
• No Phase Reversal for Overdriven Inputs
• Available in a Green MSOP-8 Package

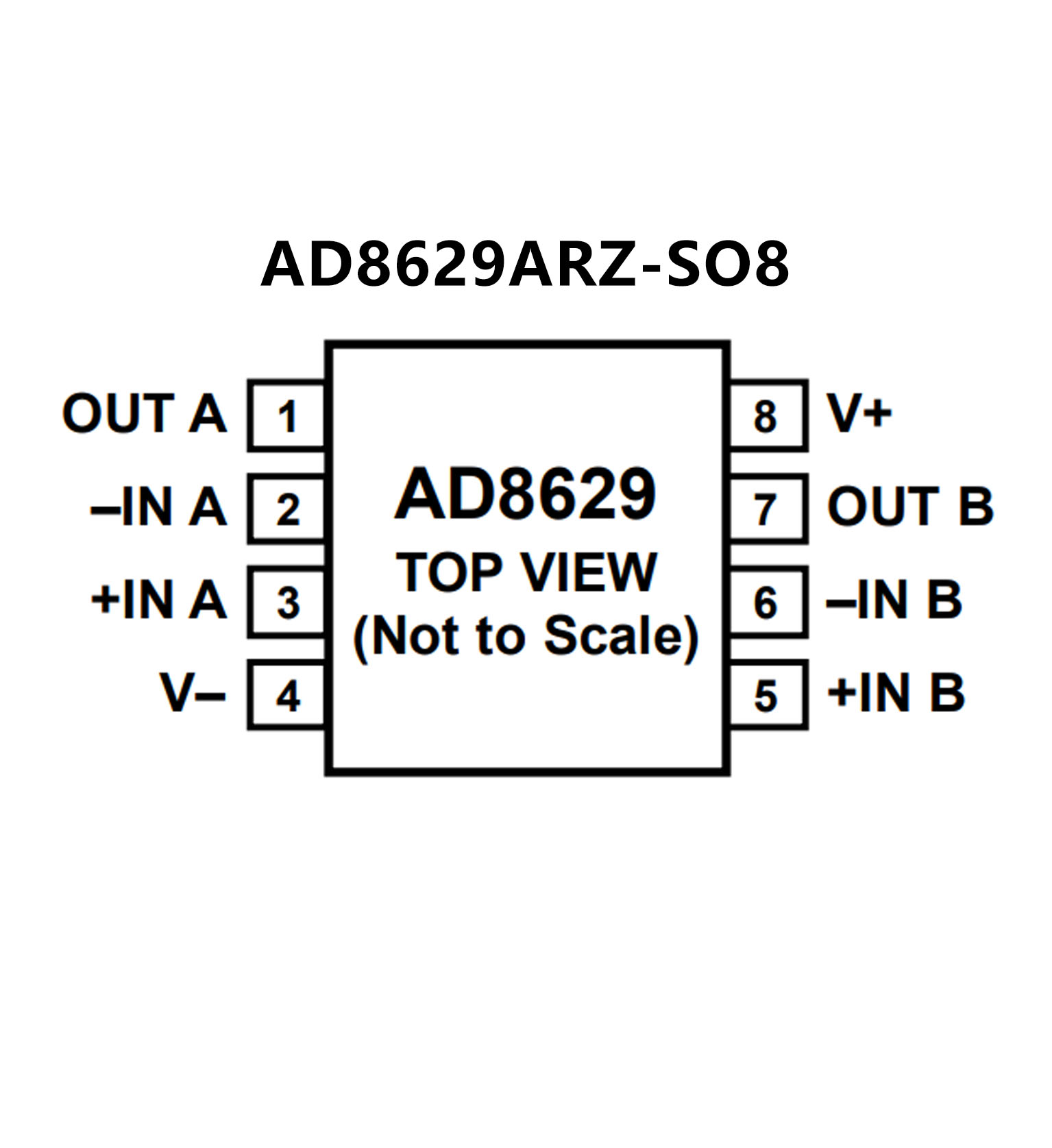

• Lowest auto-zero amplifier noise
• Low offset voltage: 1 μV
• Input offset drift: 0.002 μV/°C
• Rail-to-rail input and output swing
• 5 V single-supply operation
• High gain, CMRR, and PSRR: 130 dB
• Very low input bias current: 100 pA maximum
• Low supply current: 1.0 mA
• Overload recovery time: 50 μs
• No external components
• required Qualified for automotive applications
